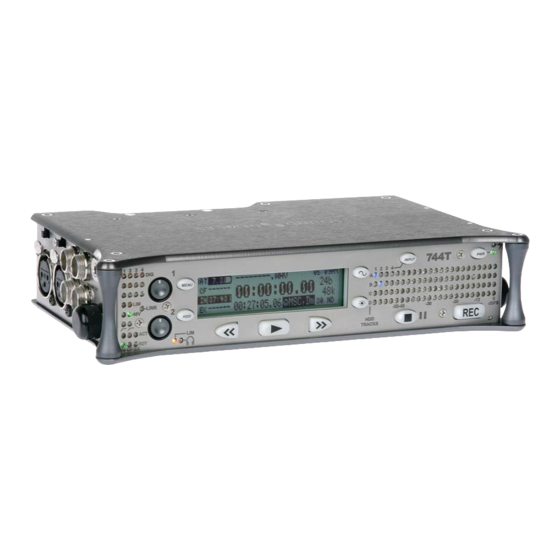

744T

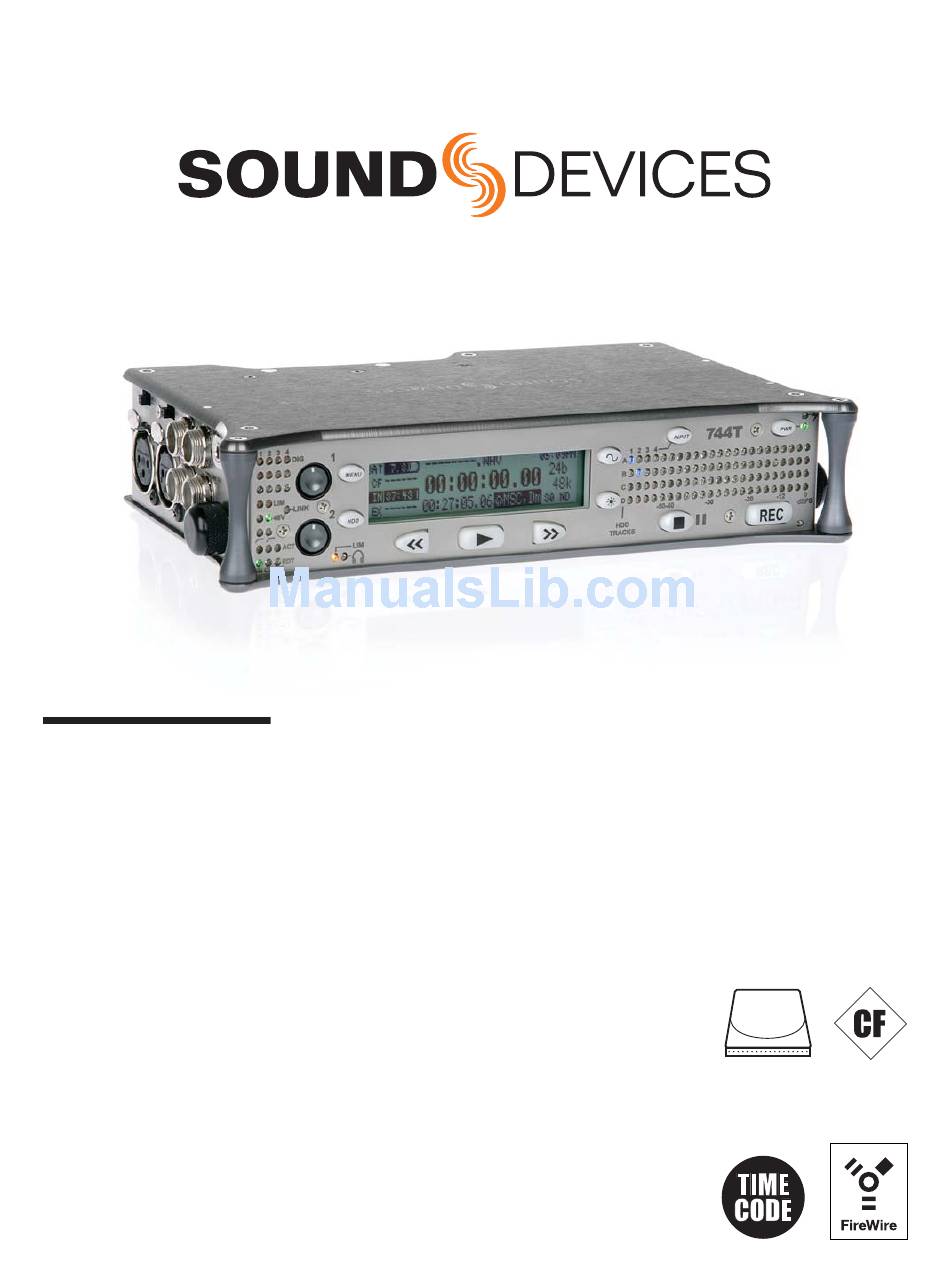

High Resolution Digital Audio Recorder with Time Code
User Guide and Technical Information
fi rmware rev. 2.09
Sound Devices, LLC
300 Wengel Drive • Reedsburg, WI • USA
+1 (608) 524-0625 • fax: +1 (608) 524-0655
Toll-Free: (800) 505-0625
www.sounddevices.com
1.8" HDD
2.5" HDD
