HPA TA 60 Owner's Manual

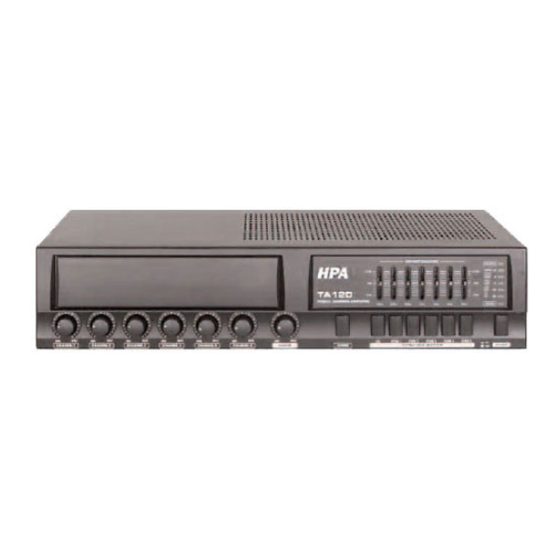

Multi-function commercial amplifier
Hide thumbs

Advertisement

Table of Contents

TA 60
TA 120
Owner's Manual
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
CHANNEL 5
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
CHANNEL 5
+12dB
0dB
-12dB
PUBLIC ADDRESS AMPLIFIER
125Hz
250Hz
MIN
MAX
MIN
MAX
ALL
ZONE 1
CHANNEL 6
CHIME
+12dB
0dB
-12dB
PUBLIC ADDRESS AMPLIFIER
125Hz
250Hz
MIN
MAX
MIN
MAX
ALL
ZONE 1
CHANNEL 6
CHIME
GRAPHIC EQUALIZER
PROTECT
+3
+12dB
0
0dB
-4
-10
-12dB
-20
POWER
500Hz
1kHz
2kHz
4kHz
8kHz
ZONE 2
ZONE 3
ZONE 4
ZONE 5
ON
OFF
GRAPHIC EQUALIZER
PROTECT
+3
+12dB
0
0dB
-4
-10
-12dB
-20
POWER
500Hz
1kHz
2kHz
4kHz
8kHz
ZONE 2
ZONE 3
ZONE 4
ZONE 5
ON
OFF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA 60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HPA TA 60

Summary of Contents for HPA TA 60

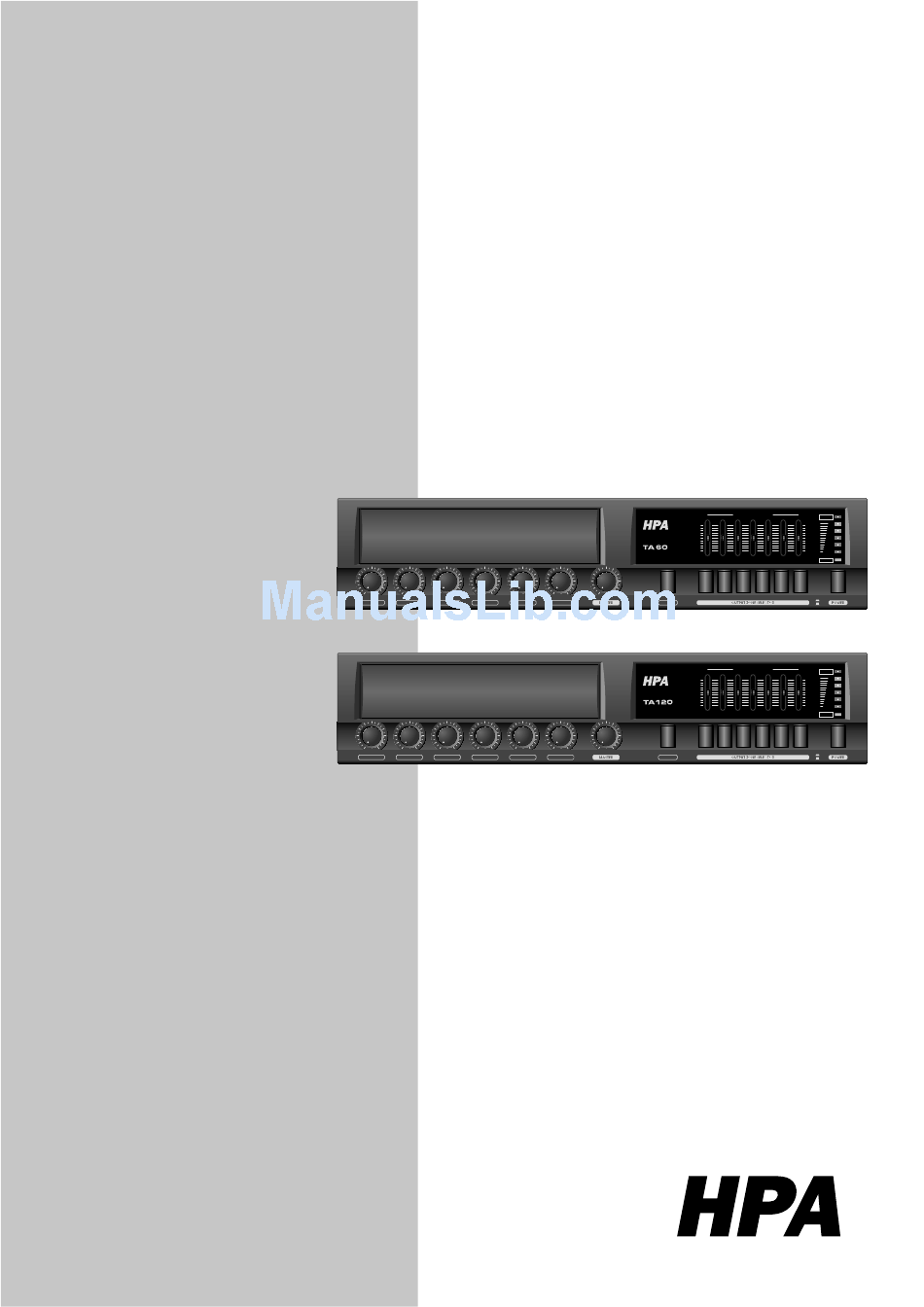

  • Page 1 Owner’s Manual GRAPHIC EQUALIZER PROTECT +12dB +12dB -12dB -12dB TA 60 PUBLIC ADDRESS AMPLIFIER POWER 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4...

  • Page 3: Table Of Contents

    Table of Contents TA-60 / TA-120 Table of Contents Introductions ..................2 Features ....................3 Front Panel Controls ................4 Rear Panel Contuols ................5 Setup ....................6 Wiring Guide ..................7 Connections ..................9 Operations ..................12 Applications ..................15 Block diagram ................

  • Page 4: Introductions

    CHANNEL 5 CHANNEL 6 CHIME TA 60 / 120 Welcome Congratulation and thank you for the purchasing TA series, a multi-function commercial amplifi er. These amplifi ers are designed to provide a big impact in sound reproduction and to produce the best and highest quality audio at an affordable price.

  • Page 5: Features

    Features TA-60 / TA-120 Features The TA-60 and TA-120 are comprehensive, all-in-one mixer-amplifi er solutions for commercial and industrial applications.These low-cost units provide all necessary features in a simple build- ing-block format. * Six microphone or line inputs with 1/4-inch phone,XLR and RCA jacks. * Acceptable wide range input level.

  • Page 6: Front Panel Controls

    TA-60 / TA-120 Controls Front Panel controls GRAPHIC EQUALIZER PROTECT +12dB +12dB -12dB -12dB PUBLIC ADDRESS AMPLIFIER 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz POWER ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4 CHANNEL 5 CHANNEL 6...

  • Page 7: Rear Panel Controls

    Controls TA-60 / TA-120 Rear Panel controls 1. AC fuse. 2. Expansion ports ( AMP-IN/AMP-OUT/LINK-IN/LINK-OUT ). 3. M.O.H (Music On Hold) output and level control. 4. Pre-announce chime level control. 5. Gain controls for variable input level. 6. Phantom power and priority control switches. 7.

  • Page 8: Setup

    TA-60 / TA-120 Setups Setup Installation: CAUTION: Before you begin, make sure your mixer-amplifi er is disconnected from the power source, with the power switch in the “OFF” position and all level controls turned completely down (counterclockwise) You may stack mixer-amplifi ers without using a cabinet or you may place a single mixer-amplifi er on a surface with 12-inches (about 30cm) of air space around the unit for convection cooling.

  • Page 9: Wiring Guide

    Setups Wiring guide Choose input wire and connectors HPA recommends using pre-built or professionally wired balanced line,22 to 24 gauge cables. Figure shows connector pin assignments for wiring .The RCA input connections can also be used for unbalanced inputs. BALANCED LINE...
  • Page 10 Setups Choose output wire and connectors For the amplifi er output connectors,HPA recommends using pre-built or professionally wired, high-quality, and heavy gauge speaker wires.You may use EURO blocks for your output connec- tors.To prevent the possibility of short-circuits, wrap or otherwise insulate exposed loudspeaker cable connectors.

  • Page 11: Connections

    TA-60 / TA-120 Setups Connections INPUT: Connect microphones or balanced line-level sources to mixer-amplifi er balanced inputs. Set Gain volume accordingly. Connect unbalanced line-level signals to RCA input connectors. OUTPUT: Maintain proper polarity on output connectors. For each output channel, connect the output EURO block terminals to the loudspeaker Ioads. Use terminals marked (GND) and for a 4-ohm loudspeaker load, or use terminals marked...
  • Page 12 TA-60 / TA-120 Setups Speaker connection is shown in Figure. 4Ω Matching transformer 8Ω 8Ω [ How to connect speakers ] CAUTION : Never use both the Low-Z(4 ohms)and Hi-Z(25V, 70V and 100V) terminals at the same time [ Wrong connection ]...
  • Page 13 TA-60 / TA-120 Setups Typical input and output wiring is shown in Figure.

  • Page 14: Operations

    TA-60 / TA-120 Operations Operations External equipments connection By connecting a signal processor such as an equalizer or limiter between the mixer section (PR E-AMP OUT) and the power amplifi er section(AMP IN) of the TA series, signals can be tailored for desired sound output.
  • Page 15 TA-60 / TA-120 Operations Preannounce chime TA series mixer-amplifi er supply user selectable 4 kinds of preannounce chime. The way of set up is same as follow fi gure . [ Chime selection ] Figure shows default set in factory. You can move the position of jumper on the T3 of main PCB for changing pre-announce chime.
  • Page 16 TA-60 / TA-120 Operations Music On Hold Connect mixer-amplifi er MUSIC ON HOLD connector to music-on-hold input on telephone inter- face/PBX like telephone pager. Set MUSIC ON HOLD volume to proper level. TA series mixer-amplifi er supply two way of MUSIC ON HOLD function. When MUSIC ON HOLD slide switch is “INT”...

  • Page 17: Applications

    TA-60 / TA-120 Applications Applications E-MART OFFICE TELEPHONE OFFICE MUSIC ON HOLD RESTAURANT TELE-PAGER LADIES CLOTHING MUSIC SOURCE MAN CLOTHING TA-60 SPORTS GOODS TA-120 MISCELLANEOUS GOODS INFORMATION DESK GROCERY B1F PARKING CONTROL ROOM PARKING LOT...

  • Page 18: Block Diagram

    TA-60 / TA-120 Block diagrams Block diagrams...

  • Page 19: Specifi Cations

    TA-60 / TA-120 Specifi cations Specifi cations Performance TA-60 TA-120 Balanced Microphone Channels -50dB ± 3dB Balanced Line Channels -22dB ± 3dB Input Sensitivity for Balanced Remote Microphone Station -50dB ± 3dB full output at maxi- mum gain Balanced Telephone Paging -21dB ±...
