- Page 1 Owner’s Manual D300 D500 POWER D300 PROTECT CLIP PROFESSIONAL POWER AMPLIFIER SIGNAL CHANNEL 1 CHANNEL 2 POWER D500 PROTECT CLIP PROFESSIONAL POWER AMPLIFIER SIGNAL CHANNEL 1 CHANNEL 2...
- Page 2 WARNING...
-
Page 3: Table Of Contents
Table of Contents D300 / D500 Table of Contents Introduction ………………………………………………………… 2 Features ……………………………………………………………… 3 Front Panel Controls ………………………………………………… 4 Rear Panel Controls ………………………………………………… 5 Get Started …………………………………………………………… 6 Block Diagrams ……………………………………………..……… 9 Specifications ……………………………………………………… 10... -
Page 4: Introduction

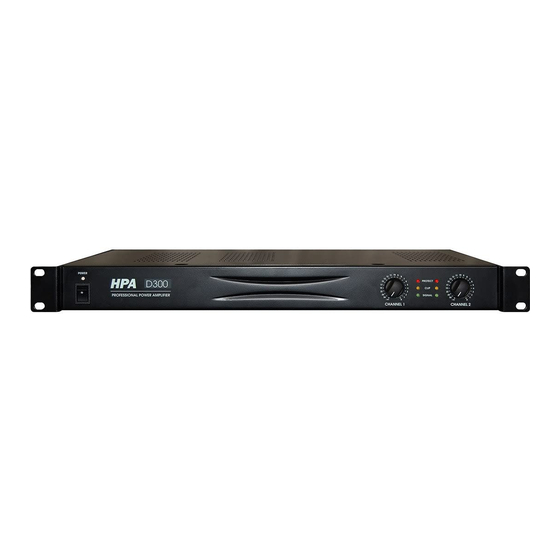

Introduction D300 / D500 Introduction POWER D300 PROTECT CLIP PROFESSIONAL POWER AMPLIFIER SIGNAL CHANNEL 1 CHANNEL 2 D300 / D500 CLASS-D POWER AMPLIFIER Welcome Congratulation and thank you for the purchasing D series power amplifiers. The D Series amplifiers define the standard for portable PA systems with unmatched performance, technology, affordability and enormously light weight. -
Page 5: Features
Features D300 / D500 Features • Compact size, High performance and lightweight with Class-D Technology. Integrated Peck limiters provide maximum output while protecting your speakers. • Various (XLR, 1/4” Phone, RCA) inputs ensure compatibility with any source. • 5-Way Binding Post, 4-Pole Speakon outputs ensure compatibility with any speaker •... -
Page 6: Front Panel Controls
Front Panel Controls D300 / D500 Front Panel Controls POWER D300 PROTECT CLIP PROFESSIONAL POWER AMPLIFIER SIGNAL CHANNEL 1 CHANNEL 2 1. Power Button Turns amplifier power on and off. Blue LED will illuminate when power is turned on. 2. Gain(Level) Controls Two black rotary level controls, One for each channel. -
Page 7: Rear Panel Controls
Rear Panel Controls D300 / D500 Rear Panel Controls INPUT SPEAKER OUTPUT CONNECT 1 BALANCED UNBALANCED BALANCED CH 2 CH 1 CH 1 CH 2 CH 1 BRIDGE BRIDGE PROFESSIONAL POWER AMPLIFIER min. 8 CH 2 STEREO CONNECT 2 CH 2... -
Page 8: Get Started
D300 / D500 Get started Get Started Stereo Bypass Mode This is the default mode the amplifier is set to from the factory. 1. Connect Left/Right signal source to Channel 1 and Channel 2 using either the XLR, 1/4 Inch or RAC connectors. - Page 9 D300 / D500 Get started Bridge-Mono Mode Bridged-Mono Mode delivers The power of both amp channels into a signal 8ohm load. 1.The Mode button should be located to “BRIDGE”. 2.Connect signal source to Channel 1 only using the Channel 1’s XLR, 1/4 Inch or RAC connectors.
-
Page 10: Parallel Mode
Get started D300 / D500 Parallel Mode When using the Parallel Mode, the amplifier is configured to use the input on Channel 1 only. The amplifier allows two different output level of each channels individually by potential meter on the front panel. -
Page 11: Block Diagrams
Block diagrams D300 / D500 Block diagrams... -
Page 12: Specifications
Specifications D300 / D500 Specifications D-300 D-500 Rated Output Power Stereo Output @4ohms, THD 1.0% 150 Watts X 2 250 Watts X 2 Bridge Mono Output @8ohms, THD 1.0% 300 Watts 500 Watts Input Sensitivity for full output at maximum gain Balanced XLR Input(Impedance 20kohms) +4dBu ±... - Page 13 D300 / D500...
- Page 14 D300 / D500...
- Page 15 D300 / D500...
