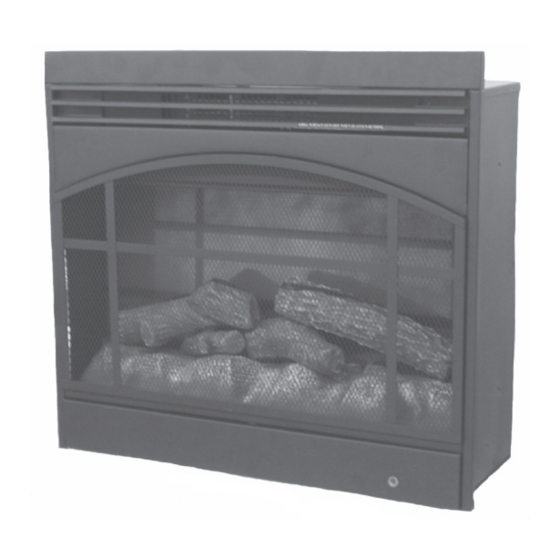

ELECTRIC FIREPLACE/INSERT
SAFETY INFORMATION AND INSTALLATION MANUAL
FOR MODELS CGEF26, CEF26, VEF26 and EV26L
Read these instructions completely before beginning
installation. Failure to follow them could cause a heater
malfunction resulting in serious injury and/or property
damage.
WARNING: All electric heaters have hot and arcing or
sparking parts inside. Do not use it in areas where gaso-
line, paint or flammable liquids are or are stored.
WARNING: This heater is tested and listed for use only
with the optional accessories listed in these instruc-
tions. Use of optional accessories not specifically
tested for this heater could void the heater warranty
and/or result in a safety hazard.
This fireplace meets the construction and safety stan-
dards of H.U.D. for application in manufactured homes
when installed according to these instructions.
Save this manual for future reference.
For more information, visit www.desatech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CGEF26 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Desa CGEF26

  • Page 1 ELECTRIC FIREPLACE/INSERT SAFETY INFORMATION AND INSTALLATION MANUAL FOR MODELS CGEF26, CEF26, VEF26 and EV26L Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage. WARNING: All electric heaters have hot and arcing or sparking parts inside.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information ..........2 Operating Instructions ......... 7 Listing Approvals ..........3 Cleaning and Maintenance ........8 Product Dimension Specifications ....... 3 Technical Service ..........10 Locating Fireplace ..........4 Replacement Parts ..........10 Unpacking and Testing Fireplace ......4 Troubleshooting ..........11 Installation ............
  • Page 3: Specifications

    United States. All components are UL or CSA safety certified. If you need assistance during installation, please con- tact your local dealer or the DESA Heating Products Technical Services Department at 1-866-672-6040. Description: 26" Fireplace/Insert...
  • Page 4: Locating Fireplace

    LOCATING FIREPLACE Figure 3 illustrates a variety of ways the heater may be located in a room. The heater may be installed directly on the floor, carpet or raised on a hearth. WARNING: Due to high tem- peratures, this heater should be located out of traffic.
  • Page 5: Installation

    LOCATING FIREPLACE CAUTION: Provide adequate Continued clearances around the air open- FRAMING ings and adequate accessibility Figure 4 shows a typical framing of this heater us- clearances for servicing and ing combustible materials. All required clearances proper operations. to combustibles must be adhered to. Header height is measured from the base of the heater.
  • Page 6 INSTALLATION WARNING: The solid fuel/gas Continued fireplace has been converted for use with an electric insert and WARNING: If the informa- cannot be used for original fuels tion in these instructions is unless all original parts have not followed exactly, a fire or been replaced and the fireplace explosion may result causing has been reapproved by the au-...
  • Page 7: Finishing

    FINISHING 1. Plug in your electric fireplace. 2. Main ON/OFF Power Switch and LED: Combustible Finishing Material: Materials This switch is located on the right side of made of or surfaced with wood, compressed paper, the control panel. The power LED will plant fibers, plastics or any material capable of light up when the unit is on (see Figure 5).
  • Page 8: Cleaning And Maintenance

    OPERATING CLEANING AND INSTRUCTIONS MAINTENANCE Continued WARNING: Always discon- 6. The HEATER button activates the heater, nect power and allow the heater The heater is pre-set to the following to cool before performing any temperatures: cleaning, maintenance or reloca- HI will shut off when room reaches approxi- mately 86°...
  • Page 9: Bulb Replacement

    CLEANING AND MAINTENANCE Continued BULB REPLACEMENT WARNING: The halogen light bulbs in your unit can become extremely hot. Allow at least 10 minutes between turning off the heater and removing the light bulbs to avoid accidental burns. There are a total of 6 halogen light bulbs (type GX6.35 rated 120 volts, 20 watts or 35 watts) in your unit.
  • Page 10: Technical Service

    1-866-672-6040. When calling please have your ready model and serial numbers of your heater ready. • model number of your heater You can also visit DESA Heating Productsʼ techni- • the replacement part number cal services web site at www.desatech.com. www.desatech.com...
  • Page 11: Troubleshooting

    TROUBLESHOOTING WARNING: Turn off appliance and let cool before servicing. Only a qualified service person should service and repair heater. OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Fireplace turns off and will not 1. Fireplace has overheated 1. Reset switch by turning main turn on and safety devise has cause power switch off and waiting...
  • Page 12: Warranty Information

    LIMITED WARRANTY ELECTRIC FIREPLACE/INSERT DESA Heating Products warrants this product to be free from defects in materials and components for one (1) year from the date of first purchase (excluding bulbs and fuses), provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions.
