UNVENTED (VENT-FREE) GAS FIREPLACE
OWNER'S OPERATION AND INSTALLATION MANUAL
CGEFP33NRC, CGEFP33PRC, LMFP33NRC AND LMFP33PRC
REMOTE CONTROL GAS FIREPLACE SySTEMS
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
For more information, visit www.desatech.com

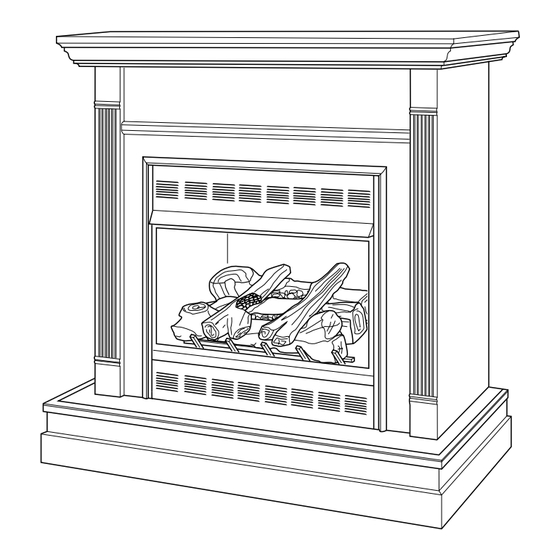

Shown with
optional cabinet
mantel and hearth
base accessories.
Patent Pending
Advertisement
Table of Contents
Related Manuals for Desa CGEFP33NRC
Summary of Contents for Desa CGEFP33NRC
- Page 1 Patent Pending CGEFP33NRC, CGEFP33PRC, LMFP33NRC AND LMFP33PRC REMOTE CONTROL GAS FIREPLACE SySTEMS WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
TAbLE OF CONTENTS Safety ..............2 Troubleshooting ..........26 Product identification ........... 4 Specifications ............ 30 Local Codes............4 Wiring Diagram ..........30 Unpacking............5 Technical Service..........30 Product Features ..........5 Replacement Parts ..........30 Air for Combustion and Ventilation ...... 5 Service Hints ............. - Page 3 SAFETy Do not place clothing or other Continued flammable material on or near the appliance. Never place any DANGER: Carbon monoxide objects on the heater. poisoning may lead to death! Fireplace and screen become Carbon Monoxide Poisoning: Early signs very hot when running fireplace. of carbon monoxide poisoning resemble the Keep children and adults away flu, with headaches, dizziness or nausea.
-
Page 4: Product Identification
SAFETy PRODUCT Continued IDENTIFICATION 4. This fireplace shall not be installed in a bedroom or bathroom. 4-Piece 5. Do not use this fireplace as a wood-burn- Log Set ing fireplace. Use only the logs provided with the fireplace. 6. Do not add extra logs or ornaments such as pine cones, vermiculite or rock wool. -
Page 5: Unpacking
4. Remove fireplace hood from carton insert. following instructions to insure 5. Check heater for any shipping damage. proper fresh air for this and If heater is damaged call DESA Heating, other fuel-burning appliances LLC at 1-866-672-6040 for replacement in your home. - Page 6 AIR FOR COMbUSTION whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m per kw) of the ag- AND VENTILATION gregate input rating of all appliances installed Continued in that space and an unconfined space as a Exhaust fans, fireplaces, clothes dryers and space whose volume is not less than 50 cubic fuel burning appliances draw air from the house...
- Page 7 AIR FOR COMbUSTION vENTILATION AIR AND VENTILATION Ventilation Air From Inside Building This fresh air would come from an adjoining Continued unconfined space. When ventilating to an Direct-vent draws combustion air from the adjoining unconfined space, you must provide outdoors and vents to the outdoors. two permanent openings: one within 12"...
-
Page 8: Installation
INSTALLATION Note: Your fireplace is designed to be used in zero clearance installations. Wall or framing NOTICE: This heater is intended material can be placed directly against any for use as supplemental heat. exterior surface on the rear, sides or top of your fireplace, except where standoff spacers Use this heater along with your are integrally attached. - Page 9 INSTALLATION Continued Trim Hanging Screws Hanging Notches on Trim Assembled Trim Figure 5 - Installing Hood to Firebox Figure 7 - Attaching Trim to Fireplace ASSEMBLING AND ATTACHING INSTALLATION CLEARANCES BLACK TRIM WARNING: Maintain the IMPORTANT: If you are recessing the firebox in a wall, do not attach trim at this time.
- Page 10 INSTALLATION 7. Break off nailing flanges (see Figure 11) with hammer or pliers. Continued 8. Place cardboard or other protective mate- CONvENTIONAL FIREpLACE rial on top of hearth base. Carefully set INSTALLATION fireplace on protective material, with back of fireplace inside mantel opening. Conventional installation of this fireplace involves installing fireplace along with the 9.
- Page 11 INSTALLATION 2. If using blower, install duplex outlet to the right support bracket in the bottom of firebox Continued (see Figure 14). See Accessories, page 31. BUILT-IN FIREpLACE If not using blower, go to step 7. INSTALLATION 3. Route wires from electrical box through smallest hole in outer casing using strain Built-in installation of this fireplace involves relief fitting provided (see Figure 14).
- Page 12 INSTALLATION WARNING: Do not allow any Continued combustible materials to overlap 11. Plug electrical cord into electrical outlet the firebox front facing. installed in step 2 if using blower. 12. Carefully insert fireplace into rough IMPORTANT: Noncombustible materials such opening. as brick, tile, etc.
- Page 13 INSTALLATION Continued Mantel Shelf Wall board or facing material (above 10" firebox) may be of 8" combustible material, including decorative 6" mantel ornaments or " other similar projec- tions off of the facing material. Framing Material Noncombustible Material May Project Off this Surface above Firebox the Firebox...
- Page 14 INSTALLATION Continued For propane/LP units, the installer must contaminants. This keeps them from going supply an external regulator. The external into fireplace gas controls. If sediment trap regulator will reduce incoming gas pressure. is not installed or is installed wrong, fireplace You must reduce incoming gas pressure to may not run properly.
- Page 15 INSTALLATION Continued CONNECTING FIREpLACE TO GAS 7. Replace log base assembly back into fireplace. Feed flexible gas line into fire- SUppLY place base area while replacing log base Installation Items Needed assembly. Make sure the entire flexible • 5/16" hex socket wrench or nut-driver gas line is in fireplace base area.
- Page 16 INSTALLATION Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa) Continued 1. Close equipment shutoff valve (see Fig- CHECKING GAS CONNECTIONS ure 22). 2. Pressurize supply piping system by either WARNING: Test all gas pip- opening propane/LP supply tank valve ing and connections, internal for propane/LP gas or opening main gas and external to unit, for leaks...
- Page 17 INSTALLATION LMFP33NRC and LMFP33PRC Models Each log is marked with a number. These Continued numbers will help you identify the log when pRESSURE TESTING FIREpLACE GAS installing. It is very important to install these CONNECTIONS logs exactly as instructed. Do not modify logs. 1.
- Page 18 Figure 28 - Installing Crossover Log (#4) U-shaped (Base may vary from illustration) Slot CGEFP33NRC and CGEFP33PRC Models Figure 30 - Installing Middle Log (#2) 1. Locate pegs on bottom of back log (#1). (Base may vary from illustration) Slide these pegs into holes in grate base behind burner (see Figure 29).
- Page 19 INSTALLATION Battery Housing Cover Continued 4. Place left crossover log (#4) across logs #1, #2 and #3 fitting holes on bottom of log #4 onto pin on front and middle logs as shown in Figure 32. 5. Place right crossover log (#5) in the same manner on right side of logs (see Figure 32).
-
Page 20: Operation
OPERATION LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING • If fireplace has glass doors, WARNING: If you do not fol- never operate this heater with low these instructions exactly, glass doors closed. If you op- a fire or explosion may result erate heater with doors closed, causing property damage, per- heat buildup inside fireplace... - Page 21 OPERATION 9. Slightly push in and turn control knob coun- terclockwise to the ON position. Continued 10. Press the on/off key on the remote control 3. Set remote selector switch in the AUTO to turn on appliance main burner. Wait at position (see Figure 36).
- Page 22 OPERATION OpERATING REMOTE CONTROL Continued WARNING: Fireplace can HAND-HELD turn on suddenly. Keep away REMOTE OpERATION from burner. BATTERIES After lighting pilot, let pilot flame burn for about one minute. Slide remote selector switch to WARNING: Make sure your REMOTE position. You can now turn the selector switch is in OFF posi- burner on and off with the remote.
- Page 23 OPERATION To activate this function, press THERMOSTAT button until the word SMART appears to the Continued right of temperature bulb graphic on display. FLAME HEIGHT Use UP/DOWN arrow button to set desired This function allows you to control the height room temperature.
-
Page 24: Inspecting Burners
INSPECTING bURNERS MAIN BURNER Periodically inspect all burner flame holes with Check pilot flame pattern and burner flame the fireplace running. All slotted burner flame patterns often. holes should be open with yellow flame present. pILOT FLAME pATTERN All round burner flame holes should be open Figure 47 shows a correct pilot flame pattern. -
Page 25: Cleaning And Maintenance
CLEANING AND 4. Check injector holder located at the end of burner tube again. Remove any large MAINTENANCE particles of dust, dirt, lint or pet hair with a soft cloth or vacuum cleaner nozzle. WARNING: Turn off fireplace 5. Blow air into the primary air holes on the and let cool before cleaning. -
Page 26: Troubleshooting
TROUbLEShOOTING WARNING: Turn off heater and let cool before servicing. Only a qualified service person should service and repair heater. CAUTION: Never use a wire, needle or similar object to clean ODS/pilot. This can damage ODS/pilot unit. Note: All troubleshooting items are listed in order of operation. OBSERvED pROBLEM pOSSIBLE CAUSE REMEDY... - Page 27 TROUbLEShOOTING Continued OBSERvED pROBLEM pOSSIBLE CAUSE REMEDY ODS/pilot lights but flame 1. C o n t r o l k n o b n o t f u l l y 1. Press in control knob fully goes out when control knob pressed in is released 2.
- Page 28 TROUbLEShOOTING Continued OBSERvED pROBLEM pOSSIBLE CAUSE REMEDY Slight smoke or odor during 1. Not enough air 1. Check burner for dirt and initial operation debris. If found, clean burner (see Cleaning and Moisture/condensation no- Maintenance, page 25) ticed on windows 2.
- Page 29 TROUbLEShOOTING Continued WARNING: If you smell gas • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Fol- low the gas supplier’s instructions.
-
Page 30: Specifications
• for propane/LP unit, propane/LP gas supply serial numbers of your heater ready. may be low You can also visit DESA Heating, LLC’s web You may feel your gas pressure is too low. If site at www.desatech.com. so, contact your local gas supplier. -
Page 31: Accessories
Dentil Molding dealer. If they can not supply these accessories CMA306FA - Oak Finished, Traditional call DESA Heating, LLC at 1-866-672-6040 for with Dentil Molding information. You can also write to the address CMA312FB - Red Oak Finished, Classic listed on the back page of this manual. -
Page 32: Parts
PARTS MODELS CGEFP33NRC, CGEFP33PRC, LMFP33NRC AND LMFP33PRC CGEFP Log Set LMFP Log Set www.desatech.com 121308-01E... - Page 33 PARTS This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 30 of this manual. PART NO. DESCRIpTION QTY. 109072-01 Middle Log • • 111625-03 Middle Log • • 109073-01 Rear Log •...
- Page 34 PARTS FIREBOx CGEFP33NRC, CGEFP33PRC, LMFP33NRC AND LMFP33PRC www.desatech.com 121308-01E...
- Page 35 PARTS FIREBOx CGEFP33NRC, CGEFP33PRC, LMFP33NRC AND LMFP33PRC This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 30 of this manual. NO. PART NO. DESCRIpTION QTY. 101357-03 Top Outer Casing...
-
Page 36: Warranty
This is DESA Heating, LLC’s exclusive warranty, and to the full extent allowed by law; this express warranty excludes any and all other warranties, express or implied, written or verbal and limits the duration of any and all implied warranties, including warranties of merchantability and fitness for a particular purpose to one (1) year on new products and 30 days on factory reconditioned products from the date of first purchase.
