NTI RACKMUX KVM Drawer with NODEMUX Switch
Command Mode (Cont'd)
Function:
Sets scan time-out on
each port
Selects a specific port
Enters Search Mode and adds a character
to search string and selects the CPU's
name that matches best.
Selects the first port on the switch
Selects the last port on the switch
Display Help Menu
Switch to a selected port
Exit OSD Command Mode
The mouse can also be used to control the NODEMUX switch within the Command Mode menu.
• The mouse cursor can be moved to the Scan, Help, Broadcast, Timeout, Maintenance and Exit fields where the user
can then click on the left mouse button to perform that function.
• Ports listed on the screen can be selected by moving the cursor onto that port and clicking. Clicking twice on a
selected port will switch to that port and exit Command Mode.
• To change the displayed ports on the screen simply click on the up and down arrows located to the right of the port
names displayed.

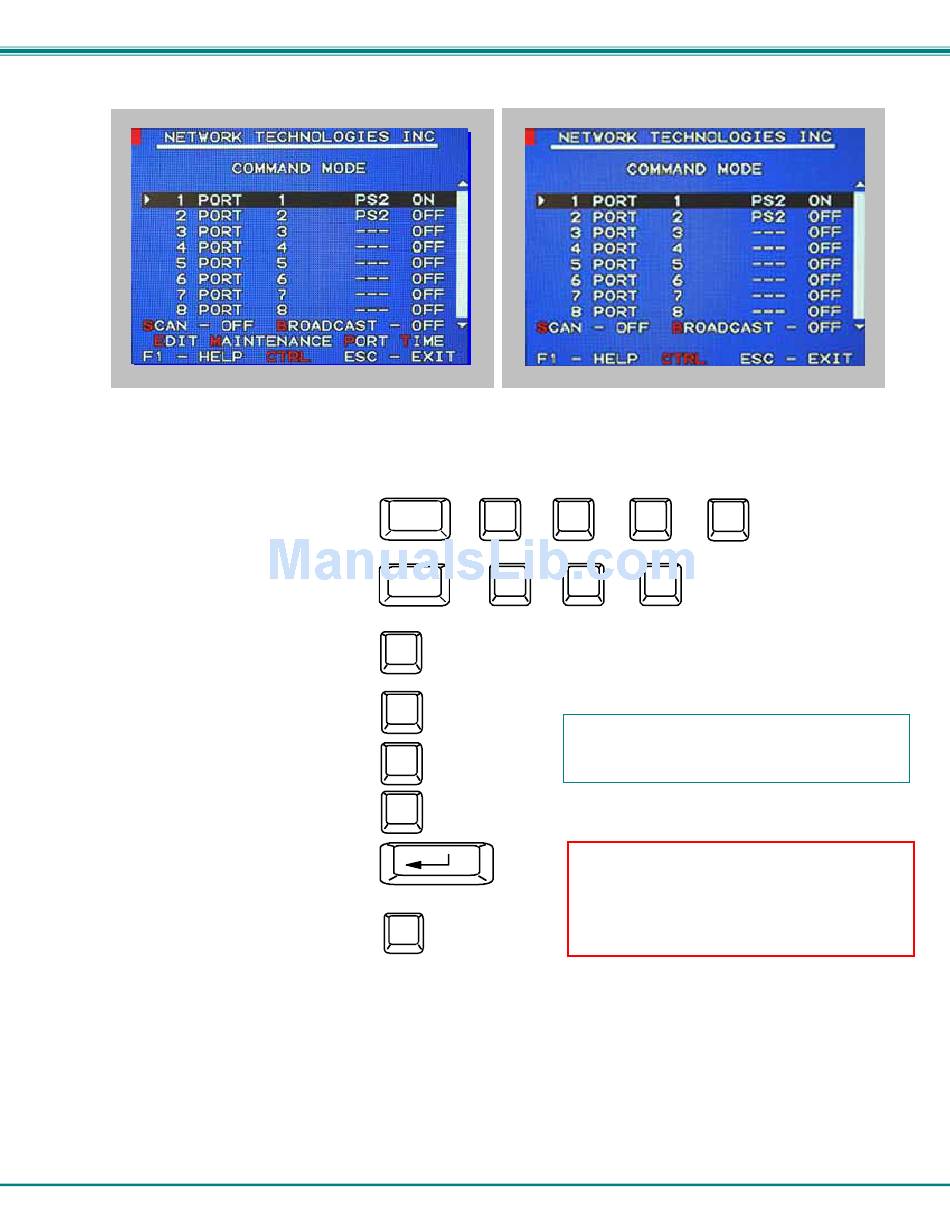

Figure 11- Command Mode menus
Keystroke:
T -
+
Ctrl
P -
+
Ctrl
A-Z
(Type any alphabetical or numeric character)
0-9
Home
End
F1
Enter
Esc
12
(0-2) (0-9) (0-9)
-
-
x x x
(0-9) (0-9)
-
(Pxx would be P01, P02, etc.)
x
x
Press <CTRL> while in the Command Mode menu
to display the Edit, Maintenance, Port, and Timeout
control features.
Note: The user must exit Command Mode to
type to a CPU.
To exit Command Mode, either hold down any
touch-switch on the front panel for more than 2
seconds, OR press <ESC> on the keyboard.
(xxx from 002 to 255. ie. t002
would set the time-out period
for 2 seconds)
