NTI RACKMUX KVM Drawer with NODEMUX Switch
When a standard user powers up the system a security screen will appear if security has been enabled by the
administrator. The user will need to login to the switch by following the instructions below for the USER LOGIN.
does not know the appropriate user name and password (setup by the administrator), contact the switch administrator for this
information. Once logged-in a user can follow the Command Mode functions described on page 9 to control the switch within the
limitations as determined by the administrator.

User Login Mode

User login mode requires a user to login with a user name and password from the list created by the administrator. This mode will
also disable use of the front panel until the user logs in.
Function:
Adds a character to the
user name/password
Removes previous character
from the user name/password
Submit user name/password
Exit USER LOGIN and return
to previous mode. This function
is only available if security is
not currently active.
If the password submitted is incorrect, the user will not
be able to proceed.
If the password submitted is correct, the user will
proceed to Normal Mode.

Additional Modes Available With Security

The three modes that follow are only available if the administrator is logged in.

Administration Mode

To enter the Administration Mode menu press <A> from the Maintenance Mode menu (page 15).
Administration Mode allows the administrator to use the following functions:
Function:
Configure switch- for application
and RS232 communication
Change the administrator's
password
Disable security
Update User Name List
Keystroke:
A-Z
(Type any alphabetical or numeric character)
0-9
Backspace
Enter
Esc
Keystroke:
W
C
S
U
8

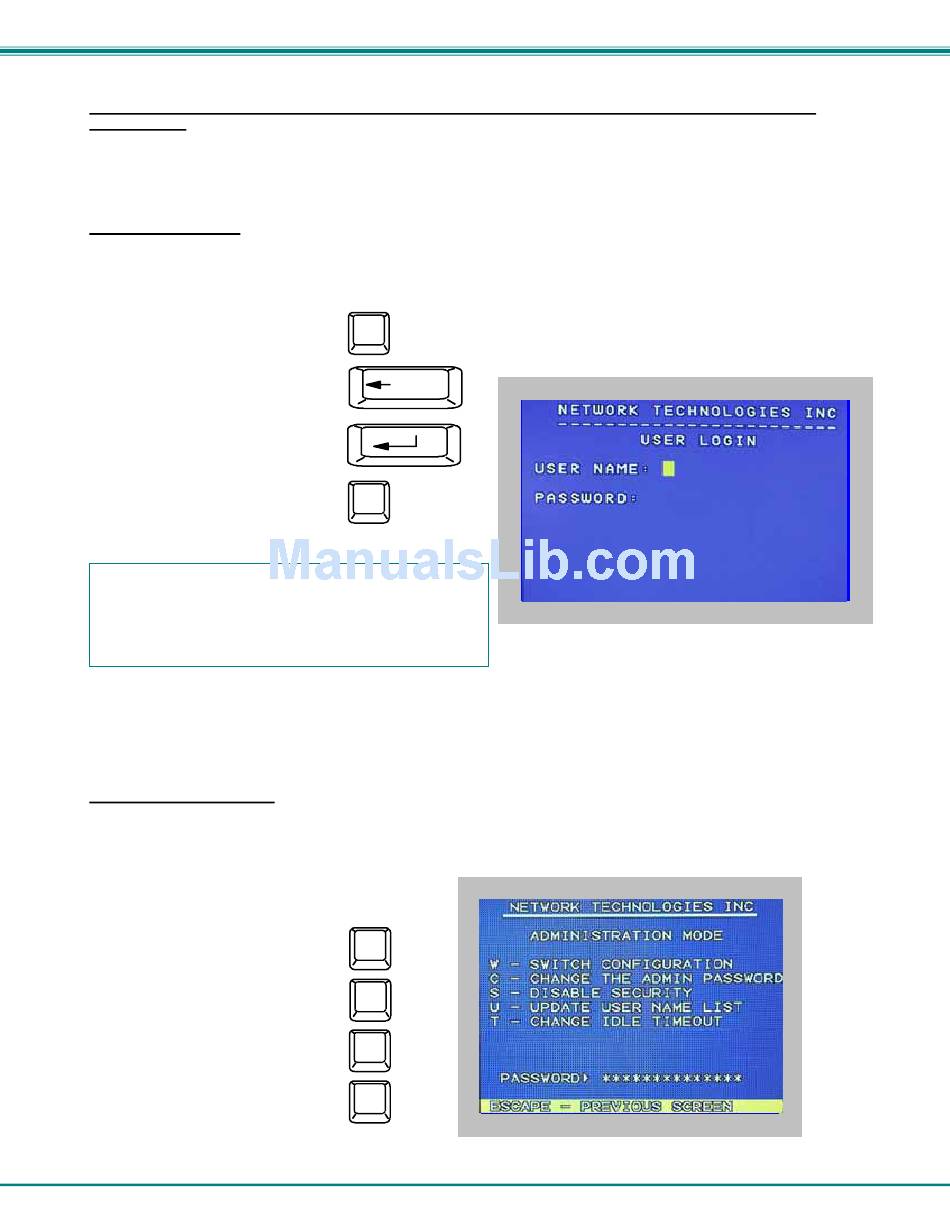

Figure 6- User Login screen
Figure 7- Administration Mode menu
If the user
