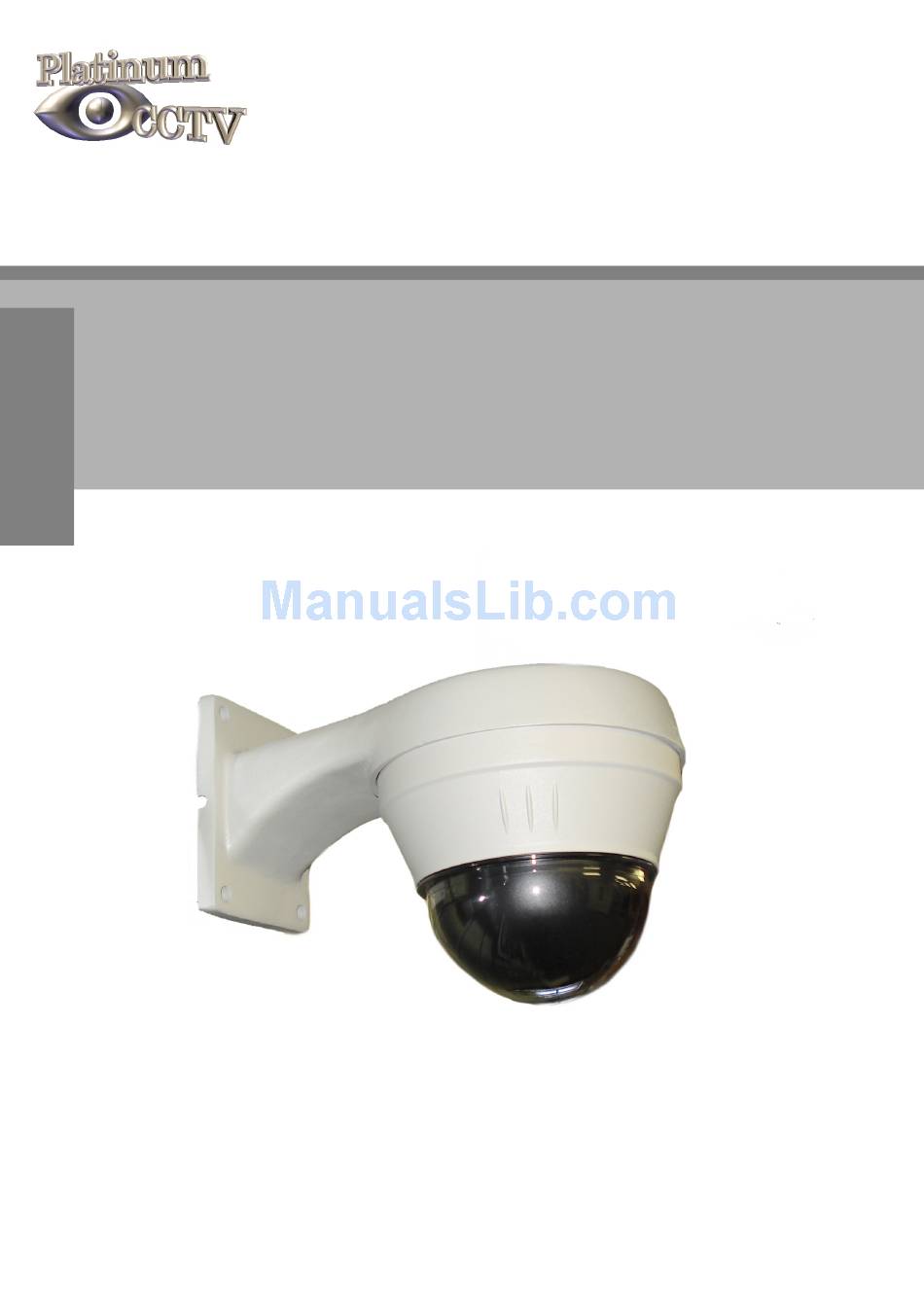

- Page 1 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com http://Platinum-CCTV.com Camera Installation Manual Ver 1.2 Pan, Tilt and Zoom Dome Camera / PTZ-2000-10...
-
Page 2: Table Of Contents
6.6 Time Running Settings Privacy Zone Settings Installation Instructions 8.1 Dimension of Product 8.2 Product Installation 8.3 Installation Instruction Appendix 9.1 Dome Menu Index 9.2 Troubleshooting 9.3 Cleaning 9.4 RS-485 Control Information 10.0 Warranty Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 3: Precautions
Precautions • Electrical Safety Use only the included power adapter to power the PTZ-2000-10 PTZ Dome Camera. Do not remove the 24VAC to 12VDC adapter that is attached to the camera. Removal or tampering with this power adapter will void the warranty of the camera. -
Page 4: Dome Performance
Signal to Noise >50 dB Shutter Auto: 1/50 – 1/120.000 sec Lens 10x optical zoom Magnification 100x (10x Optical, 10x Digital) Video Output Multiple Video Output, 1.0Vp-p Environmental Temperature C to 55 ° ° Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 5: Dome Performance And Features
Dome Performance Dome Performance and Features The PTZ-2000-10 PTZ Dome camera is a high-tech surveillance product with a high definition Sony CCD Image sensor, variable speed Pan/Tilt and zoom capabilities with a built-in multi-protocol RS-485 decoder. This camera is designed for reliable operation, and can provide many years of reliable service in home or business security camera installations. -
Page 6: Dome Features
• Focus Control The PTZ-2000-10 system defaults to Auto-Focus. When the lens changes to zoom in or out, the lens will automatically adjust the focus according to the objects in the center of the camera’s view. The user can manually adjust the focus of the camera by using a PTZ Keyboard with “Far/Near”... -
Page 7: Iris Control
• Scan The user can easily set up the PTZ-2000-10 camera to scan between a left and right point smoothly. This function is popular for a continuous back and forth scanning motion to view around corners and more. -
Page 8: System Settings
Basic Camera Operation 4.1.1 Power on Operation and Self-Test The PTZ-2000-10 camera conducts a power-on self-test when it initially receives power. The camera will rotate slowly until it reaches the default pan position, then it tilts through the full tilt range until it reaches the default tilt position. Once the self- test is completed, it will display the Serial Number, Firmware edition, Protocol, dome address and baud rate on the screen. -
Page 9: Edit Dome Label
Available charac ters include “0-9” “A-Z” : < > - . , [space] 5. Dome Label can use up to 16 characters total Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 10: Initial Information Display
Serial Number of the Dome, Model and Version Number, Software Edition, Protocol, Dome address and communication baud rate. 1. Enter the Main Menu 2. Select “System Setting” 3. Select “Initial Info” Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 11: Display Setup
Temperature Label – Displays Temp. g. Time Label – Displays Time h. Date Label – Displays Date 5. Once complete, select “Back” to return to the System Settings or “Exit” to exit the menu. Label Positions Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 12: Power Up Action
4. Adjust the desired “Motion” Settings 4.5.1 Auto Flip Settings The Auto-Flip feature of the PTZ-2000-10 camera provides the camera with the ability to automatically pan around 180 degrees when the camera is tilted straight down. This will allow you to track an object down below and around to the other side of the camera. -
Page 13: Clearing Presets And Tours
“New Password:” and “Conf. Password” fields, otherwise an error will occur. After entering your password, enable the Password requirement by turning the “Enable Password” setting to “ON”. Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 14: Time And Date Setup
6. Set the “COMM Speed” – The COMM Speed should be set to match the communication speed of your RS-485 controller. NOTE: Improper adjustment of the settings in the COMM menu can render your camera uncontrollable. These settings should only be changed by a knowledgeable professional. Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 15: Camera Settings
Camera Settings Camera Settings Zoom Speed The Zoom speed of the PTZ-2000-10 camera can be easily adjusted by the user to speed up or slow down the zoom capabilities to suit your individual needs. Control the Zoom Speed: 1. Enter the “Main Menu”... -
Page 16: Slow Shutter Control
4. Change the Setting to change slow shutter time ( X2, X4, X6, X8, X10, X12, X14, X16, X24, X32, X64, X128) IR Cut Filter The PTZ-2000-10 P TZ Mini-Dome camera has a built-in IR-Cut filter to improve picture quality during night time hours when IR illuminators are used. - Page 17 Camera Settings Advanced Settings The PTZ-2000-10 PTZ Mini dome camera allows you to configure the Auto Exposure controls and Auto White Balance to suit the needs of your particular installation. Enter the Camera’s Advanced Settings: 1. Enter the “Main Menu”...
-
Page 18: Function Settings
IRIS OPEN command to save the Limit 6. Next, set the SET RIGHT LIMIT the same way. 7. After setting the limits, the scan can be activated by selecting the “RUN SCAN” option. Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 19: Pattern Settings
Preset Number(PO), Speed(S) and Dwell Time(TM). Preset numbers 1-80 are available for the TOUR. Speed is available 1 (Slowest) to 8 (Fastest). Dwell Time can be set for 1-60 seconds per preset position. Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 20: Zone Settings
4. Select the Time Channel (1-4) 5. Select the Start Time 6. Select the End Time 7. Select the Action to Run (RUNNING) 8. Repeat for additional Time Channels (up to 4) Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 21: Privacy Zone Settings
Right to expand the Privacy window to cove the desired private area . Once completed, click OPEN IRIS again Select ENABLE WINDOW and set to ON – to enable the selected Window 6. Repeat for additional Privacy zones Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 22: Installation Instructions
Installation Instructions Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 23: Installation Instruction
Installation Instructions Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... - Page 24 Installation Instructions Pan, Tilt and Zoom Dome Camera / PTZ-2000-10...
-
Page 25: Appendix
Appendix Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 26: Troubleshooting
• Use a soft dry cloth or microfiber cloth to clean inside and outside dome covers. • Use mild LCD cleaners if necessary to dissolve any difficult to remove materials Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... -
Page 27: Rs485 Control Information
RS-485 Bus. • Connection of 120 Ohm Resistor The 120 Ohm resistor for the RS-485 bus is included on the PTZ-2000-10 camera. Simply select the Jumper setting as shown in Picture 9-4.3 Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... - Page 28 B. One wire of RS-485 B. Replace RS485 wires bus is broken C. Add Termination C. The dome is far from resistors controller D. Install RS-485 D. There are too many distributor domes connected Pan, Tilt and Zoom Dome Camera / PTZ-2000-10...
-
Page 29: Warranty 10
• If the products are within the Warranty Period, the buyer should fill in the Warranty card completely and contact the distributor or retailer where the product was purchased for return information. Pan, Tilt and Zoom Dome Camera / PTZ-2000-10... - Page 30 Pan, Tilt and Zoom Dome Camera / PTZ-2000-10...
