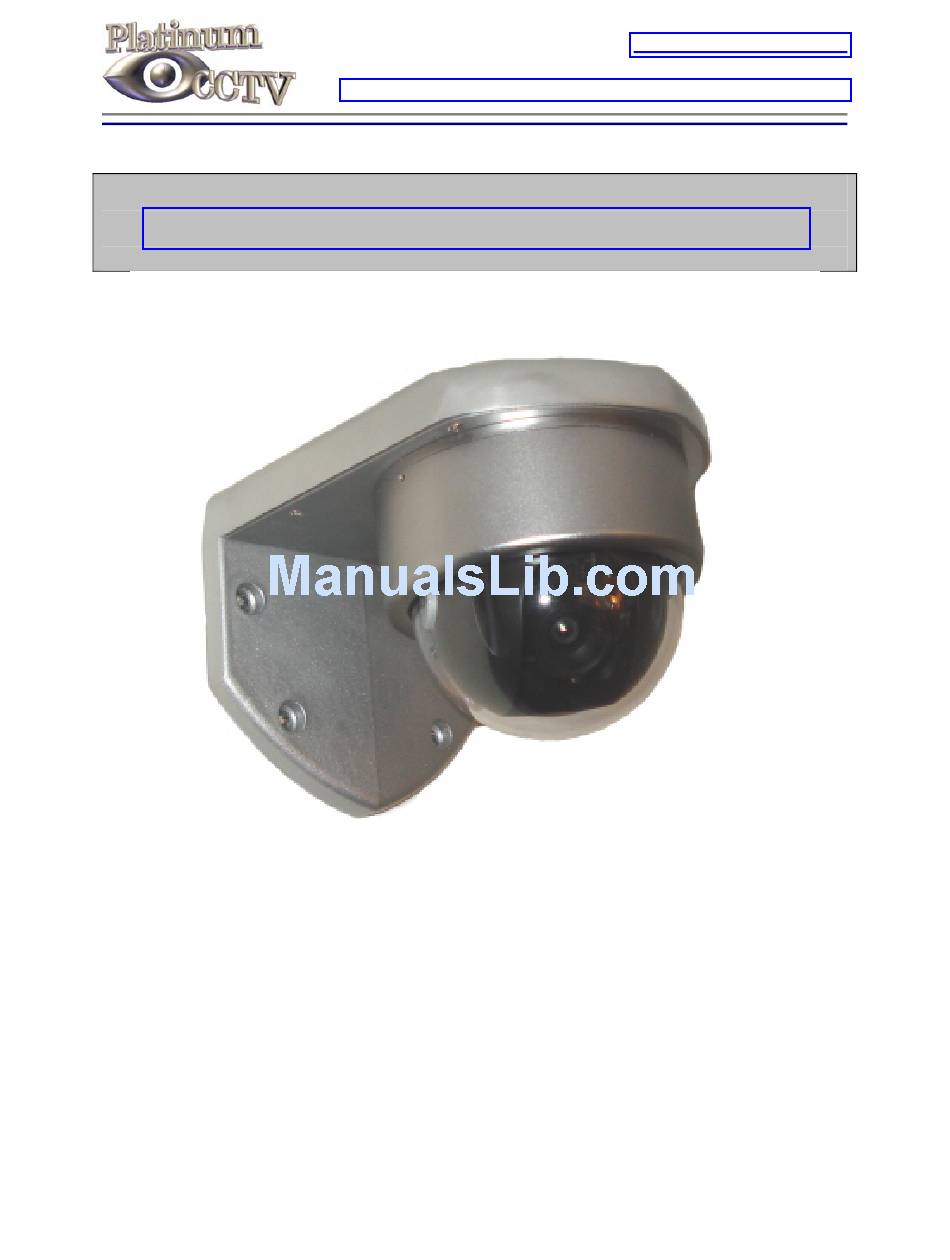

- Page 1 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual PT-351-V49 CCD Pan/Tilt Dome Camera Installation and Operation Manual...
- Page 2 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual Table of Contents Important Notes Functions Setup of Dome Camera Installation of Dome Camera Connection of Dome Camera to your system Technical Specifications Troubleshooting For Warranty Registration, visit http://Platinum-CCTV.com...
-
Page 3: Important Notes
Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual I. Important Notes 1. Prior to installation, Please read this manual carefully 2. Please use included power supply (12VDC/1Amp) 3. During transportation, storage and installation of this product, please avoid... -
Page 4: Setup Of Dome Camera
If you will only be using the RF remote control, than skip ahead to address selection. Remove the Dome Cover of the PT-351-V49 Camera, and adjust the Switches SW1 and SW2 to match the Protocol, Baud Rate and Address as desired for the camera using the included charts. - Page 5 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual 3. Locate the Dip Switches (SW1 and SW2) 4. Set the Dome Address (SW1) If the Dome is to be used with included RF remote control, set each dome with independent addresses using only addresses 1 through 4. Higher addresses will work for independent control with RS-485 but will not function with included RF remote control.
- Page 6 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual 5. Set the Dome Protocol (SW2) The Dome Protocol is the communication language that the Dome camera will use to communicate via RS-485 to your DVR or PC-Based DVR System. The Protocol setting will not affect the RF remote control, only RS-485 wire communications.
- Page 7 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual 6. Set the Dome Baud Rate (SW2) The Dome Baud rate sets the communication speed for the RS-485 transmission. The Baud rate MUST MATCH the baud setting of your controller! 7.
-
Page 8: Camera Installation
IV. Camera Installation After you have completed the dome configuration, now you are ready to install the camera. The PT-351-V49 camera can be installed in 2 different ways: Ceiling mount and Wall Mount). By default, the ceiling mount adapter plate is installed on the dome camera, so we will first look at mounting the camera with the ceiling adapter. - Page 9 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual B. Wall Mounting 1. Remove Ceiling Adapter Plate from top of camera 2. Install camera onto Wall adapter mounting plate 3. Install Wall Adapter onto wall using appropriate mounting screws For Warranty Registration, visit http://Platinum-CCTV.com...
- Page 10 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual 4. Install camera with Wall adapter mounting plate onto Wall Adapter For Warranty Registration, visit http://Platinum-CCTV.com...
-
Page 11: System Diagram
Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual V. System Diagram System Diagram with Multiplexer, PTZ Keyboard and Monitor *Multiplexer, PTZ Keyboard and Monitor are not included with camera System Diagram with PC-Based DVR and RS-232 to RS-485 Adapter... - Page 12 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual System Diagram with RF Remote Control *RF Remote Control can control up to 4 PT-351-V49 Cameras and is included with camera For Warranty Registration, visit http://Platinum-CCTV.com...
-
Page 13: Camera Specifications
Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual VI. Camera Specifications Signal Format NTSC (U.S. & Japan) Scanning System 2:1 Interlaced Image Sensor 1/4" Sony 420 TVL Image Sensor Effective Pixels NTSC = 542(H) x 496(V) Horizontal Resolution... - Page 14 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com PT-351-V49 Installation and Operation Manual VII. Troubleshooting Problem Possible Causes Solutions Power supply damaged or Replace Power supply or not plugged in correctly plug in correctly Camera does not move, no Incorrect Polarity of power...
