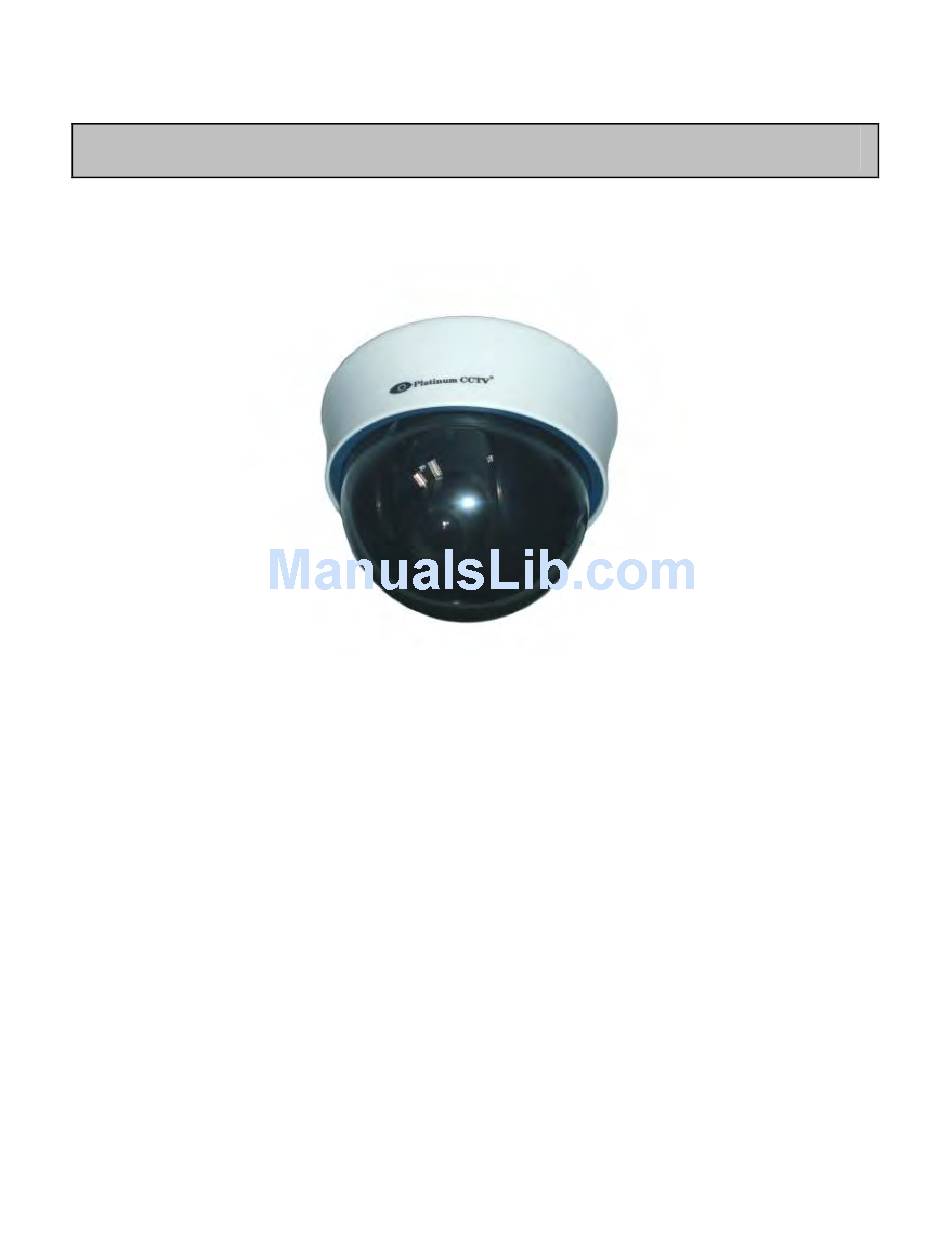

- Page 1 Platinum CCTV Surveillance Solutions CD-4261 CCD Indoor Dome Camera Installation Manual Sony High-Resolution CCD Indoor Dome Camera w/420 TVL w/ 4-9mm Varifocal Lens http://Platinum-CCTV.com...
-
Page 2: Camera Installation
Platinum CCTV Surveillance Solutions Camera Installation Camera Setup: Items Needed: Screwdriver, Drill, Mounting Hardware (not included), Glove or Cloth for removing Dome, Pencil Remove Mounting Plate and mount plate to wall using appropriate screws Depress button on back of camera, then remove the dome cover. - Page 3 Platinum CCTV Surveillance Solutions Camera Installation Connect Cables Top = BNC Video Connector Bottom = Power Connector Adjust Zoom and focus of lens Adjust camera angle to suit needs Reinstall Dome...
-
Page 4: Installation Notes
Platinum CCTV Surveillance Solutions CD-4261 CCD Color Dome Camera Image Sensor Sony 1/3” CCD Sensor Number of Pixels NTSC: 510 (H) x 492 (V) Lens 4-9mm Varifocal Lens Sync System Internal Synchronization Resolution 420 TVL Dimensions 127mm (D) x 95mm (H) Video Output 1.0Vp-p75Ω...
