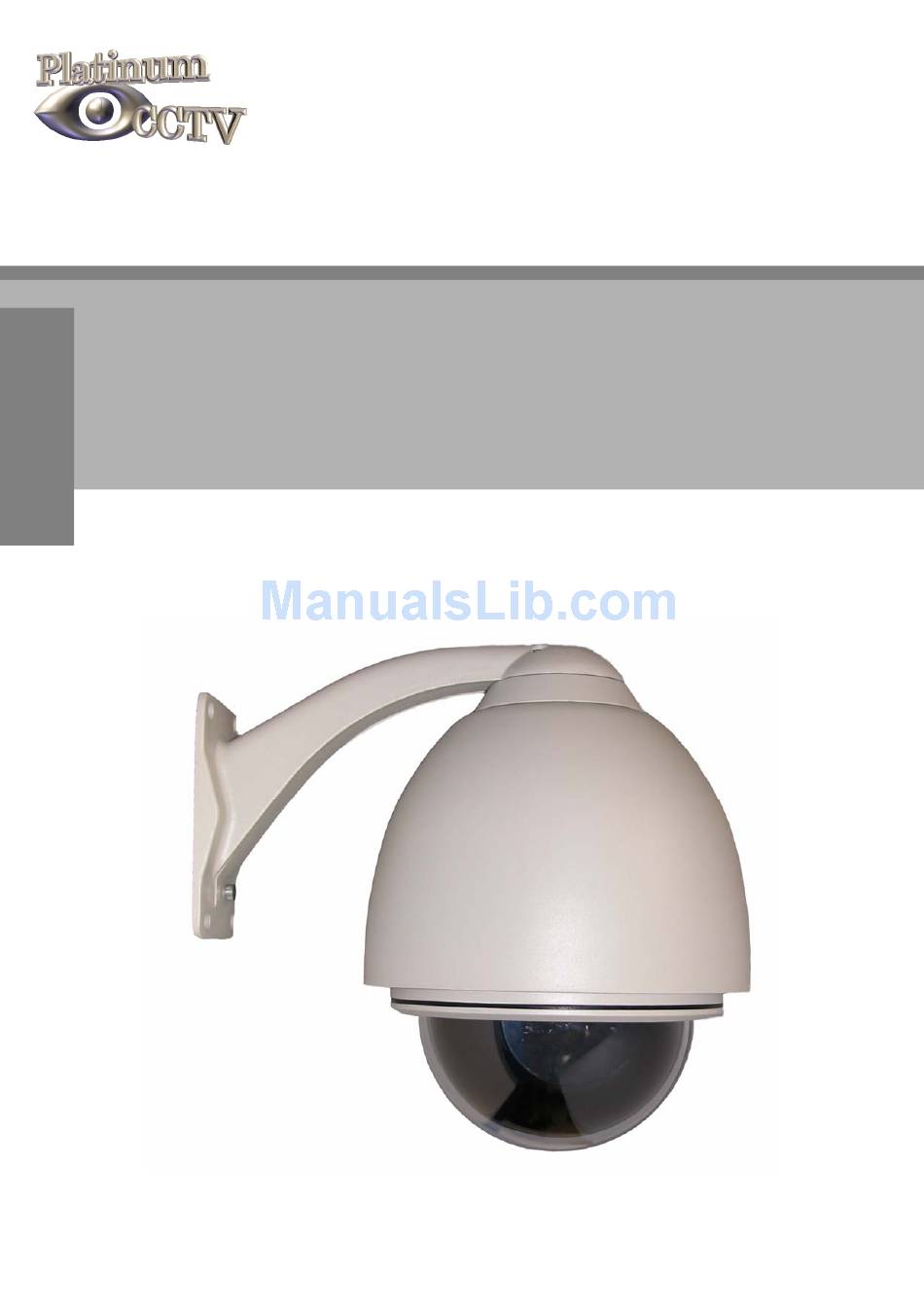

- Page 1 Platinum CCTV Surveillance Solutions http://Platinum-CCTV.com http://Platinum-CCTV.com Camera Installation Manual Ver 1.0 Pan, Tilt and Zoom Dome Camera / PTZ-1500-27...
-
Page 2: Table Of Contents
White Balance Mode Auto Cruise ○ On Screen Display Main Menu Focus Set Auto White Balance Auto Exposure Special Functions Motion Detection Function On Screen Display ○ Parts Description and Function ○ Product Specifications Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 3: Features
• RS-485 Communication, MAX 256 Multi-drop • Versatile Pelco-D and Pelco P Protocol • Variable Pan and Tilt Speed • 64 Programmable Presets • OSD Setup • Up to 6 Programmable Cruise Sequences Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 4: Components
Allen Screws for mounting PTZ to Mount Power Supply 24v AC Power Supply Manual Manual for ACD-1500-C22 Default Components Dome Camera and Housing Wall Mount Bracket Ceiling Mounting Bracket Accessories Manual PTZ-1500-27 Manual Screws, Wrench and Power Supply Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 5: System Configuration
• Housing Protects Internal Components From the Elements • Acrylic Dome Protects PTZ Camera • Wiring Access Allows access to internal wiring • Built in Heaters Keeps lens clear in cold weather Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 6: Wall Mount
4) Assemble and screw the Outdoor Housing Assembly on the Mount Bracket while routing the wiring from the camera through the neck of the bracket and out the access hole. Continue to page 8 Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 7: Ceiling Mount
3) Attach assembly to the PTZ camera using the included Allen Screws. Tighten setscrews. 4) Align the PTZ Assembly into the top of the ceiling mount. Turn clockwise to thread extension into mount. Tighten setscrews. Continue to Next Page Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... - Page 8 6) Remove BLACK camera cover inside of housing. 7) Set DIP switches according to Protocol and Baud rate desired. (See page 9 for details) 8) Replace BLACK camera cover Polycarbonate dome cover. Pan, Tilt and Zoom Dome Camera / PTZ-1500-27...
-
Page 9: Camera Address Setting
• Factory Default ID is 1 • When a dip switch is ON, its bit logic is 1 • Dip Switch 9 and 10 are always set to OFF SW1:Address Setting (1~255) Value. Dipswitch Dipswitch Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... - Page 10 For an address of 157: Dip Switch #1 (value = 1), #3 (value = 4), #4 (value = 8), #5 (value = 16), #8 (value = 128) will be ON all others OFF Pan, Tilt and Zoom Dome Camera / PTZ-1500-27...
-
Page 11: Protocol And Baud Rate Settings
Below is a table showing the proper settings of the 5 and 6 dip switch on SW2 for setting preferred baud rate. Selection Of Protocols Baud Rates Baud Rate 2400 4800 9600 19200 Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 12: Auto Scan
BLC ON or OFF manually by using the method below or by setting the BLC to AUTO in the OSD (On Screen Display). Function Action on Controller BLC ON Call preset 55 BLC OFF Set preset 55 Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 13: Focus Mode
Presets must be in the sequence you would like them to scan starting with preset 1. To activate the Auto Cruise SET preset 51 Function Action on Controller ACTIVATE AUTO CRUISE Set preset 51 Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 14: Main Menu
Backlight Compensation Off/On NEG/POS Neg/Pos Image Color or B/W – B/W mode provides a cleaner night COLOR image WB CONTROL White Balance Auto/Push SHUTTER Adjust Shutter Speed CAMERA ID Reset Camera ID Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 15: On Screen Display
OSD Main Menu Page 2 Menu Option Description ZOOM START Limit Zoom Start Position ZOOM STOP Limit Zoom Stop Position BRIGHTNESS Adjust Brightness SHARPNESS Adjust Sharpness FOCUS Auto/Push INIT SET Reset to Factory Defaults Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 16: Parts Description And Function
BNC Connector for Video Out • Video out BNC connector Connect to units such as monitor, VCR and etc. RS-485 Communication Terminal • RS-485 Communication Screw Terminal Connector Signal + Input - Input Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... -
Page 17: Digital Zoom
AC 24V / 1.25A 186∅ × 135(H) mm Dimension Weight Approx. 3.5Kg Operating Temp. 0°C ~ 40°C * Specification & design are subject to change without notice Ceiling Mount Wall Mount Dimensions Dimensions Pan, Tilt and Zoom Dome Camera / PTZ-1500-27... - Page 18 Memo MEMO Pan, Tilt and Zoom Dome Camera / PTZ-1500-27...
