T10
Manual
(1.0 EN)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for d&b audiotechnik T10

Summary of Contents for d&b audiotechnik T10

  • Page 1 Manual (1.0 EN)

  • Page 2: Table Of Contents

    EU conformity of loudspeakers (CE symbol)..........9 WEEE Declaration (Disposal)................9 General Information T10 Manual Version 1.0 EN, 12/2008, D2600.EN .01 Copyright © 2008 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference.

  • Page 3: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. T10 Manual (1.0 EN) Safety precautions - 1...

  • Page 4: T10

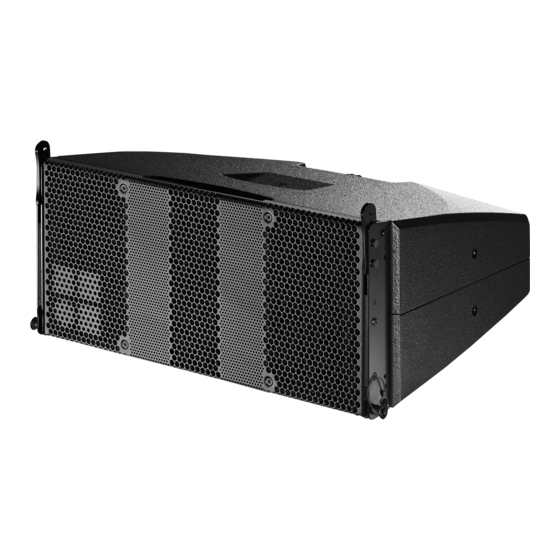

    When used upright as a point source, the lens curves the wavefront of the line source providing a 90° x 35° dispersion pattern. The T10 is a two way design employing dual 6.5” drivers, a 1.4” exit compression driver and a passive crossover network. The low drivers are positioned in a dipolar arrangement providing an exceptional dispersion control towards low frequencies.

  • Page 5: Connections

    Connections The T10 cabinet is fitted with a pair of EP5 connectors. All five pins of both connectors are wired in parallel. The T10 uses the pin assignments 1/2. Pins 3/4 and 5 are designated to active subwoofers, where pin 5 is...
  • Page 6 For acoustic adjustment the functions CUT, HFA, HFC and CPL can be selected. CUT circuit Set to CUT, the T10 low frequency level is reduced. The T10 is now configured for use with the T-SUB or other d&b active subwoofers. HFA circuit (T10 PS setup only) In HFA mode (High Frequency Attenuation), the HF response of the T10 system is rolled off.

  • Page 7: Dispersion Characteristics

    Dispersion characteristics The graphs below show dispersion angle over frequency of a single T10 cabinet plotted using lines of equal sound pressure (isobars) at – 6 dB and –12 dB. Fig. 8: Isobar diagram T10 line source, Fig. 9: Isobar diagram T10 line source, vertical horizontal Fig.

  • Page 8: Technical Specifications

    ........................Optional: 2 x NL4 Pin assignments.......................EP5: 1/2 ..........................NL4: 1+/1– Weight.......................11 kg (24 lb) Fig. 14: T10 frequency response point source, standard and CUT settings Fig. 15: T10 cabinet dimensions in mm [inch] T10 Manual (1.0 EN) Page 8 of 10...

  • Page 9: Manufacturer's Declarations

    Manufacturer's Declarations EU conformity of loudspeakers (CE symbol) This declaration applies to T10 loudspeaker, Z0550 manufactured by d&b audiotechnik GmbH. All production versions of these types are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
  • Page 10 d&b audiotechnik GmbH, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone +49-7191-9669-0, Fax +49-7191-95 00 00_______...
