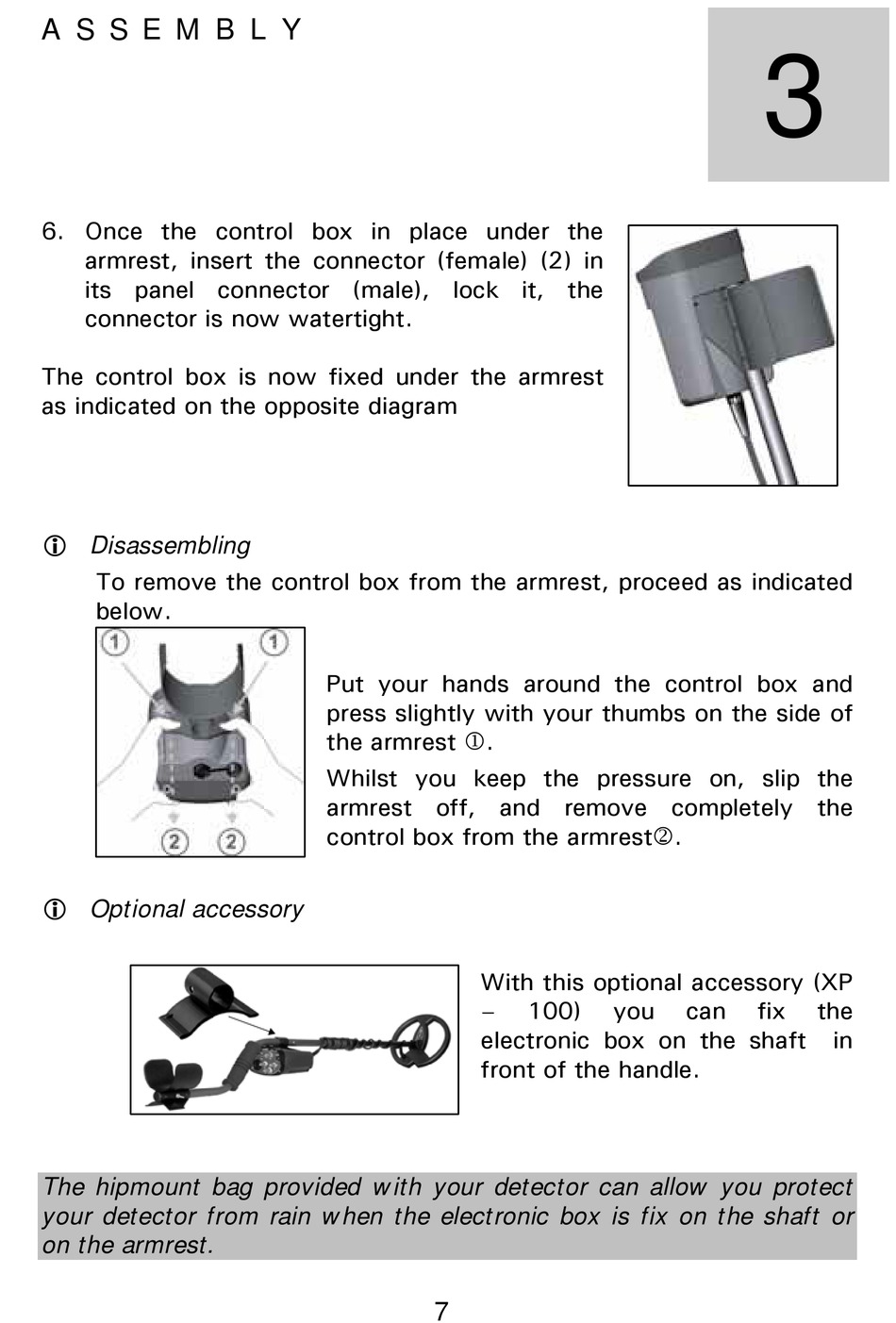

A S S E M B L Y
6. Once the control box in place under the
armrest, insert the connector (female) (2) in
its panel connector (male), lock it, the
connector is now watertight.
The control box is now fixed under the armrest
as indicated on the opposite diagram
Disassembling
To remove the control box from the armrest, proceed as indicated
below.
Optional accessory
The hipmount bag provided with your detector can allow you protect
your detector from rain when the electronic box is fix on the shaft or
on the armrest.
Put your hands around the control box and
press slightly with your thumbs on the side of
the armrest 1.
Whilst you keep the pressure on, slip the
armrest off, and remove completely the
control box from the armrest2.
With this optional accessory (XP
–
electronic box on the shaft
front of the handle.
7
100)
you
can
3
fix
the
in
