Summary of Contents for SMART-AVI QuadKVM

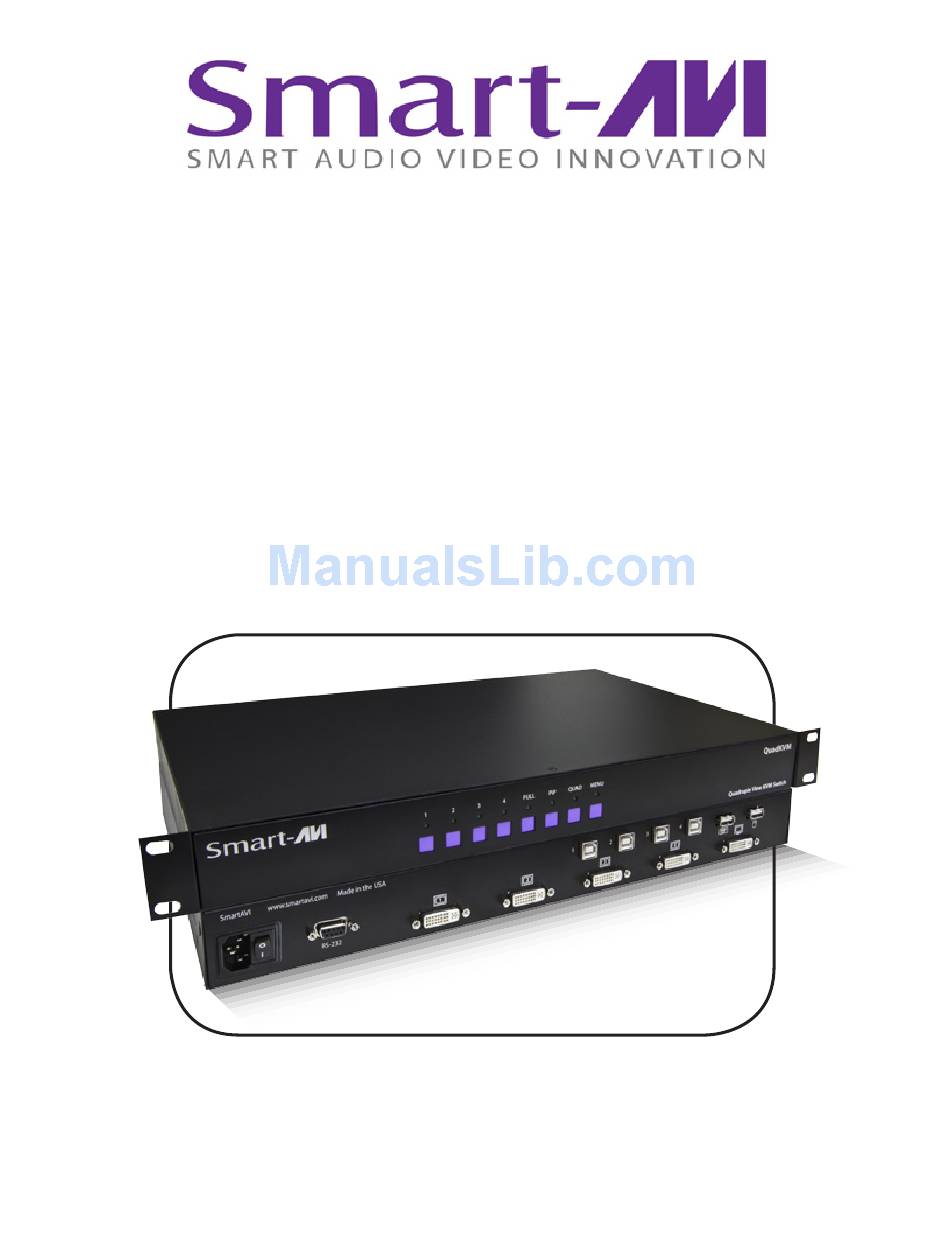

- Page 1 Installation Manual Quad K VM Quadruple View KVM Switch View four different analog/digital video sources simultaneously on one screen with USB keyboard and mouse support. www.smartavi.com...
- Page 2 Introduction The QuadKVM Switch allows you to view up to four different analog and digital video sources simultaneously on one display device. It also supports keyboard and mouse functionality, allowing you to access all four displays with one set of interface controls. Connections to video sources are managed via DVI-I connectors.
-
Page 3: What's In The Box
What’s in the Box? PART NO. DESCRIPTION SMQKVM 4-Port DVI, USB 1.1 KVM switch with PiP/Dual/Quad/Full modes. PS5VDC4A 5VDC4A Power Supply Technical Specifications VIDEO Format DVI-D Single Line Maximum Pixel Clock 165 MHz Input Interface (4) DVI-D 29-pin female Output Interface (1) DVI-D 29-pin female Resolution DVI-D up to 1920 x 1200 @60Hz... - Page 4 QuadKVM Applications The QuadKVM can be used in many applications that require the real-time monitoring of multiple computers. It is a perfect solution in situations where a user needs to monitor several computers at the same time. In Air Traffic Control environments, several computers need to be monitored for the progress of flights and flight information.
-
Page 5: Installation
3. Connect the DVI-D output of each computer to the DVI-D inputs on the QuadKVM using male to male DVI-D cables. 4. Connect the USB keyboard and mouse to the USB outputs on the QuadKVM. 5. Connect the DVI-D display to the DVI-D output on the QuadKVM. -
Page 6: Operation
Operation Setting the Resolution The first time you connect a display to the QuadKVM, you will need to set the output resolution to that of your display. To change the resolution, press MENU and then a number 1-3. The corresponding resolutions are as follows:... - Page 7 To bring up the on-screen display (OSD), press Scroll Lock twice and then the letter O. The OSD may also be accessed by pressing and holding the Menu button on the front of the QuadKVM for 2 seconds. Once the OSD is displayed, use the number or arrow keys to select an option.
- Page 8 F2 . OSD POSITION F3 . USER SELECT F4 . SCAN Screenshot of the QuadKVM’s System OSD MODE The MODE OSD option (F2 from the main OSD) allows the user to set the mode. The available modes via OSD are PiP (Picture in Picture) (F1), Full (F2), and Quad (F3).
- Page 9 The CONFIGURATION OSD option (F3 from the main OSD) allows the user to back up the settings (including pre-defined user settings) (F1) and to perform a factory reset to reset the QuadKVM to its factory default settings (F2). CONFIGURATION F1 . SAVE SETTINGS F2 .
- Page 10 HyperTerminal or an alternate terminal application. The settings for the connection are as follows: Once you have connected to the QuadKVM, you must log in. To do so, type ‘i’ at the prompt and press <enter>. This will bring up the password entry feild. Type ‘smart’ and press <enter> to log in to the QuadKVM.
- Page 11 PiP-Mode p<enter> Output Resolution o<space>[0-XGA|1-HD|2-WUXGA]<enter> The following is an example screen shot of the QuadKVM help/options screen (this screen was displayed by pressing ?<enter>): To display the port information, press i<enter>. The following screen will look something like this: www.smartavi.com...
- Page 12 Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
