Summary of Contents for SMART-AVI QKVMDP
- Page 1 QKVMDP 4x2 Multiviewer KVM switch USER MANUAL QKVMDP 4x2 Multiviewer KVM switch 1-800-284-2131 www.smartavi.com 4x2 Multiviewer KVM switch...
-
Page 2: Table Of Contents
Table of content TECHNICAL SPECIFICATIONS_____________________________________________________________ 3 WHAT’S IN THE BOX?_____________________________________________________________________ 4 QKVMDP FRONT AND REAR______________________________________________________________ 4 INSTALLATION____________________________________________________________________________ 5-6 SYSTEM OPERATION______________________________________________________________________ 7 HOTKEY AND RS-232 SERIAL CONTROL___________________________________________________ 7 OSD MENU_______________________________________________________________________________ 8 TROUBLESHOOTING______________________________________________________________________ 9 TECHNICAL SUPPORT_____________________________________________________________________ 9 LIMITED WARRANTY STATEMENT________________________________________________________ 10 4x2 Multiviewer KVM switch... -
Page 3: Technical Specifications
Technical Specifications VIDEO Format DisplayPort Host Interface (4) DisplayPort User Console Interface (2) DisplayPort Max Resolution 800 x 600 up to 3840 x 2160 5 volts p-p (TTL) Input Equalization Automatic Input Cable Length Up to 20 ft. Output Cable Length Up to 20 ft. -
Page 4: What's In The Box

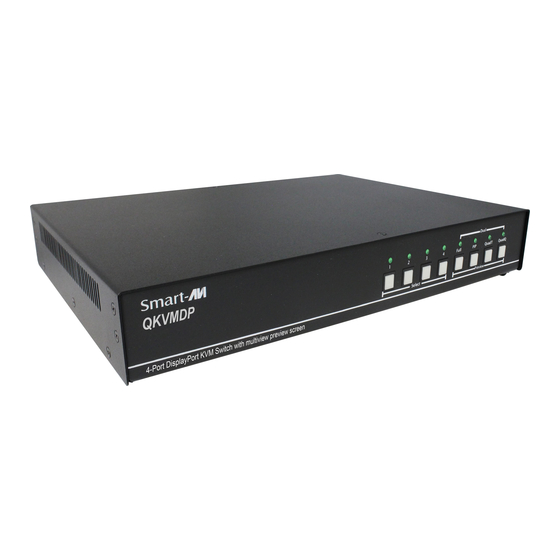

What’s in the box? SM-QKVMDP 4-Port DisplayPort, USB 2.0 KVM Switch with Multiview Preview Screen and Audio Support. PS12VDC3A 12V DC, 3A (minimum) power adapter with center-pin positive polarity. User Manual QKVMDP rear QKVMDP front 4x2 Multiviewer KVM switch... - Page 5 INSTALLATION 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a DisplayPort cable to connect the DP output port from each computer to the corresponding DP IN ports of the unit. 3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit.
-
Page 6: Installation
Installation (continued) EDID Learn: The QKVMDP has 2 preset EDIDs that can be triggered from the front panel. The EDIDs are labeled as follows: IPG - 1080p (EDID for 1080p) IPG - 4K (EDID for 3840 x 2160) ... -
Page 7: System Operation
HyperTerminal or an alternate terminal application. The settings for the connection are as follows: Baudrate 115200; Data Bits 8; Parity None; Stop Bits 1; Flow Control None. Once you have connected to the QKVMDP via Serial, you will see the QKVMDP information when the device starts up. -
Page 8: Osd Menu
OSD MENU The OSD Menu is used to update the Preview Display. The OSD Menu overlaps the Preview screen and is controlled through any standard keyboard connected to one of the K/M slots on the device: Important Notice: After entering the OSD Menu, all keyboard and mouse functionality will be blocked from the computer and only used for the OSD commands. -
Page 9: Troubleshooting
Troubleshooting No Power Make sure that the power adapter is securely connected to the power connector of the unit. Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. Replace the power supply. No Video ... -
Page 10: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. - Page 11 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
