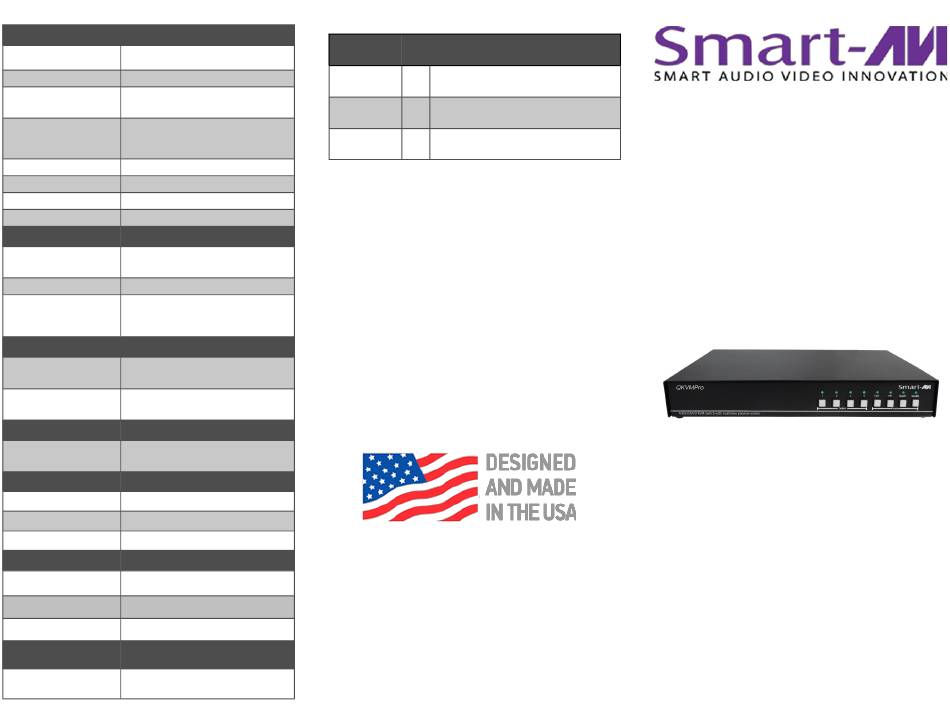

SMART-AVI QKVMPro Quick Start Manual

TECHNICAL SPECIFICATIONS
VIDEO
Format DVI Dual Link
Host Interface (4) DVI-D 29-pin (female)
User Console
(2) DVI-D 29-pin (female)
Interface
Max Resolution 2560 x 1600 @ 60Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
USB 2.0, 1.1, and 1.0 w/ internal
Signal Type
hub
Input Interface (4) USB Type B
(2) USB 1.1 Type A for KVM Devices
Output Interface (2) USB 2.0 Type A Transparent
AUDIO
(4) Connector Stereo 3.5mm Fe-
Input
male
(1) Connector Stereo 3.5mm Fe-
Output
male
POWER
12V DC, 3A power adapter with
Power Requirements
center-pin positive polarity
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CONTROL
Front Panel Push Buttons with LED indicators
RS-232 Via Serial @ 115200 bps
Hot Keys Via Keyboard
OTHER
Emulation Keyboard, Mouse and Video
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
4-port, DVI-I Multiviewer KVM
QKVMPro 1
Switch
12V DC, 3A power adapter with
PS12VDC3A 1
center-pin positive polarity.
1 Quick Start Guide
NOTICE
The information contained in this document is subject
to change without notice. SMART-AVI makes no war-
ranty of any kind with regard to this material, includ-
ing but not limited to, implied warranties of merchant-
ability and fitness for particular purpose. SMART-AVI
will not be liable for errors contained herein or for
incidental or consequential damages in connection
with the furnishing, performance or use of this materi-
al. No part of this document may be photocopied,
reproduced, or translated into another language with-
out prior written consent from SMART-AVI, Inc.
20170518
Toll Free: (800) AVI-2123
Phone: (702) 800-0005
2455 W. Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
smartavi.com

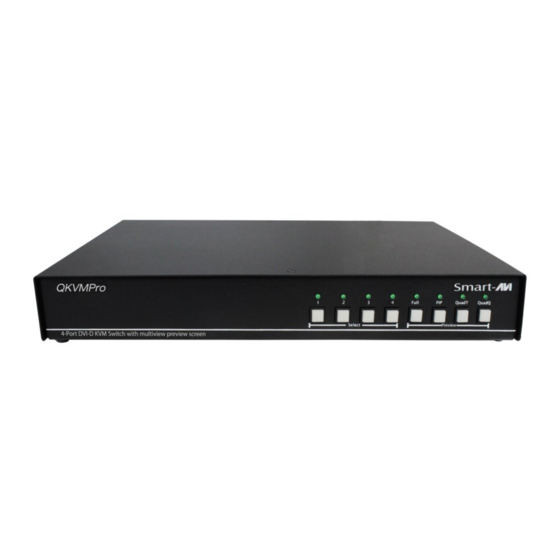

QKVMPro
