Merlin E840M User Manual

+
+
For use with Security 2.0 Garage Door Openers. The garage
Number (PIN) and ENTER button are pressed on the Keyless
Entry.
Install the battery and program the Keyless Entry prior to
installation. Make sure the garage door opener has a
working courtesy light because it is a programming indicator.
PROGRAM INITIAL PIN - using the Learn button
1
PROGRAM INITIAL PIN - using a multi-function door control* (if this option is installed)
Press the LEARN button on the door
control to enter Programming
Mode.
The command
To test, press the PIN, then press the ENTER button. The garage door opener will activate. To program the Keyless Entry to more than one garage door opener, repeat the steps above using
a new PIN for each additional garage door opener.
CHANGE AN EXISTING PIN
1 2
Press the programmed PIN
that you want to change.
? ? ? ?
*Optional accessory
ROLLER DOOR OPENER
Locate the
Learn button
on the garage
door opener.
Press the LEARN button again,
The command
once again.
Press and hold the
# button until...
...the light bulb
blinks twice.
To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door:
•
Install Keyless Entry Control within sight of the garage door,out of reach of children
LEARN
at a minimum height of 1.5m, and away from all moving parts of door.
BUTTON
• ALWAYS keep remote controls out of reach of children. NEVER permit children to
operate, or play with remote controls.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted, and
there are no obstructions to door travel.
•
ALWAYS keep gate or garage door in sight until completey closed. NEVER permit
anyone to cross path of moving gate or door.
2
Press and
release the
Learn button.
The LED will light.
Within 30 seconds...
Enter a 4-digit
personal
number (PIN)
of your choice:
? ? ? ?
3
Enter the new 4-digit PIN of your choice,
then press the ENTER button.
? ? ? ?
+
new PIN

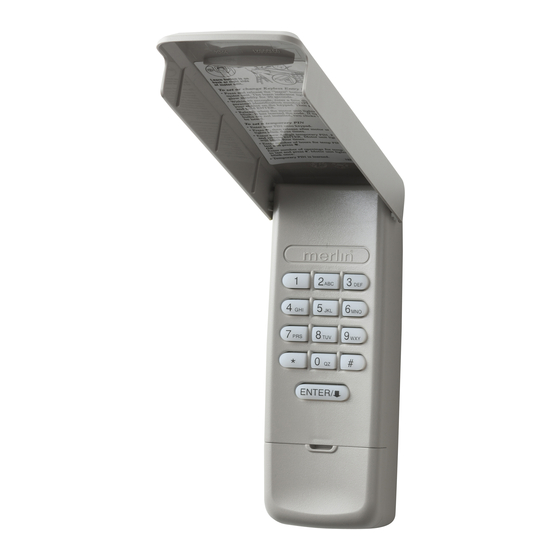

WIRELESS KEYLESS ENTRY • MODEL E840M
3 Press and hold the ENTER
4
Enter a 4-digit
button until...
personal
number (PIN)
of your choice:
? ? ? ?
4
Press and hold the ENTER button until...
4
To test, press the new PIN,
then the ENTER button.
The garage door opener
will activate.
The light bulb will blink once.
...the light bulb blinks
once or 2 clicks are
heard.
..the light bulb blinks once
or 2 clicks are heard.
