Note – When you use the medium on the tray-loading type CD-RW/DVD-RW drive
unit, make sure that the center of the medium is secured to the clamp of the tray, and
then push the tray into the drive.
1.4.6

I/O Port

The following interfaces are provided to connect the M3000 server to networks and a
external device:

GbE Port

■
SAS Port
■
FIGURE 1-12

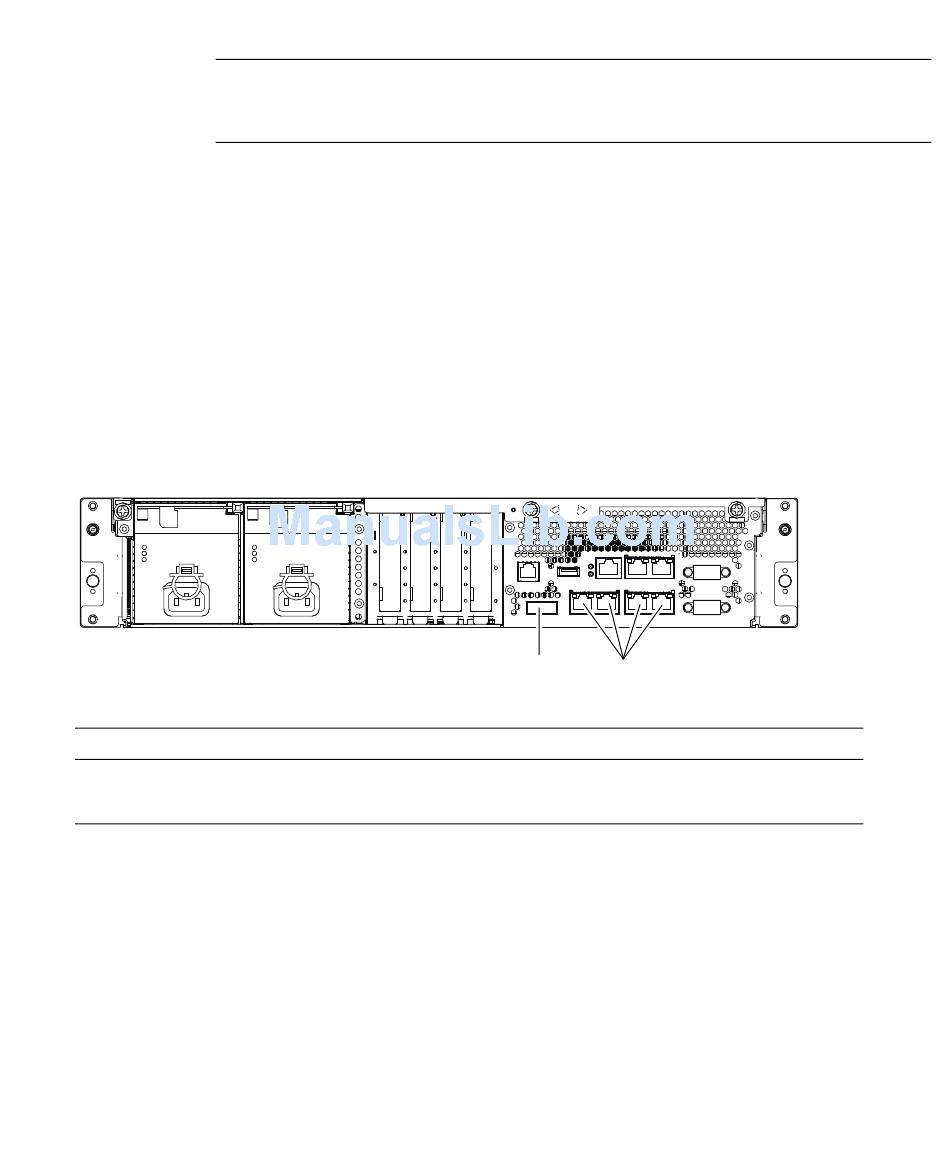

I/O Ports Locations
FIGURE 1-12
Location No. Component
1 SAS port
2 GbE port (for Oracle Solaris OS)
1.4.6.1 GbE Port
The GbE ports connect the Oracle Solaris OS to networks. Because the ports support
the 1000BASE-T GbE connection, high-speed and high-capacity data transmission is
possible.
shows the locations of the I/O ports.
1
2
Maximum Number per Server
1
4
Chapter 1 System Overview 1-25
