CONFIGURATION GUIDE

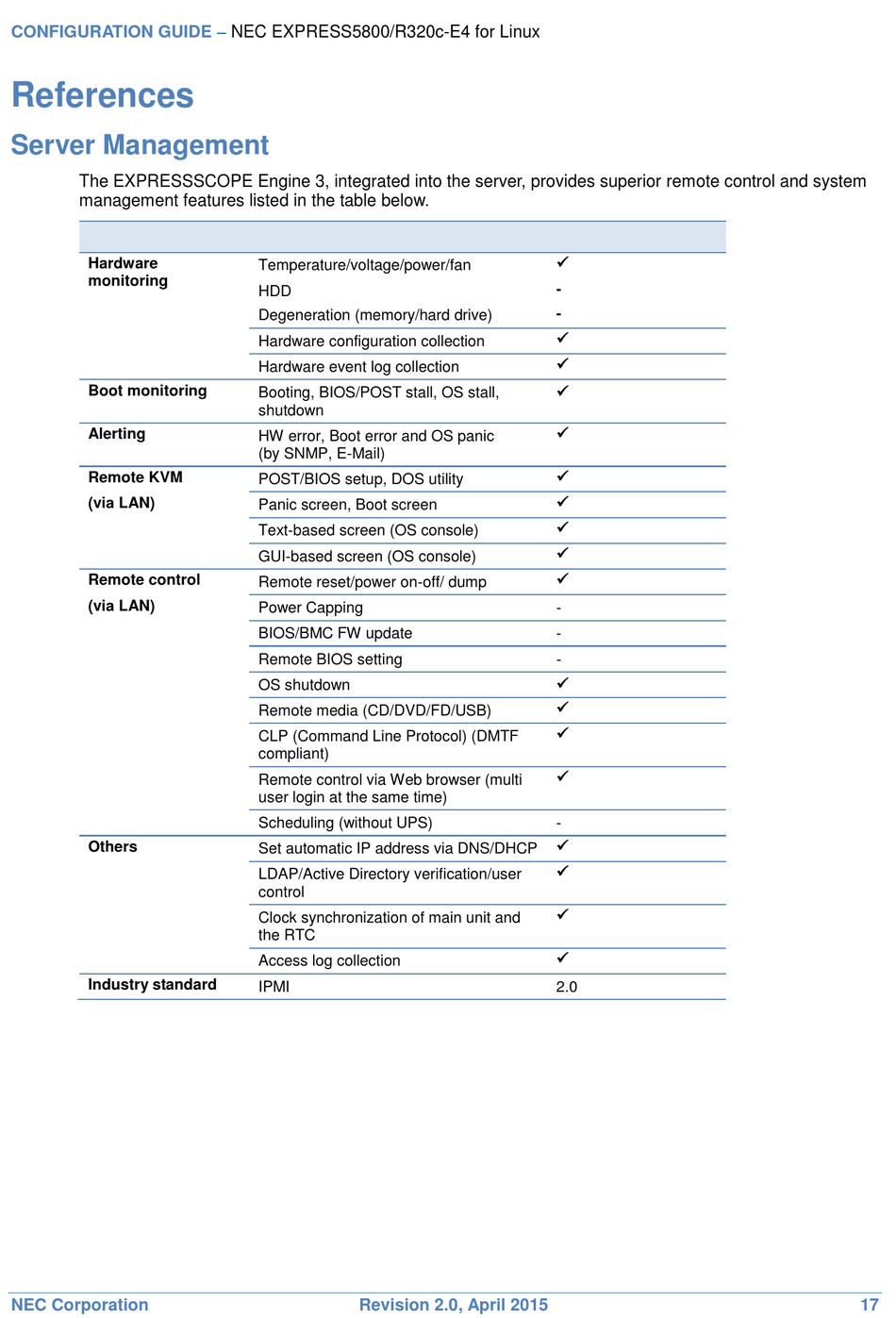

References

Server Management

The EXPRESSSCOPE Engine 3, integrated into the server, provides superior remote control and system
management features listed in the table below.
Hardware
monitoring
Boot monitoring
Alerting
Remote KVM
(via LAN)
Remote control
(via LAN)
Others
Industry standard
NEC Corporation
–
NEC EXPRESS5800/R320c-E4 for Linux
Temperature/voltage/power/fan
HDD
Degeneration (memory/hard drive)
Hardware configuration collection
Hardware event log collection
Booting, BIOS/POST stall, OS stall,
shutdown
HW error, Boot error and OS panic
(by SNMP, E-Mail)
POST/BIOS setup, DOS utility
Panic screen, Boot screen
Text-based screen (OS console)
GUI-based screen (OS console)
Remote reset/power on-off/ dump
Power Capping
BIOS/BMC FW update
Remote BIOS setting
OS shutdown
Remote media (CD/DVD/FD/USB)
CLP (Command Line Protocol) (DMTF
compliant)
Remote control via Web browser (multi
user login at the same time)
Scheduling (without UPS)
Set automatic IP address via DNS/DHCP
LDAP/Active Directory verification/user
control
Clock synchronization of main unit and
the RTC
Access log collection
IPMI
Revision 2.0, April 2015

-
-









-
-
-




-




2.0
17
