External Views; Front And Rear Views; Front View - NEC EXPRESS5800/R320c-E4 Configuration Manual

CONFIGURATION GUIDE

External Views

Front and Rear Views

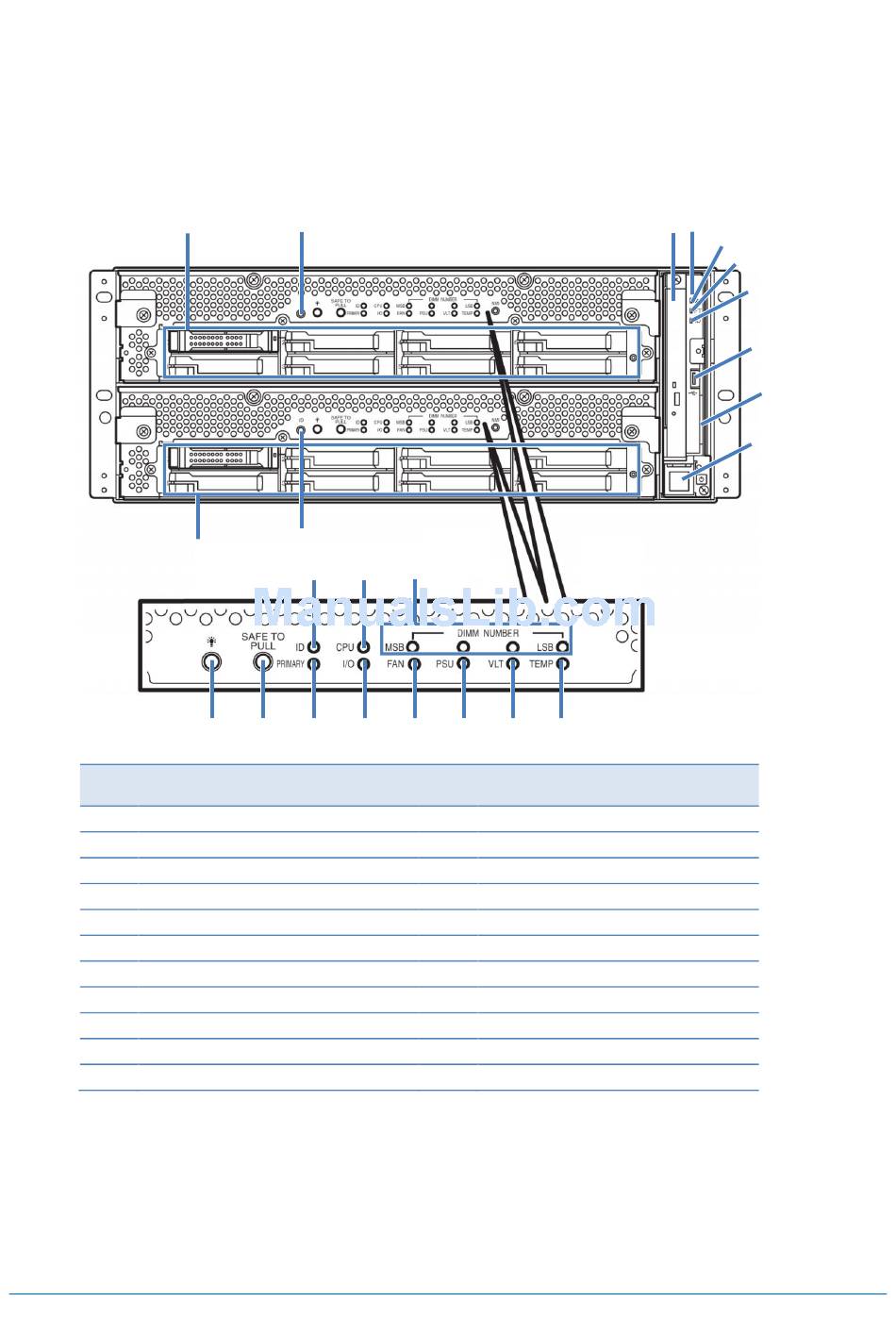

Front View

Legend
A.
Drive Bays
B.
UID Button
C.
DVD Super Multi Drive
D.
System Power LED
E.
System Status LED
F.
System FT LED
G.
UID LED
H.
USB Connector
I.
Pull-out Tab
J.
Power Button
K.
Module ID LED
NEC Corporation
–
NEC EXPRESS5800/R320c-E4 for Linux
B
A
B
A
K
N O P
L M
Q R S T
L.
CPU Fault LED
M.
Memory Fault LED
N.
Module Power LED
O.
SAFE TO PULL LED
P.
PRIMARY LED
Q.
IO Module Fault LED
R.
Fan Fault LED
S.
PSU Fault LED
T.
DC Power Fault LED
U.
Temperature Fault LED
Revision 2.0, April 2015
C D
E
U
F
G
H
I
J
5
