CONFIGURATION GUIDE

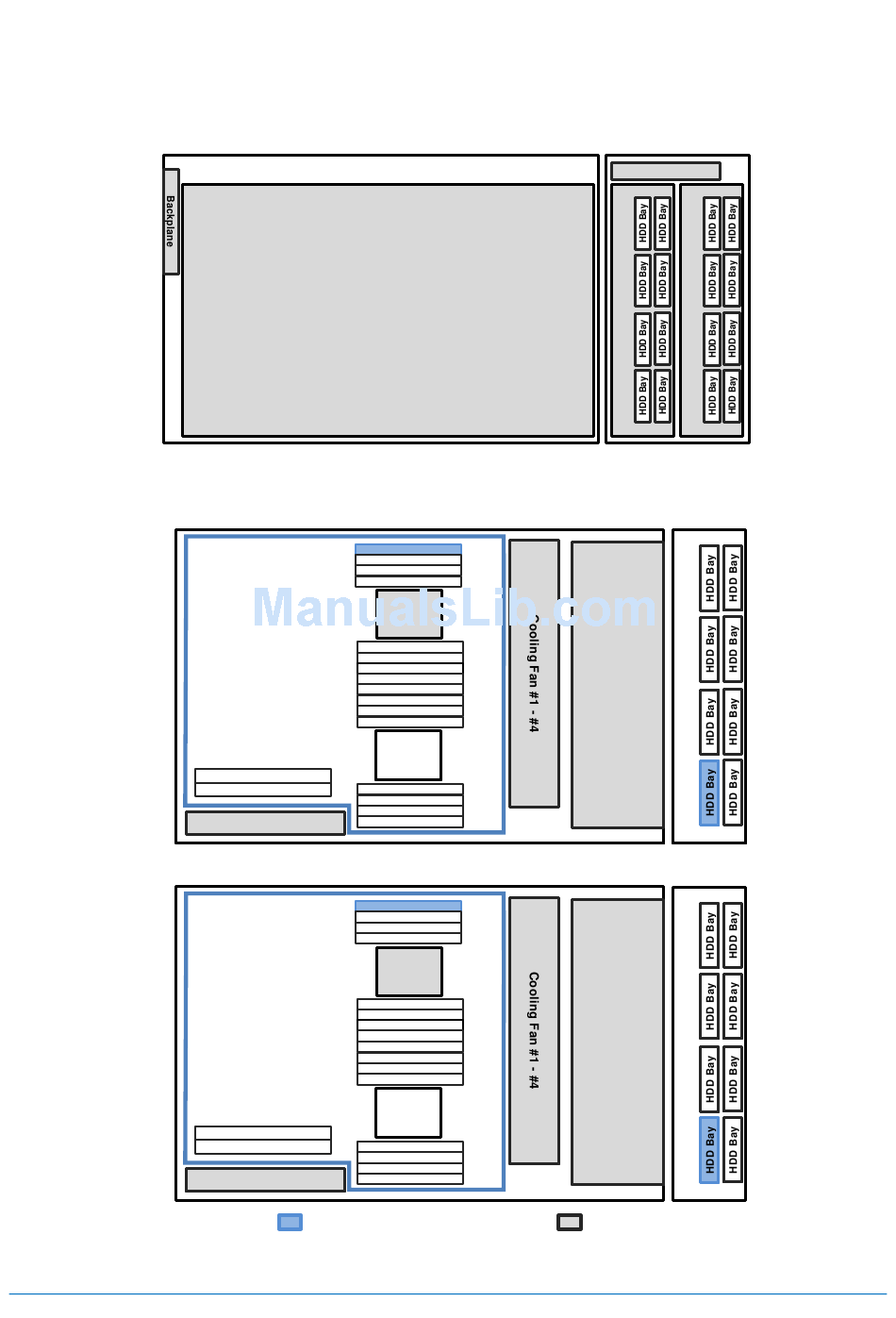

Configuration Diagram
Server
CHASSIS
REAR
CPU/IO Module
CHASSIS
REAR
NEC Corporation
–
NEC EXPRESS5800/R320c-E4 for Linux
CPU/IO Module
CPU/IO module #0 :
PCIe 2.0 x4 (x8 socket) LP
PCIe 2.0 x4 (x8 socket) LP
Power Supply
CPU/IO module #1 :
PCIe 2.0 x4 (x8 socket) LP
PCIe 2.0 x4 (x8 socket) LP
Power Supply
Legend:
Minimum required components
DIMM #1
DIMM #2
DIMM #3
DIMM #4
Processor
DIMM #8
DIMM #7
DIMM #6
DIMM #5
DIMM #9
DIMM #10
DIMM #11
DIMM #12
Processor
DIMM #16
DIMM #15
DIMM #14
DIMM #13
DIMM #1
DIMM #2
DIMM #3
DIMM #4
Processor
DIMM #8
DIMM #7
DIMM #6
DIMM #5
DIMM #9
DIMM #10
DIMM #11
DIMM #12
Processor
DIMM #16
DIMM #15
DIMM #14
DIMM #13
Revision 2.0, April 2015
Optical Drive Bay
Drive Cage
Drive Cage
Standard components
CHASSIS
FRONT
CHASSIS
FRONT
8
