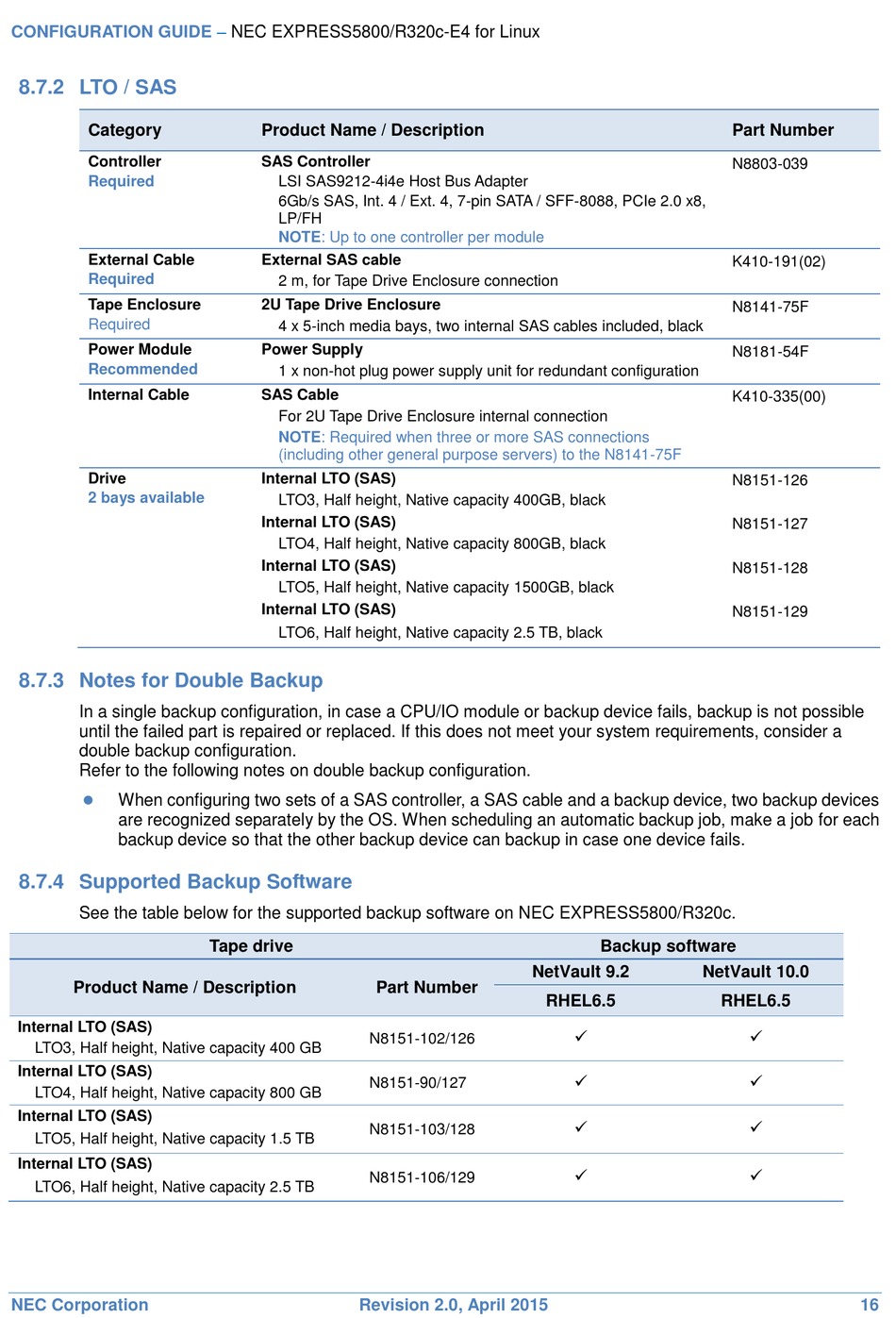

8.7.2 LTO / SAS
Category
Controller
Required
External Cable
Required
Tape Enclosure
Required
Power Module
Recommended
Internal Cable
Drive
2 bays available
8.7.3 Notes for Double Backup
In a single backup configuration, in case a CPU/IO module or backup device fails, backup is not possible
until the failed part is repaired or replaced. If this does not meet your system requirements, consider a
double backup configuration.
Refer to the following notes on double backup configuration.

When configuring two sets of a SAS controller, a SAS cable and a backup device, two backup devices
are recognized separately by the OS. When scheduling an automatic backup job, make a job for each
backup device so that the other backup device can backup in case one device fails.
8.7.4 Supported Backup Software
See the table below for the supported backup software on NEC EXPRESS5800/R320c.
Product Name / Description
Internal LTO (SAS)
LTO3, Half height, Native capacity 400 GB
Internal LTO (SAS)
LTO4, Half height, Native capacity 800 GB
Internal LTO (SAS)
LTO5, Half height, Native capacity 1.5 TB
Internal LTO (SAS)
LTO6, Half height, Native capacity 2.5 TB
NEC Corporation
–
NEC EXPRESS5800/R320c-E4 for Linux
Product Name / Description
SAS Controller
LSI SAS9212-4i4e Host Bus Adapter
6Gb/s SAS, Int. 4 / Ext. 4, 7-pin SATA / SFF-8088, PCIe 2.0 x8,
LP/FH
NOTE: Up to one controller per module
External SAS cable
2 m, for Tape Drive Enclosure connection
2U Tape Drive Enclosure
4 x 5-inch media bays, two internal SAS cables included, black
Power Supply
1 x non-hot plug power supply unit for redundant configuration
SAS Cable
For 2U Tape Drive Enclosure internal connection
NOTE: Required when three or more SAS connections
(including other general purpose servers) to the N8141-75F
Internal LTO (SAS)
LTO3, Half height, Native capacity 400GB, black
Internal LTO (SAS)
LTO4, Half height, Native capacity 800GB, black
Internal LTO (SAS)
LTO5, Half height, Native capacity 1500GB, black
Internal LTO (SAS)
LTO6, Half height, Native capacity 2.5 TB, black
Tape drive
Part Number
N8151-102/126
N8151-90/127
N8151-103/128
N8151-106/129
Revision 2.0, April 2015
Backup software
NetVault 9.2
RHEL6.5




Part Number
N8803-039
K410-191(02)
N8141-75F
N8181-54F
K410-335(00)
N8151-126
N8151-127
N8151-128
N8151-129
NetVault 10.0
RHEL6.5




16
