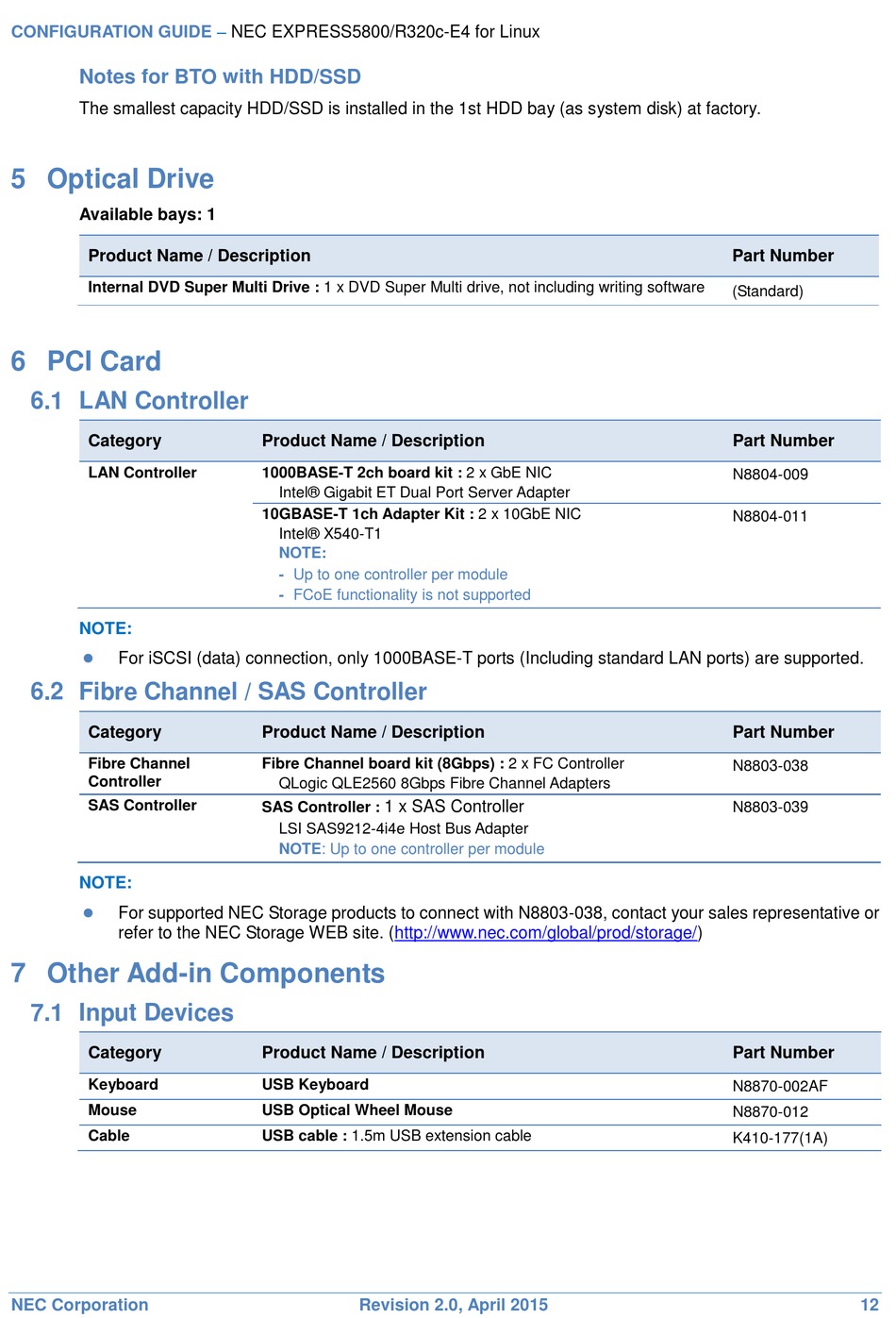

CONFIGURATION GUIDE
Notes for BTO with HDD/SSD
The smallest capacity HDD/SSD is installed in the 1st HDD bay (as system disk) at factory.

5 Optical Drive

Available bays: 1
Product Name / Description
Internal DVD Super Multi Drive : 1 x DVD Super Multi drive, not including writing software

6 PCI Card

6.1 LAN Controller

Category
LAN Controller
NOTE:

For iSCSI (data) connection, only 1000BASE-T ports (Including standard LAN ports) are supported.

6.2 Fibre Channel / SAS Controller

Category
Fibre Channel
Controller
SAS Controller
NOTE:

For supported NEC Storage products to connect with N8803-038, contact your sales representative or
refer to the NEC Storage WEB site. (http://www.nec.com/global/prod/storage/)

7 Other Add-in Components

7.1 Input Devices

Category
Keyboard
Mouse
Cable
NEC Corporation
–
NEC EXPRESS5800/R320c-E4 for Linux
Product Name / Description
1000BASE-T 2ch board kit : 2 x GbE NIC
Intel® Gigabit ET Dual Port Server Adapter
10GBASE-T 1ch Adapter Kit : 2 x 10GbE NIC
Intel® X540-T1
NOTE:
- Up to one controller per module
- FCoE functionality is not supported
Product Name / Description
Fibre Channel board kit (8Gbps) : 2 x FC Controller
QLogic QLE2560 8Gbps Fibre Channel Adapters
1 x SAS Controller
SAS Controller :
LSI SAS9212-4i4e Host Bus Adapter
NOTE: Up to one controller per module
Product Name / Description
USB Keyboard
USB Optical Wheel Mouse
USB cable : 1.5m USB extension cable
Revision 2.0, April 2015
Part Number
(Standard)
Part Number
N8804-009
N8804-011
Part Number
N8803-038
N8803-039
Part Number
N8870-002AF
N8870-012
K410-177(1A)
