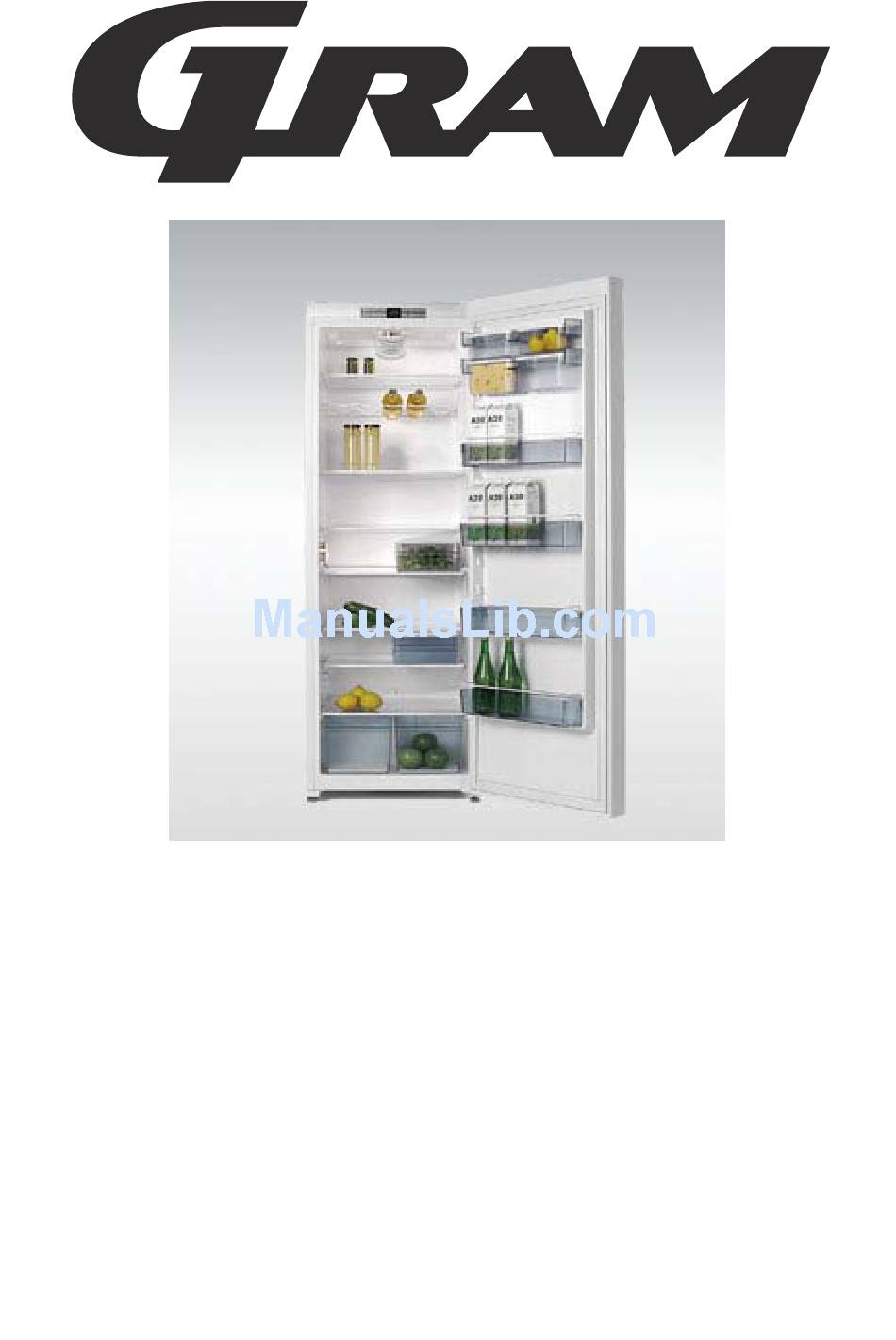

  • Page 1 KS 290-01 KS 360-01 KS 390-01 M60 Series Manual...
  • Page 2 CONGRATULATIONS ON YOUR NEW GRAM REFRIGERATOR. Congratulations on your new refrigerator. The refrigerator was developed taking the different storage requirements of food items into consideration. Some must be stored cold - others require a little higher temperature. A few must be stored separately so as not to impart flavour and odour to other items of food.

  • Page 3: Table Of Contents

    CONTENTS Important Information Transporting and moving the refrigerator If the refrigerator is not to be used for some time Warning Disposal Product Description Setting Up And Installation Where to place the refrigerator Building into a kitchen cabinet Building into a refrigerator cabinet Installation and ventilation diagrams Electrical connection Changing the door hinge over to the opposite side...
  • Page 4 Defrosting And Cleaning Automatic defrosting of the refrigerator Cleaning Cleaning of doors in stainless steel or aluminium GRAM Customer Care And Servicing Checklist Contact Details Spare Parts Your appliance details and specifications...

  • Page 5: Important Information

    IMPORTANT INFORMATION The refrigerator contains the environment-friendly, non-ozone depleting refrigerant R600a. As R600a is a flammable gas, it is important to avoid damage to the refrigeration circuit during transport and installation. If the refrigeration circuit is damaged, avoid using naked flame in the vicinity of the refrigerator and connecting power to refrigerator.

  • Page 6: If The Refrigerator Is Not To Be Used For Some Time

    Please observe the environmental rules on disposal. There might be special requirements/conditions to be observed. Information on disposal can be obtained from: - Gram A/S - Your white-goods supplier - Authorities (your local council, Ministry of the Environment, etc.)

  • Page 7: Product Description

    PRODUCT DESCRIPTION The refrigerator is intended for use in a normal household. It is designed for temperature class SN-T in accordance with European standard EN 153. This means that the refrigerator will run best at a room temperature of +10ºC to +43ºC. Control Panel Halogen Lamp Internal Circulating Fan...

  • Page 8: Setting Up And Installation

    SETTING UP AND INSTALLATION Where to place the refrigerator For safety reasons the refrigerator must not be installed outdoors; it must be placed in a dry room. Never place the appliance close to sources of heat such as cookers or radiators, and avoid placing it in direct sunlight.

  • Page 9: Building Into A Kitchen Cabinet

    Building into a kitchen cabinet Building into a kitchen cabinet with sufficient ventilation around the refrigerator to dissipate heat from the compressor. The appliance can stand direct on the floor or on its plinth. (12) Building into a refrigerator cabinet Building into a refrigerator cabinet follows the same principal as shown in illustration 12.

  • Page 10: Installation And Ventilation Diagrams

    Installation And Ventilation Diagrams The measurements below is a guideline only. The degree of the door opening shows the minimum requirement to easily access the storage bins. (14 & 15) 10mm+ 35-50mm+ 10mm+ 110º 110º 5mm+ 1mm+ 40-60mm+ 35-50mm+ 110º 10mm+...

  • Page 11: Electrical Connection

    Electrical connection The appliance is intended for connection to alternating current. The connection values for voltage (V) and frequency (Hz) are given on the nameplate inside the cabinet. Power must be connected via a wall socket with switch. The wall socket should be easily accessible.

  • Page 12: Changing The Door Hinge Over To The Opposite Side

    Changing the door hinge over to the opposite side Illustrations 16-21 over the page, show how easy it is to change the doors from right-hinged to left-hinged, or vice versa. (Changing the door from left to right is done in the same way, but opposite). Top and bottom left hand hinges and accessories are supplied in the parts kit.

  • Page 14: Using The Refrigerator

    USING THE REFRIGERATOR Refrigerator’s ON switching button. Refrigerator’s OFF switching button. Green light-emitting LED signalling that refrigerator’s chamber has been switched on. “COOL” button. Display showing the set temperature, and alarm status codes. Button for displaying the real temperature inside the 6, 7 refrigerator’s chamber.

  • Page 15: Electronic Control

    Electronic Control The refrigerator is equipped with electronic control. The control panel is concealed behind the refrigerator door. The refrigerator has been factory set to operate at optimum temperature, i.e. +5ºC. If you wish to change the preset temperature, the new setting will be stored in the electronic control.

  • Page 16: Replacing The Bulb

    Replacing the bulb Switch off the refrigerator by pressing button (2) and unplug the mains lead from the wall socket. Remove the cover. Replace the bulb with a new one (max. 10watt, 12Volt, halogen base G4). Refit the cover, re-connect the power supply and restart the refrigerator by pressing button I (1).

  • Page 17: Temperature Regulation

    Temperature regulation The temperature in the refrigerator’s chamber can be set within the temperature range from +2ºC up to +9ºC. When pressing and holding the “COOL” button (4), the set temperature will be shown on the display. When pressing the button (6) or button (7) it is possible to modify the setting of the temperature inside the...

  • Page 18: Super Refrigerating Function

    Super refrigerating function - The first pressing of the buttons (11) + (4) switches on the blue light-emitting LED (8) and activates quick cooling down of the re- frigerator’s chamber to the temperature of approximately 1ºC (the continuous operation of the compressor), after the temperature of 1ºC has been reached the function automatically disables and the equipment switches into a normal cyclic operation restoring the lat- est temperature set for the refrigerator.

  • Page 19: Display Brightness Adjustment

    Display brightness adjustment By pressing and holding the pushbutton (11) and: - pressing at the same time the pushbutton (6), the display brightness increases. - pressing at the same time the pushbutton (7), the display brightness decreases. When adjusting the display brightness, the display shows the following indications: 1.8 - minimum brightness 2.8 - medium brightness...

  • Page 20: Alarms

    ALARMS Normal use of the refrigerator may cause different situations leading to interruption of various functions and unstable operation of the entire equipment as a consequence. These interruptions are shown on the display as the alarm code (an “E” followed by a number) and signalled by the acoustic alarm.

  • Page 21: Using The Refrigerator's Accessories

    USING THE REFRIGERATOR’S ACCESSORIES Glass shelves The glass shelves can be arranged to give more, or less space between the shelves thus allowing flexible cabinet arrangement (23 and 24). Extract the shelf by lifting up the left shelf side (25). Start by removing the top shelf when you want to clean the refrigerator or rearrange the shelves.

  • Page 22: Defrosting And Cleaning

    In these instances, manual defrosting is required. Although Gram refrigeration products are generally very quiet, it is normal for certain noises to be heard during operation, e.g. gurgling, cracking, knocking etc…...

  • Page 23: Cleaning

    Cleaning of doors in stainless steel or aluminium Stainless steel or aluminium doors on GRAM products can, with advantage, be cleaned with a spray and a soft cloth. There are a number of different spraying agents for this purpose on the market.

  • Page 24: Gram Customer Care And Servicing

    GRAM CUSTOMER CARE & SERVICING Checklist If you discover a problem with your refrigerator, please refer to the following points before contacting your supplier for assistance. PROBLEM POSSIBLE CAUSES WHAT TO DO Refrigerator does *No electricity to the power *Check the plug is connected operate.

  • Page 25: Contact Details

    PROBLEM POSSIBLE CAUSES WHAT TO DO Water found in the bottom *Blocked drain hole. *Clear drain hole with the of the refrigerator. cleaning pin supplied. *Food or packaging touching *Re-position food items away from the rear of the refrigerator the rear of the refrigerator. (evaporator plate).

  • Page 26: Your Appliance Details And Specifications

    This warranty is valid in New Zealand only. Terms and conditions: In this warranty (a) ‘Refrigerator’ means any ‘Gram’ or ‘Elcold’ energy efficient refrigerator or freezer accompanied by this document which is purchased from a Dealer authorised by Independent Power (NZ) Limited;...

  • Page 27: Limitation Of Liability

    representatives of the Authorised Service Agent to your home. If you are outside an Independent Power (NZ) Limited service area, you will bear these costs. For information about whether you are in an Independent Power (NZ) Limited service area please check our website http://www.indepower.co.nz You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship.
  • Page 28 NORTH SHORE CITY 0753 NEW ZEALAND Ph: +64 9 415 6686 Fax: +64 9 415 6685 www.indepower.co.nz Gram A/S Importeur Belgie Importeur Nederland Gram Finland OY Aage Grams Vej 1 Gebr. Bruyninckx N.V. Magee b.v. Sinikalliontie 3b DK-6500 Vojens Kerksstreet 8g Postbus 88...
