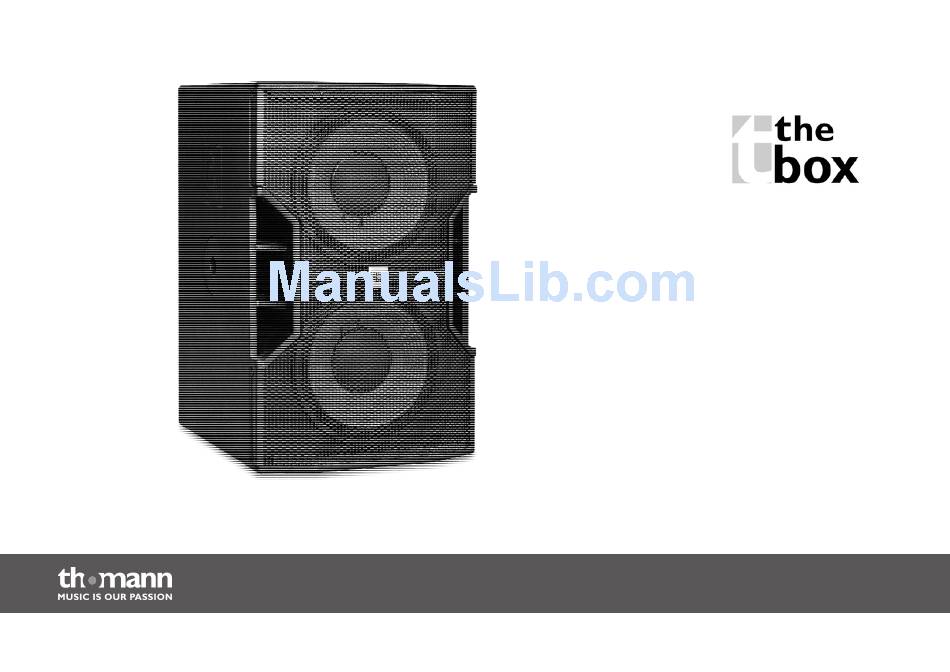

- Page 1 Pyrit 212 Sub passive subwoofer user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 24.07.2014, ID: 299665...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features................................9 Installation..............................10 4.1 Tips on handling speakers......................12 Connections............................... 13 Technical specifications........................14 Protecting the environment......................15 Pyrit 212 Sub... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. Pyrit 212 Sub...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 7 If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. Pyrit 212 Sub...
- Page 8 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. passive subwoofer...
-
Page 9: Features
Features Special features of this passive subwoofer: Connections: 2 lockable NL4 sockets (1+/1–) Each one pole mount flange (36 mm) on top and left side of the housing Two carrying handles Black textured coating Powder-coated front grille Pyrit 212 Sub... -
Page 10: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. NL4 chassis connectors for The drawing alongside shows the pin assignment of the lockable NL4 chassis connectors. speaker connections Pyrit 212 Sub...
-
Page 12: 4.1 Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 13: Connections
Connections Connections 1 Lockable NL4 input connection (1+/1–). 2 Lockable NL4 output connection (1+/1–) for an additional speaker, wired in parallel to the input. Pyrit 212 Sub... -
Page 14: Technical Specifications
Technical specifications Technical specifications Speakers 2 × 12" woofer (4" voice coil) Power handling 1000 W (RMS) / 4000 W (PEAK) Impedance 4 Ω Sound pressure level 132 dB / 1 m (max.) Sensitivity 96 dB (1 W / 1 m) Frequency response 31.5 Hz …... -
Page 15: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Pyrit 212 Sub... - Page 16 Notes passive subwoofer...
- Page 17 Notes Pyrit 212 Sub...
- Page 18 Notes passive subwoofer...
- Page 20 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
