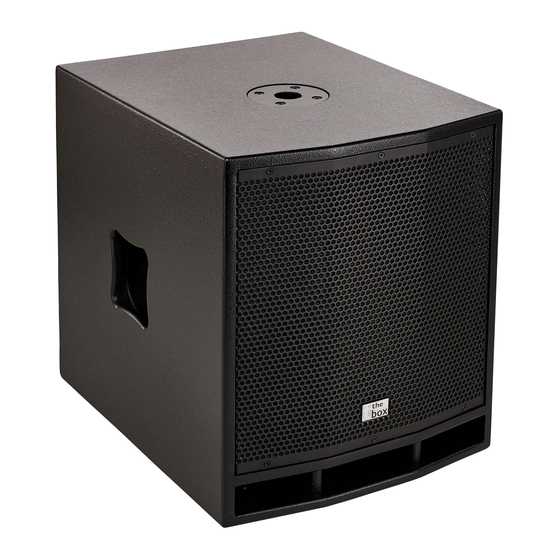

The box CL 112 User Manual

Active subwoofer
Hide thumbs Also See for CL 112:

Advertisement

Table of Contents

CL 112 / CL 115 SUB
active subwoofer
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL 112 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for The box CL 112

Summary of Contents for The box CL 112

  • Page 1 CL 112 / CL 115 SUB active subwoofer user manual...
  • Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 29.04.2013...

  • Page 3: Table Of Contents

    Table of contents General notes............................... 4 Safety instructions............................. 7 Features............................... 11 Installation..............................12 4.1 Tips on handling speakers......................14 Connections and operating elements................... 15 Technical specifications........................19 Plug and connection assignments....................21 Protecting the environment......................25 CL 112 / CL 115 SUB...

  • Page 4: General Notes

    General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual.
  • Page 5 NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. CL 112 / CL 115 SUB...
  • Page 6 General notes Warning signs Type of danger Warning – danger zone. active subwoofer...

  • Page 7: Safety Instructions

    Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. CL 112 / CL 115 SUB...
  • Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
  • Page 9 If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. CL 112 / CL 115 SUB...
  • Page 10 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.

  • Page 11: Features

    Inputs: XLR and 1/4" phone sockets Outputs: NL4 chassis connector for passive speakers (top) 15" woofer (item no. 109892) 12" woofer (item no. 109893) 36 mm pole mount flange Butterfly handles Transport casters PU coated Protective cover optionally available CL 112 / CL 115 SUB...

  • Page 12: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 13 NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. CL 112 / CL 115 SUB...

  • Page 14: 4.1 Tips On Handling Speakers

    Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.

  • Page 15: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Rear panel CL 112 SUB CL 112 / CL 115 SUB...
  • Page 16 Connections and operating elements Rear panel CL 115 SUB active subwoofer...
  • Page 17 This LED lights up red when the unit switches to protection mode. In this case, check the cables for short circuit or incorrect connection. If this LED lights up constantly, please contact our Service Centre. Find the contact data at www.thomann.de. CL 112 / CL 115 SUB...
  • Page 18 Connections and operating elements 6 Phone sockets INPUT RIGHT / INPUT LEFT Inputs for balanced or unbalanced line level signals. 7 XLR sockets INPUT RIGHT / INPUT LEFT Inputs for balanced signals with line level. 8 NL4 chassis connectors SAT POWER OUT RIGHT / SAT POWER OUT LEFT Speaker outputs.

  • Page 19: Technical Specifications

    Technical specifications Technical specifications CL 112 Sub (item no. 109893) CL 115 Sub (item no. 109892) System Active subwoofer Speakers 1 × 12" woofer 1 × 15" woofer Inputs XLR sockets (balanced) 1/4" phone sockets (balanced or unbalanced) Outputs Lockable NL4 chassis connectors (1+/1-) min.
  • Page 20 Technical specifications CL 112 Sub (item no. 109893) CL 115 Sub (item no. 109892) Operating supply voltage AC 220 – 240 V , 50/60 Hz Power consumption 600 W 1000 W Fuse 3.15 A / 250 V, slow-blow, 5 × 20 mm 5.0 A / 250 V, slow-blow, 5 ×...

  • Page 21: Plug And Connection Assignments

    In addition to the conduc‐ tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers the signal, but phase-shifted by 180°. CL 112 / CL 115 SUB...
  • Page 22 Plug and connection assignments Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4"...
  • Page 23 Plug and connection assignments 1/4" TRS phone plug (stereo, unbalanced) Signal (left) Signal (right) Ground XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) CL 112 / CL 115 SUB...
  • Page 24 Plug and connection assignments XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 NL4 connections 1, + Signal 1 (in phase) 1, – Signal 1 (out of phase) active subwoofer...

  • Page 25: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. CL 112 / CL 115 SUB...
  • Page 26 Notes active subwoofer...
  • Page 28 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
