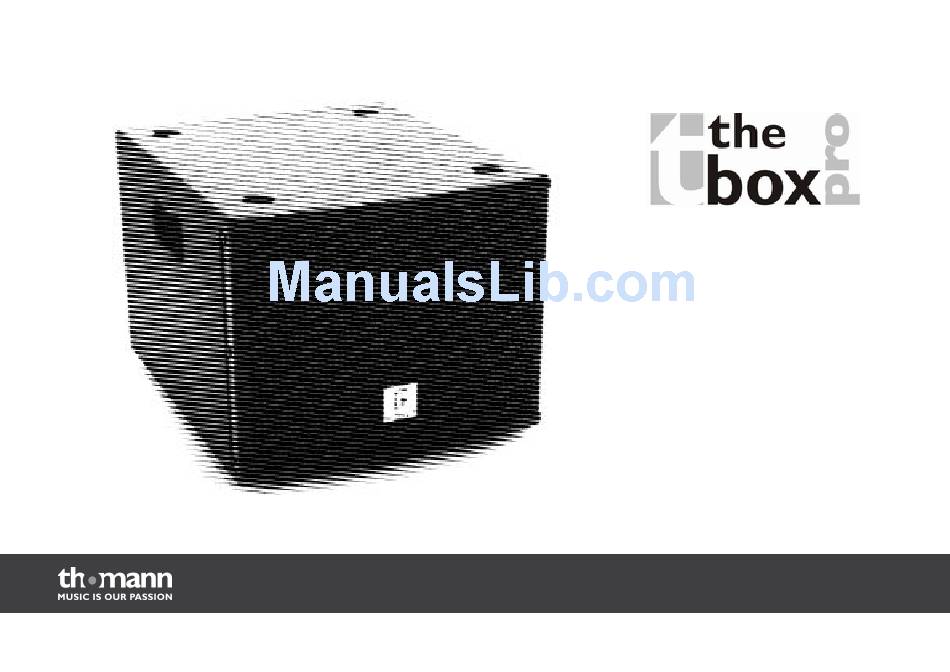

- Page 1 ACHAT 108 SUBA active subwoofer user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 email: info@thomann.de Internet: www.thomann.de 17.01.2012...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 7 Features............................... 11 Installation and starting up........................ 12 4.1 Pin assignment..........................13 4.2 Tips on handling speakers......................16 Connections and operating elements................... 17 Technical specifications........................20 Protecting the environment......................22 ACHAT 108 SUBA... -
Page 4: General Notes
General notes General notes This user manual contains important information on the safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to another user, be sure that they also receive this manual. - Page 5 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a possible dangerous situation that can result in minor injury if it is not avoided.
- Page 6 General notes Warning signs Type of danger Warning – danger zone. active subwoofer...
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
- Page 9 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 10 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
-
Page 11: Features
Features Features Special features of the device: Inputs: XLR/1/4" combi sockets, RCA sockets Outputs: 2 lockable NL4 mounting connectors for passive speaker boxes (top) 8" woofer Volume and bass control Black textured coating ACHAT 108 SUBA... -
Page 12: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 13: Pin Assignment
Installation and starting up 4.1 Pin assignment NL4 mounting connectors as The drawing alongside shows the pin assignment of the lockable NL-4 mounting connectors. speaker connectors ACHAT 108 SUBA... - Page 14 Installation and starting up 1/4" jack socket as signal inputs Drawing and table indicate the pin assignment of 1/4" TS jacks to be used with the unit. Signal Ground, shielding XLR connectors as signal inputs XLR/1/4" combi sockets (balanced wiring) as signal inputs. Drawing and table indicate the pin assignment of XLR plugs to be used with the unit.
- Page 15 Installation and starting up RCA connectors as signal inputs Drawing and table indicate the pin assignment of RCA plugs to be used with the unit. Signal Ground, shielding ACHAT 108 SUBA...
-
Page 16: Tips On Handling Speakers
Installation and starting up 4.2 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 17: Connections And Operating Elements
Connections and operating elements Connections and operating elements ACHAT 108 SUBA... - Page 18 Connections and operating elements 1 POWER This pilot lamp indicates that the device is switched on and operational. 2 SIG This pilot lamp indicates an incoming input signal. 3 CLIP Indicates overloading (Clipping). In this case the level of the input signal is too high. 4 BASS Use this control to increase or attenuate the low frequencies.
- Page 19 Connections and operating elements 7 INPUT RCA jacks as signal inputs. 8 INPUT XLR/1/4" combi sockets as signal inputs. 9 OUTPUT NL4 sockets as connections for a pair of passive speakers. 10 IEC chassis connector with fuse holder for operating voltage supply. 11 POWER Mains switch to power the unit on and off.
-
Page 20: Technical Specifications
Technical specifications Technical specifications Inputs XLR/1/4" combi sockets (balanced), RCA sockets (unbalanced) Input impedance 20 kΩ (balanced), 10 kΩ (unbalanced) Outputs Lockable NL4 mounting connectors Frequency response 40…125 Hz Output power 100 W (RMS) for built-in speaker 2 × 60 W (RMS) @ 4 Ω Passive speaker output (top) Crossover frequency 120 Hz... - Page 21 Technical specifications Dimensions (W × D × H) 360 mm × 300 mm × 435 mm Weight 11.5 kg ACHAT 108 SUBA...
-
Page 22: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery. - Page 24 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
