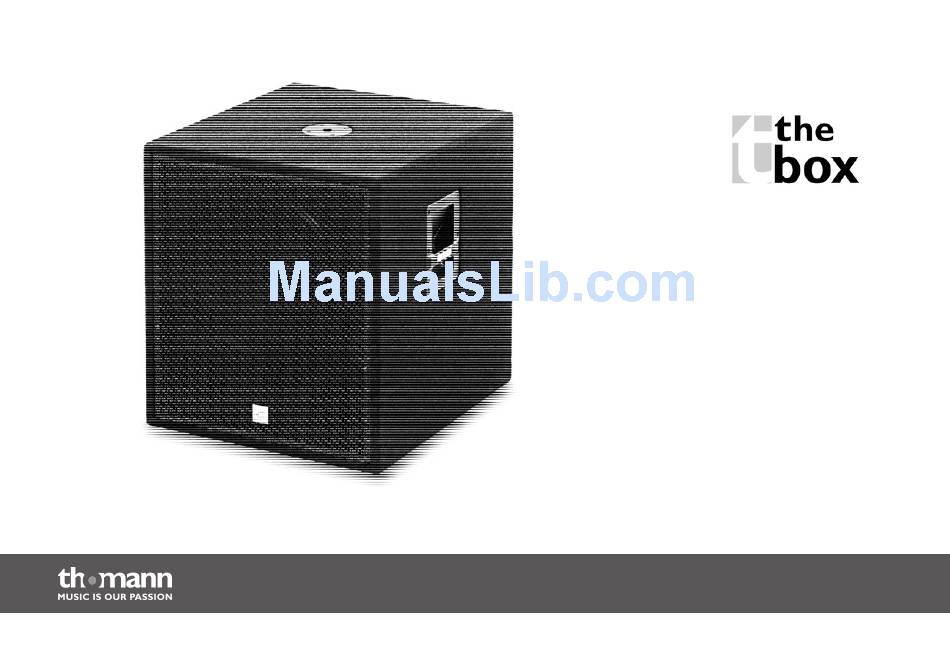

- Page 1 PA18 ECO MKII passive subwoofer user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 15.01.2015, ID: 339669...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 10 Installation..............................11 4.1 Tips on handling speakers......................13 4.2 Connections............................14 Technical data............................17 Protecting the environment...................... -
Page 4: General Notes
General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
-
Page 10: Features
Features Features Special features of this passive subwoofer: Connections: 3 lockable NL4 sockets (1+/1–) Built-in crossover Pole mount flange, (M20), on topside Black felt coating passive subwoofer... -
Page 11: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 12 Installation NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. passive subwoofer...
-
Page 13: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 14: Connections
Installation 4.2 Connections passive subwoofer... - Page 15 Installation 1 [INPUT] Lockable NL4 connector for signal input (1+/1–). 2 [THRU] Lockable NL4 output connector (1+/1–) to connect another speaker, wired in par‐ allel. 3 [TOP] Lockable NL4 connector (1+/1–) for crossover output to connect a mid-high driver, for example. PA18 ECO MKII...
- Page 16 Installation NL4 mounting connectors for The adjoining figure shows the pin assignment of the lockable NL4 panel connectors. speaker connections passive subwoofer...
-
Page 17: Technical Data
Technical data Technical data Configuration 1 × 18 in. woofer Power handling 425 W (RMS), 1700 W (peak) Impedance 8 Ω Maximum SPL 100 dB Frequency range 40 Hz … 250 Hz (–3 dB) Dimensions (W × H × D) 600 mm ×... -
Page 18: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 20 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
