Summary of Contents for The box Achat 118 A

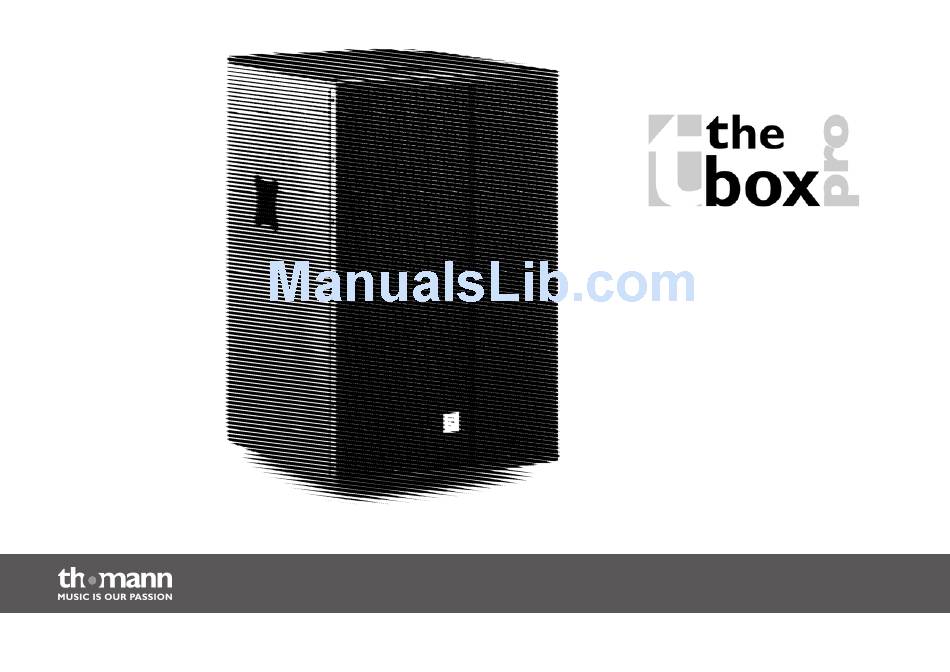

- Page 1 Achat 118 A active subwoofer user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 20.10.2014, ID: 325265...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 7 Features............................... 11 Installation..............................12 4.1 Tips on handling speakers......................14 Connections and operating elements................... 15 Technical specifications........................18 Plug and connection assignment....................19 Protecting the environment......................21 Achat 118 A... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner. - Page 5 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Achat 118 A...
- Page 6 General notes Warning signs Type of danger Warning – suspended load. Warning – danger zone. active subwoofer...
-
Page 7: Safety Instructions
Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. Achat 118 A... - Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord). Do not modify the mains cable.
- Page 9 If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. Achat 118 A...
- Page 10 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
-
Page 11: Features
Special features of this powerful horn-loaded bass speaker for touring applications: Connectivity options: XLR input / output and XLR top output Two M20 flange adapter (1 x top, 1 × lateral) Attachment option for optional casters Black textured paint Achat 118 A... -
Page 12: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 13 Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. Achat 118 A...
-
Page 14: 4.1 Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 15: Connections And Operating Elements
Connections and operating elements Connections and operating elements Achat 118 A... - Page 16 Connections and operating elements 1 [VOLUME] Volume control. 2 [HIGH CUT ] Controller for adjusting the frequency of the high pass filter in a range of 55 to 200 Hz. 3 [PHASE ] If necessary, this switch shifts the phase of the subwoofer signal by 180 °. This avoids unwanted cancellation effects in combination with other speakers.
- Page 17 [AC INPUT]. You can use it to feed the power supply to the blue powerCON input sockets [AC INPUT] of further ele‐ ments. 10 [AC INPUT] Blue lockable powerCON input socket (NAC3FA). 11 [POWER ON/OFF] Mains switch to turn the device on and off. Achat 118 A...
-
Page 18: Technical Specifications
Technical specifications Technical specifications System Active horn-loaded subwoofer Speakers 1 × 18" woofer Output power 1300 W (RMS) Impedance 8 Ω Maximum sound pressure level 135 dB (peak) 104 dB (1 W/1 m) Frequency response 37 Hz … 150 Hz (-3 dB) Dimensions (W ×... -
Page 19: Plug And Connection Assignment
In a professional environment, therefore, the balanced transmission is preferred, because this enables an undisturbed transmission of signals over long distances. In addition to the conduc‐ tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers the signal, but phase-shifted by 180°. Achat 118 A... - Page 20 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) XLR plug (unbalanced) Ground, shielding...
-
Page 21: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Achat 118 A... - Page 22 Notes active subwoofer...
- Page 24 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
