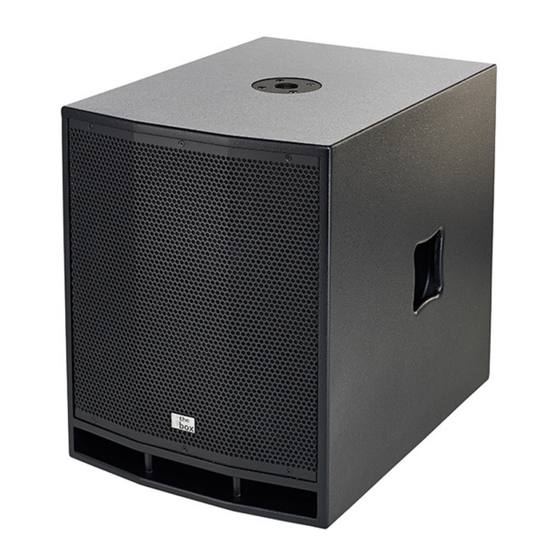

- Page 1 CL 112 / CL 115 / CL 118 SUB MKII Active Speaker...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 31.10.2024, ID: 341323, 341324, 341325 (V3)
- Page 3 Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features............................... 10 Installation..............................11 4.1 Tips on handling speakers......................12 Connections and controls........................13 Technical specifications........................17 Plug and pin assignments........................20 Protecting the environment......................
- Page 4 CL 112 / CL 115 / CL 118 SUB MKII Active Speaker...
- Page 5 General information General information This document contains important instructions for the safe operation of the product. Read and follow the safety instructions and all other instructions. Keep the document for future refer‐ ence. Make sure that it is available to all those using the product. If you sell the product to another user, be sure that they also receive this document.
- Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 7 Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
- Page 8 Safety instructions DANGER! Danger to life due to electric current! Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. WARNING! Possible hearing damage due to operating the device at a high volume! The device can produce volume levels that, when operated at a high volume, may cause temporary or permanent hearing impair‐...
- Page 9 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sun‐ light, heavy dirt and strong vibrations.
- Page 10 Features Features Special features of the device: 12-inch, 15-inch or 18-inch woofer (depending on the model) 2 × line input (XLR/jack combo socket) 2 × line input (cinch socket; only item nos. 341324 and 341325) 2 × direct out (XLR panel plug, 3-pin; only item nos. 341324 and 341325) 2 ×...
- Page 11 Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
- Page 12 Installation NOTICE! Possible property damage to adjacent devices due to magnetic fields. Speakers generate a static magnetic field. This magnetic field can affect other neighbouring units and in unfavourable cases damage them. Ensure that speakers are always a sufficient distance away from sensitive equip‐ ment that may be affected by an external magnetic field.
- Page 13 Connections and controls Connections and controls Back CL 112 SUB MKII (item no. 341323) CL 112 SUB MKII ö PROTECT MAIN LEVEL 0° PHASE 180° LEVEL & POWER RIGHT LEFT INPUT PUSH PUSH RIGHT LEFT POWER POWER 230V~50Hz FUSE T3.15AL 250V MAX.
- Page 14 Connections and controls 1 [PROTECT] | This LED lights up red when the device switches to protection mode. In this case, check the cables for short cir‐ cuit or a faulty connection. If this LED lights up constantly, please contact our service centre. Contact details can be found at www.thomann.de.
- Page 15 Connections and controls Back CL 115 SUB MKII (item no. 341324), CL 118 SUB MKII (item no. 341325) ö $ &'() CL 11x SUB MKII POWER POWER MAIN PROTECT LEVEL PHASE LEVEL 230V~50Hz FUSE T5.0AL 250V REPLACE FUSE AS MARKED MAX.
- Page 16 Connections and controls 1 [POWER] | Main switch. Turns the device on and off. 2 Rubber panel plug with fuse holder for the power supply 3 [SAT OUT RIGHT | LEFT] | Lockable Speaker Twist panel plugs for connecting further passive speakers 4 [POWER] | This LED indicates that the device is switched on and operational.
- Page 17 Technical specifications Technical specifications CL 112 SUB MKII CL 115 SUB MKII CL 118 SUB MKII (item no. 341323) (item no. 341324) (item no. 341325) System Active woofer Amplifier class A (analogue) Configuration 1 × 12-inch speaker (ferrite) 1 × 15-inch speaker (ferrite) 1 ×...
- Page 18 Technical specifications CL 112 SUB MKII CL 115 SUB MKII CL 118 SUB MKII (item no. 341323) (item no. 341324) (item no. 341325) Sensitivity (1 W/1 m) 97 dB SPL 99 dB SPL Rated impedance for satellites min. 4 Ω...
- Page 19 Technical specifications Further information CL 112 SUB MKII CL 115 SUB MKII CL 118 SUB MKII (item no. 341323) (item no. 341324) (item no. 341325) Design Bass reflex Truss-capable Pole stand flange 36 mm Casters Housing material Wood Colour Black...
- Page 20 Plug and pin assignments Plug and pin assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
- Page 21 Plug and pin assignments 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground 1/4" TRS phone plug (stereo, unbalanced) Signal (left) Signal (right) Ground CL 112 / CL 115 / CL 118 SUB MKII Active Speaker...
- Page 22 Plug and pin assignments XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding Speaker Twist connector Signal 1 (in phase) 1–...
- Page 23 Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
- Page 24 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) as amended. Do not dispose of your old device with your normal household waste; instead, deliver it for controlled disposal by an approved waste disposal firm or through your local waste facility.
- Page 25 Notes CL 112 / CL 115 / CL 118 SUB MKII Active Speaker...
- Page 26 Notes CL 112 / CL 115 / CL 118 SUB MKII Active Speaker...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
