JK Audio INLINE PATCH User Manual
Telephone audio interface
Hide thumbs
Also See for INLINE PATCH:
- User manual (6 pages) ,
- User manual (12 pages) ,
- User manual (16 pages)
Related Manuals for JK Audio INLINE PATCH
Summary of Contents for JK Audio INLINE PATCH

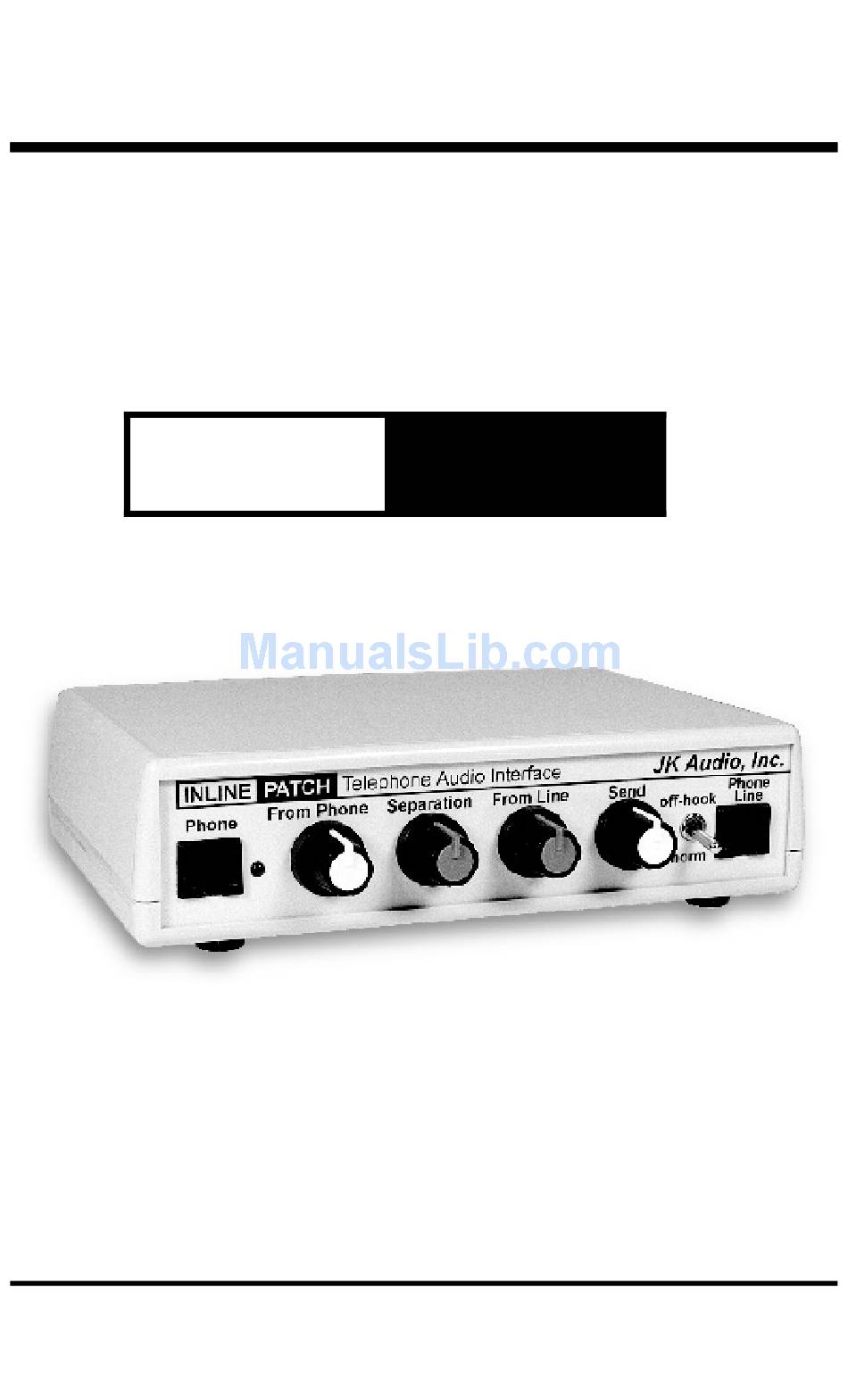

- Page 1 JK Audio INLINE PATCH PATCH Telephone Audio Interface Telephone Interface Products...
- Page 2 Description The Inline Patch gives you access to the audio from both sides of your telephone call. Simply install this little box “inline” between the telephone wall jack and the base of your telephone. You can use any single-line residential (analog) corded or cordless telephone or if available the data / modem port on a digital or PBX telephone.
- Page 3 Setup for use with residential / analog telephones: Unplug the telephone cord from the base of your telephone. Plug that telephone cord into the jack on the Inline Patch marked “Phone Line”. Using the telephone cable we have provided, plug one end into your Inline Patch marked ‘Phone”...
- Page 4 Setup for use with PBX phone systems is the same as analog telephones with one exception. Instead of connecting the phone line jack of the Inline Patch to a wall jack, you will connect to the data / modem jack of your PBX phone. You will still need a regular analog telephone connected to the phone jack of the inline patch.
- Page 5 Operating (continued) Output Jacks The Inline Patch has three audio output jacks on the back panel. The 3.5 mm “stereo” jack has the phone line audio on the left channel and your voice on the right channel. The second 3.5 mm jack has both sides of the call combined on both left and right channels.
- Page 6 Operating (continued) The hybrid circuitry in the Inline Patch can provide a nominal 20 dB of transmit / receive isolation. When using the stereo jack with stereo speakers, the 20 dB isolation will give you substantial left / right separation. The separation on FM stereo is typically around 20 dB.
-
Page 9: Specifications
Specifications Inputs (to phone line): Balanced Connector Female XLR Input Impedance 1 k ohms Level 250 mV RMS (-10 dBm nom.) Line Connector 1/8” (3.5mm) mono mini jack Input Impedance 20 k ohms Level 250 mV RMS (-10 dBm nom) Outputs: Balanced Connector... -
Page 10: Fcc Registration
FCC Registration Your new JK Audio product has been registered with the Federal Communications Commission (FCC). This product complies with the standards in Part 68 of the FCC rules. Connection and use with the nationwide telephone network The FCC requires that you connect this telephone equipment to the national telephone network through a USOC RJ-11C modular telephone jack. - Page 11 FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you'll be notified by your telephone company.
-
Page 12: Warranty
Warranty Inline Patch is covered by a 2 year warranty to be free from defective workmanship and materials. In the event that the Inline Patch needs repair, you must call us to get an authorization, and then carefully pack and ship it to us. You will pay for shipping to us and we will pay for return back to you, UPS ground.
