KitchenAid ELECTRIC SLIDE-IN 9751596 Installation Instructions Manual

30” (76.2 cm) electric slide-in range with self-cleaning thermal/convection oven.
Hide thumbs


Advertisement

HOME APPLIANCES
Part No. 9751596
ALL RANGES CAN TIP
l
INJURY TO PERSONS
COULD RESULT
l
INSTALL ANTI-TIP
DEVICE PACKED
WITH RANGE
l
SEE INSTALLATION
INSTRUCTIONS
IMPORTANT:
Read and save
these instructions.
IMPORTANT:
Installer:
Leave Installation
Instructions
with the
homeowner.
Homeowner:
Keep Installation
Instructions
and anti-tip
bracket template for future reference.
Save
Installation
Instructions
for local electrical
inspector's use.
30" (76.2 cm)
Electric Slide-in
Range
with self-cleaning
thermal/convection
oven

Advertisement

   Related Manuals for KitchenAid ELECTRIC SLIDE-IN 9751596

   Summary of Contents for KitchenAid ELECTRIC SLIDE-IN 9751596

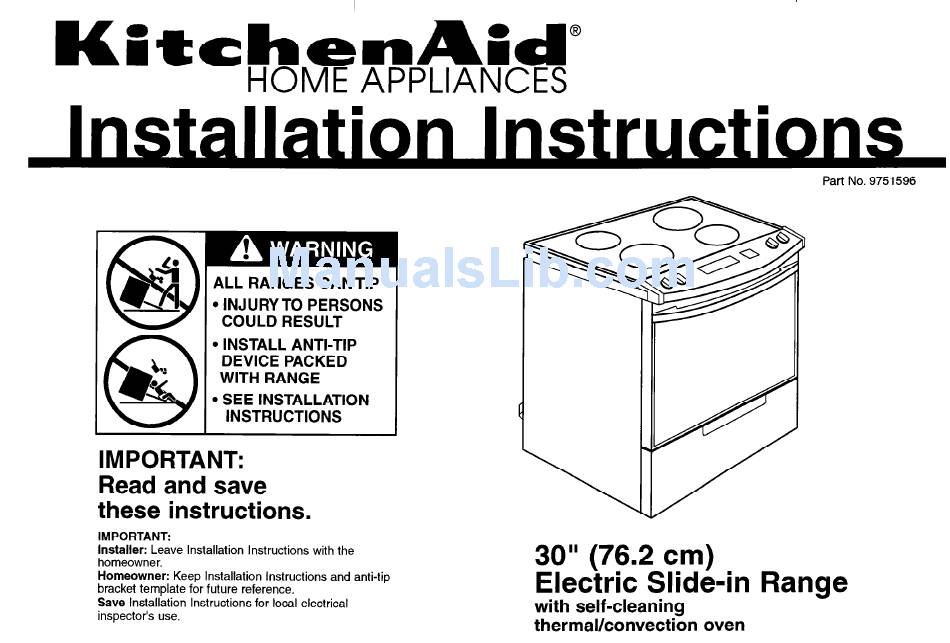

  • Page 1

    HOME APPLIANCES ALL RANGES CAN TIP INJURY TO PERSONS COULD RESULT INSTALL ANTI-TIP DEVICE PACKED WITH RANGE SEE INSTALLATION INSTRUCTIONS IMPORTANT: Read and save these instructions. IMPORTANT: Installer: Leave Installation Instructions with the homeowner. Homeowner: Keep Installation Instructions and anti-tip bracket template for future reference.

  • Page 2

    Cabinet opening dimensions 25” (63.5 cm) countertop upper cabinet 18” (45.7 cm) 4” (10 2 cm) min clearance to side will A or other combustible material of range. Important: Observe all governing codes and ordinances. -H 3 718” (2:2%) Grounded electrical H min.

  • Page 3

    Tools needed for installation: flat-blade screwdriver or-5116” (0.8 cm) nut hand or electric drill wood floor: l/8” (0.3 cm) drill bit concrete/ceramic floor: 3/16” (0.48 cm) carbide- tipped masonry drill bit Parts supplied installation: (Bracket must be securely mounted to sub- floor.

  • Page 4

    Turn power supply off. Electrical Shock Hazard Do Not use two wire with a bare grounding wire. All current-carrying wires must be insulated. Failure to follow these instructions could result in fire, electrical shock or death. II I hook’ Figure 9 Direct wire preparation Strip outer covering back 3 inches (7.6 cm) from end exposing the wires.

  • Page 5

    Using the 3/8” (0.95 cm) brass nuts, attach the neutral (white) of power supply cable to the silver-colored center screw of the terminal block. Place the hook-shaped end of the wire over the terminal block screw with open side of the hook facing to the right.

  • Page 6

    Look through the oven window. The top element should glow red. Press the “Cancel/OFF” pad. To get the most efficient use from your new electric range, read your KitchenAid Use and Care Guide. Keep Installation Instructions and Guide close to the electric range for easy reference.

  • Page 7

    If you need service... In the event that your KitchenAid appliance should need service, call the dealer from whom you purchased the appliance or a KitchenAid- authorized service company. A KitchenAid-...
