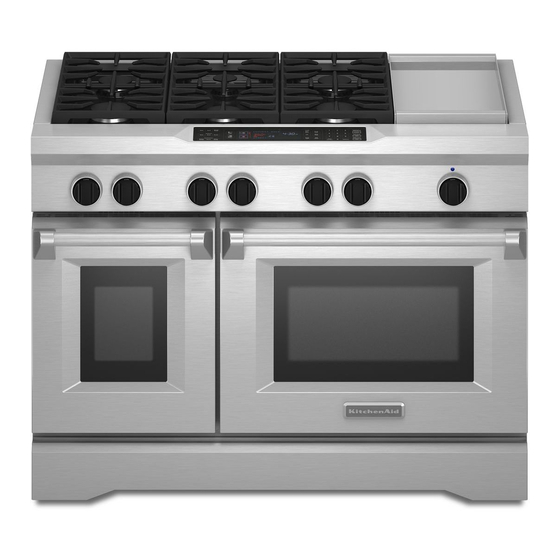

COMMERCIAL-STYLE DUAL FUEL
CONVECTION RANGES USE AND CARE GUIDE
CUISINIÈRES À CONVECTION À
BI-COMBUSTIBLE DE STYLE COMMERCIAL
GUIDE D'UTILISATION ET D'ENTRETIEN
Para una versión de estas instrucciones en español, visite www.kitchenaid.com
For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230
or visit our website at www.kitchenaid.com.
In Canada, for assistance, installation and service, call: 1-800-807-6777
or visit our website at www.KitchenAid.ca.
Au Canada, pour assistance, installation ou service composez le 1-800-807-6777
ou visitez notre site web à www.KitchenAid.ca.
W10837386A
SP: W10837406
Advertisement
Table of Contents
Related Manuals for KitchenAid KDRS467VBU00
Summary of Contents for KitchenAid KDRS467VBU00
- Page 1 CUISINIÈRES À CONVECTION À BI-COMBUSTIBLE DE STYLE COMMERCIAL GUIDE D’UTILISATION ET D’ENTRETIEN Para una versión de estas instrucciones en español, visite www.kitchenaid.com For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230 or visit our website at www.kitchenaid.com. In Canada, for assistance, installation and service, call: 1-800-807-6777 or visit our website at www.KitchenAid.ca.
-
Page 2: Table Of Contents
Table of Contents Table des matières SAFETY INFORMATION ..............3 INFORMATIONS DE SÉCURITÉ..........34 The Anti-Tip Bracket ............4 Pied antibasculement ............35 PARTS AND FEATURES ..............6 PIÈCES ET CARACTÉRISTIQUES ..........37 Range ................6 Cuisinière .................37 Oven Interior ..............6 Intérieur du four ...............37 Electronic Oven Controls ..........7 Commandes électroniques du four ........38 COOKTOP FEATURES ..............8 CARACTÉRISTIQUES DE LA TABLE DE CUISSON ....39... -
Page 3: Safety Information
SAFETY INFORMATION Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER”... -
Page 4: The Anti-Tip Bracket
SAFETY INFORMATION THE ANTI-TIP BRACKET The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without the anti-tip bracket fastened down properly. WARNING Tip Over Hazard A child or adult can tip the range and be killed. - Page 5 SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS Utensil Handles Should Be Turned Inward and Not Extend Over Disconnect the electrical supply before servicing the Adjacent Surface Units – To reduce the risk of burns, ignition of appliance. flammable materials, and spillage due to unintentional contact Injuries may result from the misuse of appliance doors with the utensil, the handle of a utensil should be positioned so or drawers such as stepping, leaning, or sitting on the...
-
Page 6: Parts And Features
Refer to this manual or the Frequently Asked Questions (FAQs) section of our website at www.kitchenaid.com for more detailed instructions. In Canada, refer to the Customer Service Section at www.kitchenaid.ca. -
Page 7: Electronic Oven Controls
PARTS AND FEATURES ELECTRONIC OVEN CONTROLS 30" (76.2 CM) AND 36" (91.4 CM) CLEAN TIME PROBE TEMP SEC MIN DELAY START STOP CONTROL COOK TIME TIME TIME LOCKED MED LOW HI 48" (121.9 CM) 18 19 EasyConvect™ Number pads Clock set/start Warming drawer on/off conversion Start (control... -
Page 8: Cooktop Features
COOKTOP FEATURES BURNERS Check that the control knob is pressed completely down on ■ the valve shaft. If the spark igniter still does not operate, call a trained repair specialist. WARNING When the control knobs for any small or medium burner are ■... -
Page 9: Grill
COOKTOP FEATURES GRILL (ON SOME MODELS) Sealed Surface Burners Sealed surface burners are designed to minimize gaps and The grill module consists of a cast-iron grate, a wave tray, seams that can allow liquids and spills to get under the cooktop. a flame spreader, a burner assembly, 2 grease trays and a This design makes cleanup quick and easy. -
Page 10: Chrome Electric Griddle
COOKTOP FEATURES CHROME ELECTRIC GRIDDLE To Use: (ON SOME MODELS) The chrome electric griddle provides the perfect cooking surface for grilled sandwiches, pancakes, eggs, burgers, Turn on overhead range sautéed vegetables, and many more family favorites. The hood. attractive low-stick surface is designed to make cleanup easy. Turn knob to MED and allow grill to preheat for 15 minutes. -
Page 11: Using Your Oven
USING YOUR OVEN CONTROL PANEL Clock Setting the Clock When pressing any control pad function on the Electronic Oven This is a 12-hour clock. Control, use the pad of your finger to press the desired function. Hold down the pad a few seconds, or until the desired function appears in the display. -
Page 12: Options
USING YOUR OVEN OPTIONS Cooking Time Completion Tones Three beeps indicate the end of a cooking cycle. ■ This manual covers different models. The oven you have All Tones ON/OFF purchased may have some or all of the items listed. The locations and appearances of the items shown here may All tones are preset to ON, but can be turned OFF. - Page 13 USING YOUR OVEN Sabbath Mode To Set Regularly Untimed: The Sabbath Mode sets the oven(s) to remain ON in a bake ■ setting until turned off. A timed Sabbath Mode can also be set to keep the oven on ■ for only part of the Sabbath.
- Page 14 USING YOUR OVEN Temperature Change To Set Regularly Timed: The oven temperature can be changed when the oven(s) are in WARNING the Sabbath Mode. No tones will sound, and the display will not change. The heating elements will not turn on or off for a random time, anywhere from 16 to 24 seconds.
-
Page 15: Know Your Oven
USING YOUR OVEN Roll-Out Extension Rack KNOW YOUR OVEN The roll-out extension rack allows easy access to position and Odors and smoke are normal when the oven is used the first remove food in the oven. It can be used in rack positions 1 ■... - Page 16 USING YOUR OVEN Know your Racks To avoid damage to the sliding shelves, do not place more ■ than 25 lbs (11.4 kg) on the rack. Do not clean the roll-out extension rack in a dishwasher. It ■ may remove the rack’s lubricant and affect its ability to slide. See the “Care and Cleaning”...
-
Page 17: Traditional Cooking
USING YOUR OVEN RECOMMENDED RECOMMENDED RACK BAKED GOODS MODE(S) POSITION(S) TIPS Cakes Bake, Convect Bake Three racks — 1, 3, 5 For best results when Two racks — 2 and 4 baking cakes on 2 racks, One rack — 3 place the cakes on the racks as shown. - Page 18 USING YOUR OVEN True-Broil Reflector Full and Center Broiling ® It is important not to cover foods with lids or aluminum foil ■ so that surface areas remain exposed to the circulating air, The Broil Mode uses intense heat from above to cook foods allowing browning and crisping.
- Page 19 USING YOUR OVEN Convection Baking Know Your Convection Roast Mode The Convection Bake mode uses If the oven door is opened during convection roasting, the ■ an element and a fan to circulate fan turns off immediately when the door is opened and turns hot air throughout the oven, on immediately when the door is closed.
-
Page 20: Special Modes
USING YOUR OVEN SPECIAL MODES EasyConvect™ Conversion Convection temperatures and times can differ from those of standard cooking. Depending upon the selected category, Proofing Bread EasyConvect™ conversion will automatically reduce standard Proofing bread prepares dough for baking by activating the recipe temperatures and/or times for convection cooking. - Page 21 USING YOUR OVEN Before Using Temperature Probe: To Set a Cooking Time: Remove any racks above the food that are not in use. ■ Insert the probe into the food item. For meats, the probe tip ■ should be located in the center of the thickest part of the meat and not into the fat or touching a bone.
-
Page 22: Care And Cleaning
CARE AND CLEANING COOKTOP SURFACE After Each Use: Replace burner cap. Dual-Flame Burner Incorrect Correct Wipe off cooktop, grates, and caps. Medium Burner Incorrect Correct Clean food spills. To preserve the finish, clean food spills containing acids, such as vinegar and tomato, as soon as the entire appliance is cool. Simmer/Melt Burner SEALED SURFACE BURNERS Incorrect... -
Page 23: Porcelain-Coated Grates And Caps
CARE AND CLEANING PORCELAIN-COATED GRATES AND CAPS Use scrub and cleanser. Clean with a nonabrasive nylon scrub pad and mildly abrasive Remove burner assembly. Lift up and out. cleanser. Know Your Grates and Caps Food spills containing acids, such as vinegar and tomato, ■... - Page 24 CARE AND CLEANING To Clean: To Replace Do not use oven cleaners, metal brushes, abrasive scouring pads or other scrubbers made to clean outdoor grills. Grate: Drip tray Do not clean grill grate in dishwasher. ■ Do not clean in a self-cleaning oven. ■...
-
Page 25: Griddle
CARE AND CLEANING GRIDDLE Tips: Front opening Prior to cleaning the griddle make sure that all cooktop ■ burners have been turned off and the oven controls have been locked. For best results, clean the griddle shortly after removing ■ the food. -
Page 26: Cooktop Controls
CARE AND CLEANING COOKTOP CONTROLS Remove remaining residue. Remove knobs. Fold a damp towel and with the pad holder or wooden spoon, Pull the knobs straight away from the control panel to remove. go over the griddle to remove remaining residue. Turn off griddle and let cool. -
Page 27: Control Panel
CARE AND CLEANING CONTROL PANEL DOOR INTERIOR Wipe away any deposits. Press and hold START for 5 seconds until “CONTROL Use a damp sponge. LOCK” appears on the display. Locking buttons avoids press screen activation during cleaning. Use Self-Cleaning cycle (See “Self-Cleaning the oven” section. -
Page 28: Self-Cleaning The Oven
CARE AND CLEANING SELF-CLEANING THE OVEN WARNING Hand clean. Burn Hazard With a damp cloth, hand clean the inside door edge and 1½" (3.8 cm) of the area around the inside oven cavity frame. Be Do not touch the oven during the Self-Cleaning cycle. certain not to move or bend the gasket. -
Page 29: Oven Lights
CARE AND CLEANING OVEN LIGHTS Once the oven has completely cooled: Remove ash with a damp cloth. ■ The oven lights are 120-volt, 25-watt maximum halogen bulbs. They will come on when the oven door is opened. If soil remains after wiping, that means the length of the ■... -
Page 30: Troubleshooting
First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty page in this manual and scan the code there with your mobile device, or visit https://kitchenaid.com. In Canada, visit http://www.kitchenaid.ca. If you experience... - Page 31 First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty page in this manual and scan the code there with your mobile device, or visit https://kitchenaid.com. In Canada, visit http://www.kitchenaid.ca. If you experience...
-
Page 32: Assistance Or Service
To order accessories, call the KitchenAid Customer eXperience Center toll free at 1-800-422-1230 and follow the menu prompts. Or visit our website at www.kitchenaid.com and click on “Shopping Options.” Go to “Replacement Parts & Accessories” and click on “applianceaccessories.com.” Portable appliances, bakeware, cookware, gadgets, and textiles are also available. -
Page 33: Warranty
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY KitchenAid makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask KitchenAid or your retailer about buying an extended warranty. -
Page 34: Informations De Sécurité
W10837386A ®/TM © 2015. Used under license in Canada. All rights reserved. SP: W10837406 ®/TM © 2015. Utilisé sous licence au Canada. Tous droits réservés. 11/15...
