Installation Instructions

WARNING
Tip Over Hazard
A child or adult can tip the range and be
killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range
is moved.
Failure to follow these instructions can
result in death or serious burns to children
and adults.
IMPORTANT:
Read and save
these instructions.
IMPORTANT :
Installer: Leave Installation Instructions
with the homeowner.
Homeowner: Keep Installation
Instructions and anti-tip bracket
template for future reference.
Save Installation Instructions for local
electrical inspector's use.
HOME APPLIANCES

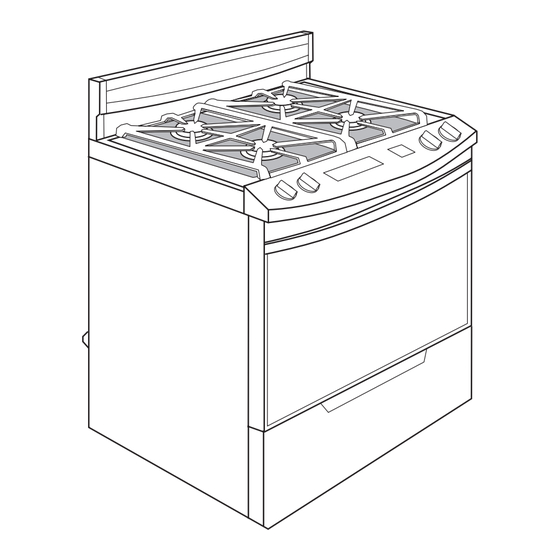

30" (76.2 cm)
Sealed Burner
Freestanding and
Slide-in Ranges
with self-cleaning thermal/convection oven
Part No. 9758639
Gas
9758639
9758639

Advertisement

Table of Contents

   Related Manuals for KitchenAid 30"

   Summary of Contents for KitchenAid 30"

  • Page 1: Installation Instructions

    Homeowner: Keep Installation Instructions and anti-tip bracket template for future reference. Save Installation Instructions for local electrical inspector’s use. 30" (76.2 cm) Sealed Burner Freestanding and Slide-in Ranges with self-cleaning thermal/convection oven 9758639 9758639 Part No. 9758639...
  • Page 2: Before You Start

    Before you start... Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
  • Page 3: Countertop Preparation

    • vent cap • L.P. conversion orifice spud kit: 1 – 0.95 mm (0.0374") cooktop (blue) 2 – 0.67 mm (0.0264") cooktop (black) 1 – 1.05 mm (0.0413") cooktop (green) 1 – #65 (0.0350") broil burner anti-tip bracket 2 plastic anchors 2 screws (#10 x 1-1/2")
  • Page 4: Gas Supply Requirements

    If this information does not agree with the type of gas available, check with your KitchenAid dealer. Provide a gas supply line of 3/4" (1.9 cm) rigid pipe to the range location.
  • Page 5 Now start... With range in kitchen. Put on safety glasses and gloves. Remove shipping materials, tape and protective film from range. Keep cardboard bottom and shipping base under range. Remove oven racks and parts package from inside oven. If you have a slide-in range, remove back vent package from range top.
  • Page 6: Electronic Ignition System

    Check that the gas shutoff valves are set to the “OPEN” position. Repeat Step 22. If a burner does not light at this point, contact your KitchenAid dealer or authorized service company for assistance.
  • Page 7: If You Need Service

    © 2004 KitchenAid. ® Registered Trademark of KitchenAid, U.S.A. If you need service... In the event that your KitchenAid appliance should need service, call the dealer from whom you purchased the appliance or a KitchenAid-authorized service company. A KitchenAid-authorized service company is listed in the Yellow Pages of your telephone directory under “Appliances —...
