Growatt Grid Installation & Operation Manual page 3

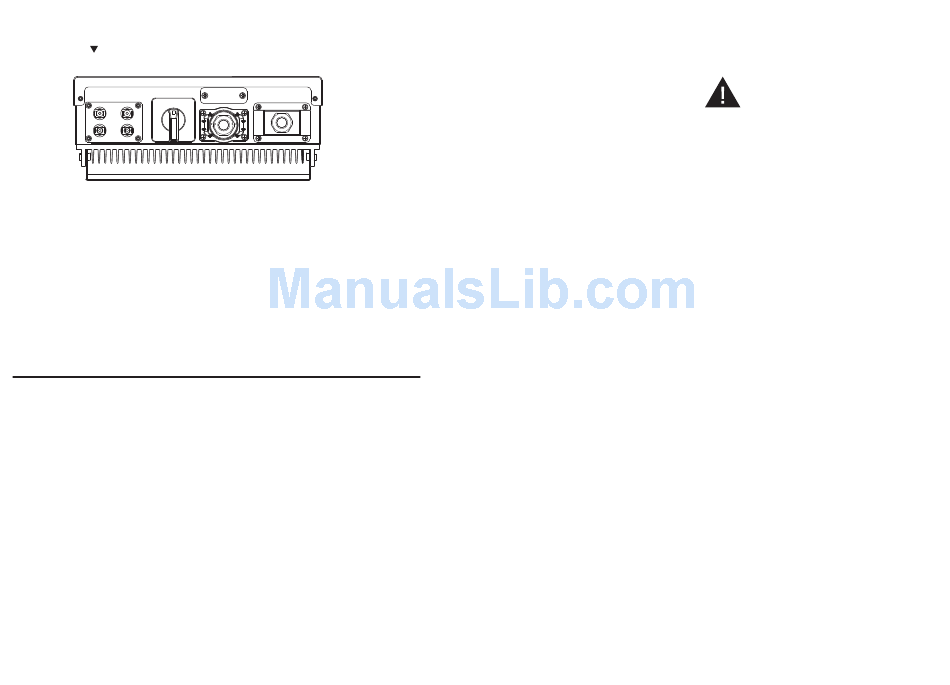

Bottom Overview
Opening the package
After opening the package, please check the contents of the box. It should contain
the following：
Name
Item
1
Solar inverter
2
Mounting frame
3
Mounting screws
4 Safety-lock screws
5 Mounting frame screws sleeve
6 AC socket
7 AC socket assembly screws
8 Installation & Operation manual
9 RS485 waterproof device
10
RS485 waterproof device assembly screw
2
Ouantity
1
1
6
4
6
1
4
1
1
4
2.1 Installation manual
A
Do not remove the casing. Inverter contains no user serviceable
parts. Refer servicing to qualified service personal. All wiring and
electrical installation should be conducted by a qualified service
personnel and must meet national requirements of AS/NZS 3000.
B
Both AC and DC voltage sources are terminated inside the PV
Inverter. Please disconnect these circuits before servicing.
C
When a photovoltaic panel is exposed to light, it generates a DC
voltage. When connected to this equipment, a photovoltaic panel
will charge the DC link capacitors.
D
Energy stored in this equipment's DC link capacitors presents a risk
of electric shock. Even after the unit is disconnected from the grid
and photovoltaic panels, high voltages may still exist inside the PV-
Inverter. Do not remove the casing until at least 10 minutes after
disconnecting all power sources.
E
This unit is designed to feed power to the public power to the
public grid (utility) only. Do not connect this unit to an AC source or
generator. Connecting Inverter to external devices could result in
serious damage to your equipment.
F
Carefully remove the unit from its packing and inspect for external
damage. If you find any imperfections, please contact your local
dealer.
G
Although designed to meet all safety requirements, some parts and
surfaces of Inverter are still hot during operation. To reduce the risk
of injury, do not touch the heat sink at the back of the PV-Inverter
or nearby surfaces while Inverter is operating.
2
Installation
3
