Communication

5.1 Communications software instructions

ShineNET is a PC software that communicates with Shine Inverter to analyze the
inverter work state. It is convenient for you to know the inverter real time working
state and the history work information.
Spec:
1. Communicate with inverter by RS232 and Bluetooth.
2. Construct net with inverter, GROmonitor and ShineNet by RS232, Bluetooth
and Internet.
3. Two Interfaces: Multi Inverter Interface and Wave Data Interface.
4. In Multi Inverter Interface: 9 inverters working data at the same time, you can
select your own compare inverters and parameters.
5. In Wave Data Interface: Query the inverter real time and history power wave,
work data and error information.
6. Multi languages: English, Simple Chinese, French, German, Spanish and etc.
Support OS: WinXP / Vista / win7 / 2000/ 2003
5.2 Monitor
After setting the software the user can monitor the inverter. The right side of the
main interface is the detailed information of inverter.

5.3 Detailed information

Detailed setting method and other functions refer to "ShineNET Manual." in the CD.
16

5.4 RS 485 cable connection

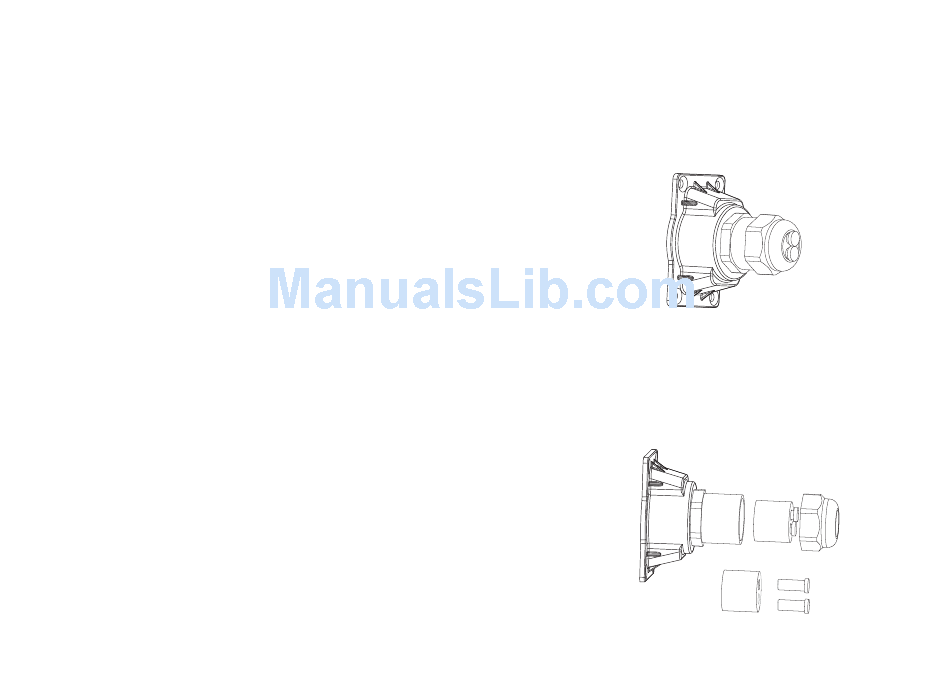

1. Please take out the RS485 waterproof device from the Accessories bag, even if you
don't choose RS485 as communication method, the RS485 waterproof device still
has to be locked on the inverter.
2. Twist off the waterproof connector, and pull out one or two Stopper according to
your demand.
