Page 1 CAUTION RISK OF INJURY! READ MANUAL BEFORE OPERATING! This manual is an important part of the pressure washer and must remain with the unit when you sell or rent it! ©Copyright 2006, Mi-T-M® Corporation® #37-0449-E/S-042707 ® Mi-T-M HSP-SERIES Operator's Manual...
Page 2: Table Of Contents
CLEANING WITH DETERGENTS UNDER LOW PRESSURE ........7 SHUTDOWN ........................7 storage & maintenance ....................18-19 SPECIFIC MAINTENANCE ..................... 8 WINTERIZING ........................9 troublesHooting ......................20-21 maintenance cHart ......................22 accessories ..........................23 statement of warranty ..................... 24 notes ............................25 ® Mi-T-M HSP-SERIES Operator's Manual...
Page 3: Introduction
Mi-T-M hot water pressure washer. The contents of this manual are based on the latest product information available at the time of publication. Mi-T-M reserves the right to make changes in price, color, materials, equipment, specifications or models at any time without notice.
Page 4: Important Safety Warnings
Serious injury or death may occur device which should never be altered, modified, if system safety's are not properly maintained. removed or made inoperative. If the device fails, replace immediately with only genuine manufacturer replacement part. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 5: Risk Of Asphyxiation
This includes electrocution or electrical outlets, light bulbs, fuse boxes, electrical sHocK transformers, the unit itself, etc. DO NOT allow metal components of the pressure washer to come in contact with live electrical components. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 6: Risk Of Burns
Avoid dragging the hoses over abrasive surfaces such as cement. Use only Mi-T-M recommended repair parts for your pressure washer. In freezing temperatures, the unit must always Serious injury or death may occur...
Page 7: Risk Of Bodily Injury
Service in clean, dry, flat area. If applicable, block wheels to prevent unit from moving. Do not move the unit by pulling on the hose. !SAVE THESE INSTRUCTIONS! ® Mi-T-M HSP-SERIES Operator's Manual...
Page 8: Features

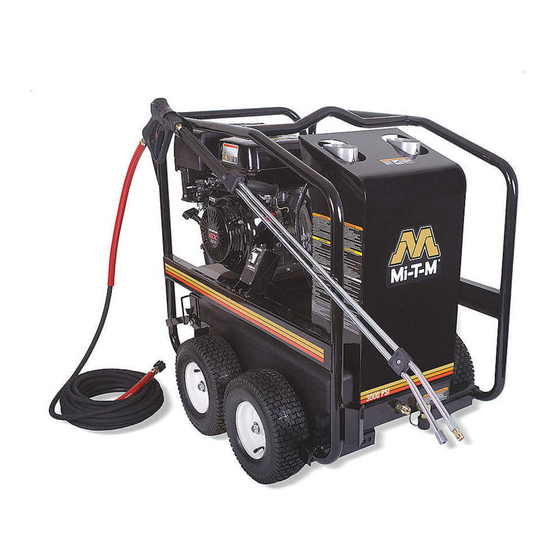

Hsp-small frame features ® Mi-T-M HSP-SERIES Operator's Manual...
Page 9 PORTABILITY: Four pneumatic tires for easy mobility. FINISH: Powder Coated HIGH PRESSURE HOSE: 3/8" x 50' TRIGGER GUN ASSEMBLY: Trigger controlled, safety lockoff, insulated lance. DUAL LANCE: Dual Lance, Insulated, w/adjustable pressure. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 10 Hsp-large frame features ® Mi-T-M HSP-SERIES Operator's Manual...
Page 11 PORTABILITY: Four pneumatic tires for easy mobility. FINISH: Powder Coated HIGH PRESSURE HOSE: 3/8" x 50' TRIGGER GUN ASSEMBLY: Trigger controlled, safety lockoff, insulated lance. DUAL LANCE: Dual Lance, Insulated, w/adjustable pressure. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 12: Installation & Preparation
5. Pump oil level should be checked before each use. Check the oil level do not operate in an indicator on the pump crankcase. Make certain the oil is in the center of the oil sight glass. If the level appears to be low, fill with Mi-T-M pump oil enclosed area. use tHis #AW-4085-006.
Page 13: Dual Lance Assembly With Adjustable Pressure
Incoming water temperature must not exceed 5°F. Excessive pump damage may result if the water temperature exceeds this acceptable level. 5. Never allow the unit to operate without the incoming water line attached and the water supply is completely turned on. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 14: Unloader
Injection" pg. 5. Be sure that all damaged parts are replaced and that the mechanical problems are corrected prior to operation of the unit. If you require service, contact Customer Service. end of preparation instructions ® Mi-T-M HSP-SERIES Operator's Manual...
Page 15 HaVe read and understood all safety precautions and instructions listed in tHis manual. incorrect operation of tHis unit can cause serious inJury!! do not alter or modify tHis eQuipment in any manner! ® Mi-T-M HSP-SERIES Operator's Manual...
Page 16: Operating Instructions
8. Your pressure washer can deliver high pressure spray and a variety of spray patterns using cold water. If you wish to use the Hot Water application or Cleaning with Detergents, see page 17 for the correct procedures. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 17: Hot Water Operation
Mi-T-M detergents with this unit.) 3. Fully immerse the strainer end of the clear vinyl detergent hose into the detergent solution.
Page 18: Storage & Maintenance
After initial change, every 3 months or 250 hour intervals are recommended. If oil appears dirty or milky, changes may be required in greater frequency. Use Mi-T-M pump oil #AW-4085-006 and fill only to the center of the oil sight glass. DO NOT overfill.
Page 19: Winterizing
NOTE: When using this procedure, caution should be used as ice chips can form from drops of water which could cause the unit to burst if starting before completely thawed. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 20: Troubleshooting
Ball & Spring in Venturi reversed, Remove, clean or replace. container. missing or corroded. Water flows from the nozzle when the Trigger gun is malfunctioning. Repair or replace. trigger gun is locked in the "OFF" position. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 21 Burner discharges white smoke. Low on fuel. Refuel. If white smoke persists, consult Service. Excessive air supply. Adjust as shown on page 8. Burner discharges black smoke. Insufficient air supply. Adjust as shown on page 8. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 22: Maintenance Chart
Scale build-up will vary with mineral content in the water and amount of usage. Descaling can range from monthly to yearly maintenance. ***** The engine oil must be changed after the first 8 hours of operation and every 50 hours or 3 months, whichever comes first. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 23: Accessories
All Purpose Cleaner, Paint Surface Prep, House & Deck Wash and Heavy Duty Degreaser are specially formulated deter- gents for use with all HSP pressure washers and are packaged in One (1), Five (5) and Fifty-five (55) gallon containers. Contact Customer Service Department at (800)-553-9053 for more information. ® Mi-T-M HSP-SERIES Operator's Manual...
Page 24: Statement Of Warranty
4. The use of other than genuine Mi-T-M Repair Parts will void warranty. Parts returned, prepaid to our factory or to an Mi-T-M Authorized Service Center will be inspected and replaced free of charge if found to be defective and subject to warranty.
