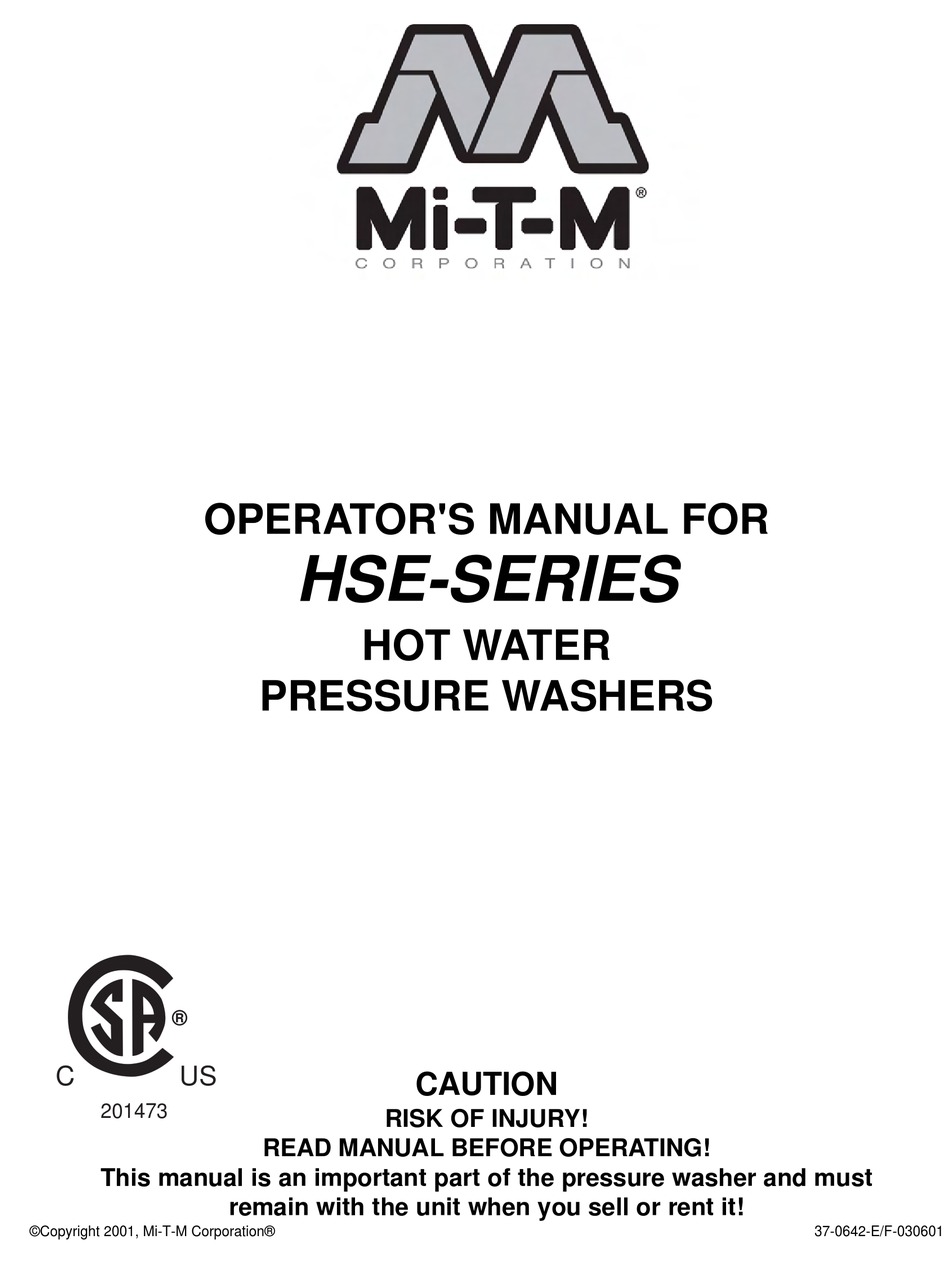

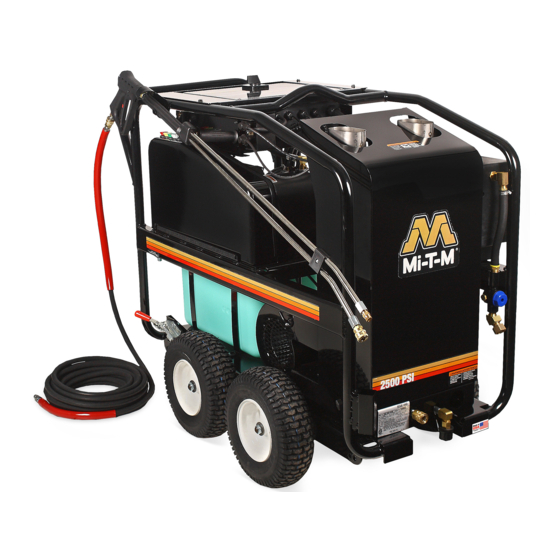

OPERATOR'S MANUAL FOR
HSE-SERIES
HOT WATER
PRESSURE WASHERS
®
C
US
CAUTION
201473
RISK OF INJURY!
READ MANUAL BEFORE OPERATING!
This manual is an important part of the pressure washer and must
remain with the unit when you sell or rent it!
©Copyright 2001, Mi-T-M Corporation®
37-0642-E/F-030601
Mi-T-M
HSE-SERIES Operator's Manual
1
Advertisement
Table of Contents
Related Manuals for Mi-T-M HSE-1002-0M10
Summary of Contents for Mi-T-M HSE-1002-0M10
- Page 1 201473 RISK OF INJURY! READ MANUAL BEFORE OPERATING! This manual is an important part of the pressure washer and must remain with the unit when you sell or rent it! ©Copyright 2001, Mi-T-M Corporation® 37-0642-E/F-030601 Mi-T-M HSE-SERIES Operator's Manual...
-
Page 2: Table Of Contents
CLEANING WITH DETERGENTS ................19 SHUTDOWN ......................20 STORAGE & MAINTENANCE ..................20-21 SPECIFIC MAINTENANCE ..................20 WINTERIZING ......................21 TROUBLESHOOTING ..................... 22-24 MAINTENANCE CHART ....................... 25 ACCESSORIES ........................26 OPTIONS ..........................27 STATEMENT OF WARRANTY ..................... 28 Mi-T-M ® HSE-SERIES Operator's Manual... -
Page 3: Introduction
Mi-T-M hot water pressure washer. The contents of this manual are based on the latest product information available at the time of publication. Mi-T-M reserves the right to make changes in price, color, materials, equipment, specifications or models at any time without notice. -
Page 4: Important Safety Warnings
Allow the pressure washer to cool down. Never assume the pressure washer is safe to work on just because it is not operating. It could restart at any time! Service in a clean, dry, flat area. Mi-T-M ® HSE-SERIES Operator's Manual... -
Page 5: Risk Of Explosion Or Fire
Follow all safety instructions provided with the materials you are spraying. Use of a respirator may be required when working with some materials. Do not use this pressure washer to dispense hazardous detergents. Mi-T-M HSE-SERIES Operator's Manual... -
Page 6: Risk Of Injection Or Severe Cutting Injury
Serious injury may occur to the connected to the power source. operator from moving parts on the pressure washer. Do not operate the unit without all protective covers in place. Follow the maintenance instructions specified in the manual. Mi-T-M ® HSE-SERIES Operator's Manual... -
Page 7: Risk Of Bodily Injury
Service in clean, dry, flat area. If applicable, block wheels to prevent unit from moving. Do not move the unit by pulling on the hose. !SAVE THESE INSTRUCTIONS! Mi-T-M HSE-SERIES Operator's Manual... -
Page 8: Features
HSE-SMALL FRAME FEATURES Mi-T-M ® HSE-SERIES Operator's Manual... - Page 9 PORTABILITY: Four pneumatic tires for easy mobility. FINISH: Powder coated HIGH PRESSURE HOSE: 3/8" x 50' TRIGGER GUN ASSEMBLY: Trigger controlled, safety lockoff, insulated lance. DUAL LANCE: Insulated, with adjustable pressure. Mi-T-M HSE-SERIES Operator's Manual...
-
Page 10: Hse-Large Frame
HSE-LARGE FRAME FEATURES Mi-T-M ® HSE-SERIES Operator's Manual... - Page 11 PORTABILITY: Four pneumatic four-ply tires for easy mobility. FINISH: Powder coated HIGH PRESSURE HOSE: 3/8" x 50' TRIGGER GUN ASSEMBLY: Trigger controlled, safety lockoff, insulated lance. DUAL LANCE: Insulated, with adjustable pressure. Mi-T-M HSE-SERIES Operator's Manual...
-
Page 12: Installation & Preparation
EXHAUST CONTAINS CARBON the "Full" mark on the dipstick or in the center of the oil sight glass. If the level MONOXIDE, A POISONOUS, appears to be low, fill with Mi-T-M pump oil #AW-4085-0016. ODORLESS AND INVISIBLE GAS. BREATHING THIS GAS CAN CAUSE SERIOUS INJURY, ILLNESS &... -
Page 13: Burner Fuel Tank
THREE PHASE: These pressure washers are not provided with GFCI protection. 6. EXTENSION CORDS: Mi-T-M DOES NOT RECOMMEND THE USE OF EXTENSION CORDS! If use of an extension cord is unavoidable, it must be plugged into a GFCI found in circuit boxes or protected receptacles. -
Page 14: Adjustable Pressure Dual Lance
Incoming water temperature must not exceed 125°F. Excessive pump damage may result if the water temperature exceeds this acceptable level. 5. Never allow the unit to operate without the incoming water line attached and the water supply completely turned on. Mi-T-M ® HSE-SERIES Operator's Manual... -
Page 15: Unloader
Injection or Severe Cutting Injury", pg. 7. Be sure that all damaged parts are replaced and that the mechanical problems are corrected prior to operation of the unit. If you require service, contact Customer Service. END OF PREPARATION INSTRUCTIONS Mi-T-M HSE-SERIES Operator's Manual... -
Page 16: Notes
NOTES Mi-T-M ® HSE-SERIES Operator's Manual... - Page 17 DO NOT ATTEMPT TO OPERATE THIS PRESSURE WASHER UNTIL YOU HAVE READ AND UNDERSTOOD ALL SAFETY PRECAUTIONS AND INSTRUCTIONS LISTED IN THIS MANUAL. INCORRECT OPERATION OF THIS UNIT CAN CAUSE SERIOUS INJURY!! DO NOT ALTER OR MODIFY THIS EQUIPMENT IN ANY MANNER! Mi-T-M HSE-SERIES Operator's Manual...
-
Page 18: Operating Instructions
9. Your pressure washer can deliver high pressure spray and a variety of spray DAMAGE MAY OCCUR TO THE patterns using cold water. If you wish to use the Hot Water, Steam application AREA. or Cleaning with Detergents, see page 19 for the correct procedures. Mi-T-M ® HSE-SERIES Operator's Manual... -
Page 19: Hot Water Operation
Mi-T-M detergents with this unit.) 3. Fully immerse the strainer end of the clear vinyl detergent hose into the detergent solution. -
Page 20: Shutdown
3 months or 250 hour intervals are recommended. If oil appears dirty or milky, changes may be required in greater frequency. Use Mi-T-M pump oil (#AW-4085-0016) and fill only to the center of the oil sight glass. DO NOT overfill. -
Page 21: Winterizing
NOTE: When using this procedure, use caution as ice chips can form from drops of water ly thawed. which could cause the unit to burst if starting before complete Mi-T-M HSE-SERIES Operator's Manual... -
Page 22: Troubleshooting
Too many high pressure hose Use one extension maximum. extensions attached to the water outlet. Nozzle assembly is plugged. Clean or replace. Ball & Spring in Venturi stuck. Remove, clean or replace. Mi-T-M ® HSE-SERIES Operator's Manual... - Page 23 Fuel solenoid valve failure. Replace. Steam Option: Steam Mode. Verify Burner/Steam switch is in "Steam" mode. Steam mode: Pump Head PSI too Reduce pressure to 350PSI. high. Cad Cell Option: Primary control lock-out. Reset. Mi-T-M HSE-SERIES Operator's Manual...
- Page 24 Dirty fuel nozzle. Replace. Improper air adjustment setting. Adjust as explained on page 20. Scale build up in heat exchanger coil. Consult Mi-T-M Customer Service. Burner discharges white smoke. Low on fuel. Refuel. If white smoke persists, consult Customer Service.
-
Page 25: Maintenance Chart
*** High pressure nozzle should be replaced whenever pressure is less than 85%. **** Scale buildup will vary with mineral content in the water and amount of usage. Descaling can range from weekly to yearly maintenance. Mi-T-M HSE-SERIES Operator's Manual... - Page 26 Auto Start/Stop Steam/Cad HX-0075 AutomÆ tico Empezar/Parar Vapor/Cadmium Auto Start/Stop Steam/Cad HX-0076 AutomÆ tico Empezar/Parar Vapor/Cadmium 480 Volt HX-0085 480 Voltio 480 Volt HX-0086 480 Voltio 480 Volt HX-0087 480 Voltio Skid Feet HX-0088 MÆ quina Pie ® Mi-T-M HSE-SERIES Operator's Manual...
-
Page 27: Accessories
All Purpose Cleaner, Paint Surface Prep, House & Deck Wash and Heavy Duty Degreaser are specially formulated detergents for use with all HSE pressure washers and are packaged in One (1), Five (5) and Fifty-five (55) gallon containers. Contact Customer Service Department at (800) 553-9053 for more information. Mi-T-M HSE-SERIES Operator's Manual... -
Page 28: Statement Of Warranty
STATEMENT OF WARRANTY Mi-T-M warrants all parts, (except those referred to below), of your new HSE-Series Pressure Washer to be free from defects in materials and workmanship during the following periods: For Five Years from the date of original purchase:...
