such that the opening is in a more upward
orientation making it easier to pour or scoop litter
into the Globe.
For the initial charge of litter we recommend
starting with 9 to 10 lbs. of standard clumping litter
or approximately 1 ½ gallons of volume, whichever
is less.
With the Globe set back in the home position and
the litter spread evenly, the level should not be
higher than the 'Fill Line' ring (see figure below).
After adding litter to the Litter-Robot you can start
a cleaning cycle by pressing the "Cycle" button on
the Control Panel or by turning the unit OFF then
ON with the switch on the back of the Base. If you
accidentally over-fill the globe, excess litter will be
expelled into the waste drawer. At the end of the
cycle, the litter bed will be leveled.

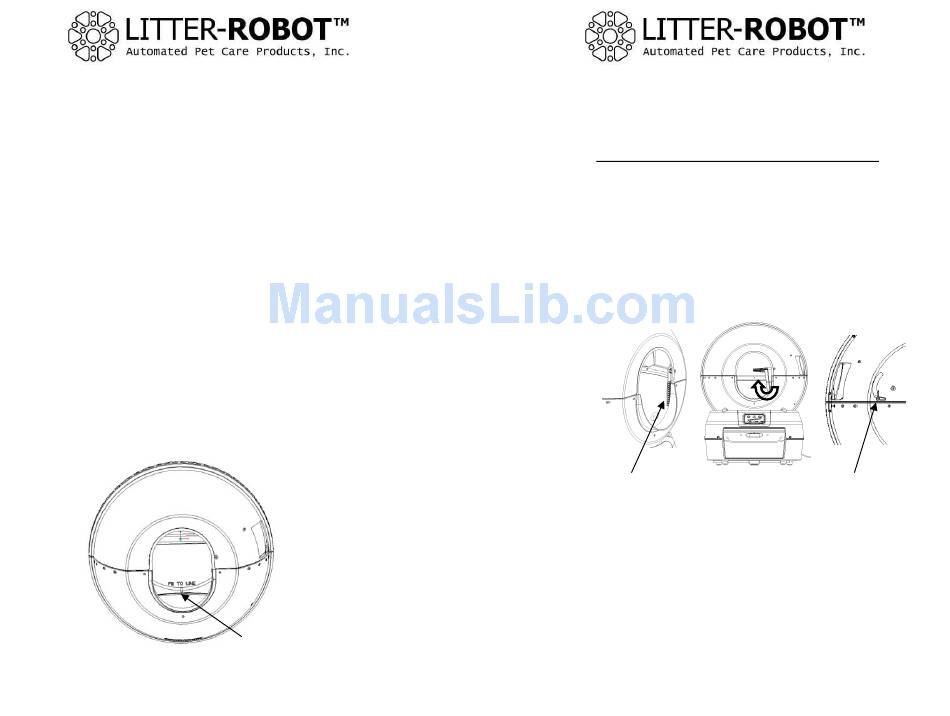

Fill Line Ring
Toll Free: 877-250-7729 www.Litter-Robot.com 9
B. Filling through the waste ports (square holes)
First, make sure that the Globe is in the home
position. Look through the Cat Entry opening and
locate the ribbed handle of the Internal Guard
inside the Globe, on the right. Grab this handle and
rotate it upward (clockwise) until it snaps into a
horizontal and locked position (see figure). Note
that the pin on the opposite side of the globe
should be locked behind the spring as shown below.
Locate Internal Rotate handle upward
Guard handle until it locks In position
Next, make sure the Green light is on. Note that if
the Green light is not on, turn the unit OFF then ON
again and wait for the initialization cycle to
complete - you can leave Guard in its locked
position. If the Red light is on you can simply press
any of the three buttons to reset the unit and the
Green light should then be illuminated. Now press
the 'Fill' button. This starts the Globe's rotation,
bringing the waste ports to the top - a position
convenient for filling.
10 Toll Free: 877-250-7729
Rear View
Pin Locks behind
spring
