King Industrial KC-689-OSC-7 Service Manual

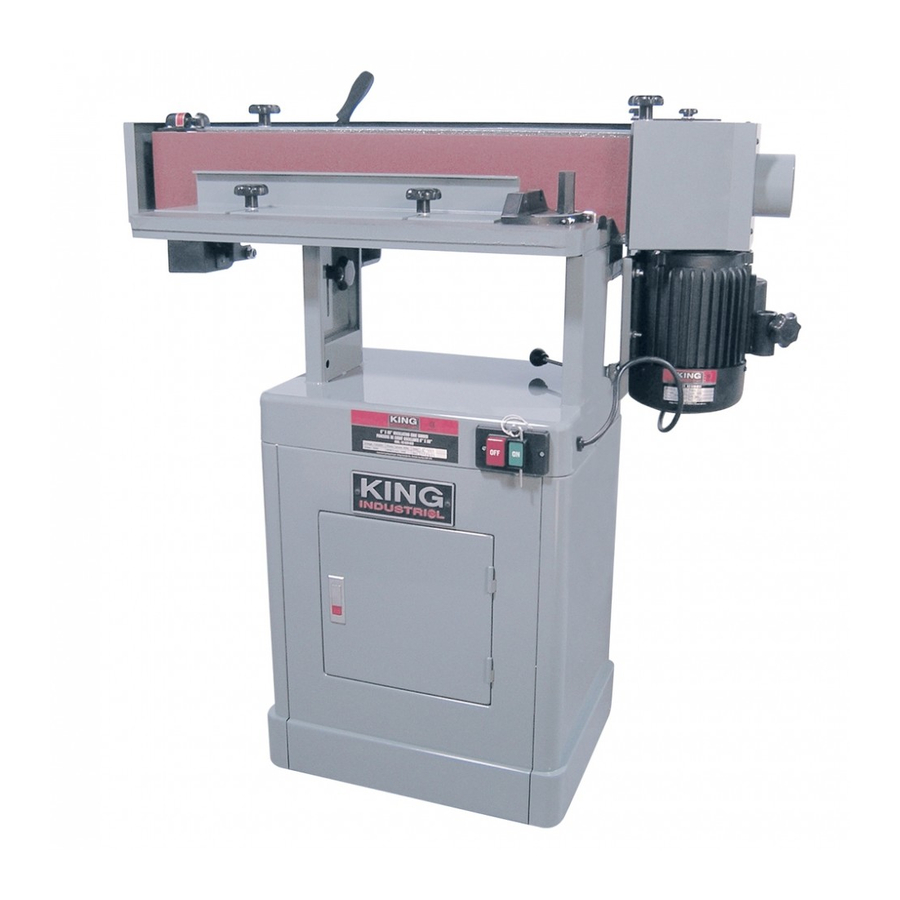

6” x 89” oscillating edge sander
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Service Manual / Manuel de Service
6" x 89" Oscillating Edge Sander
Ponceuse de Chant Oscillante 6" x 89"
Revised/Revisé 08/2008

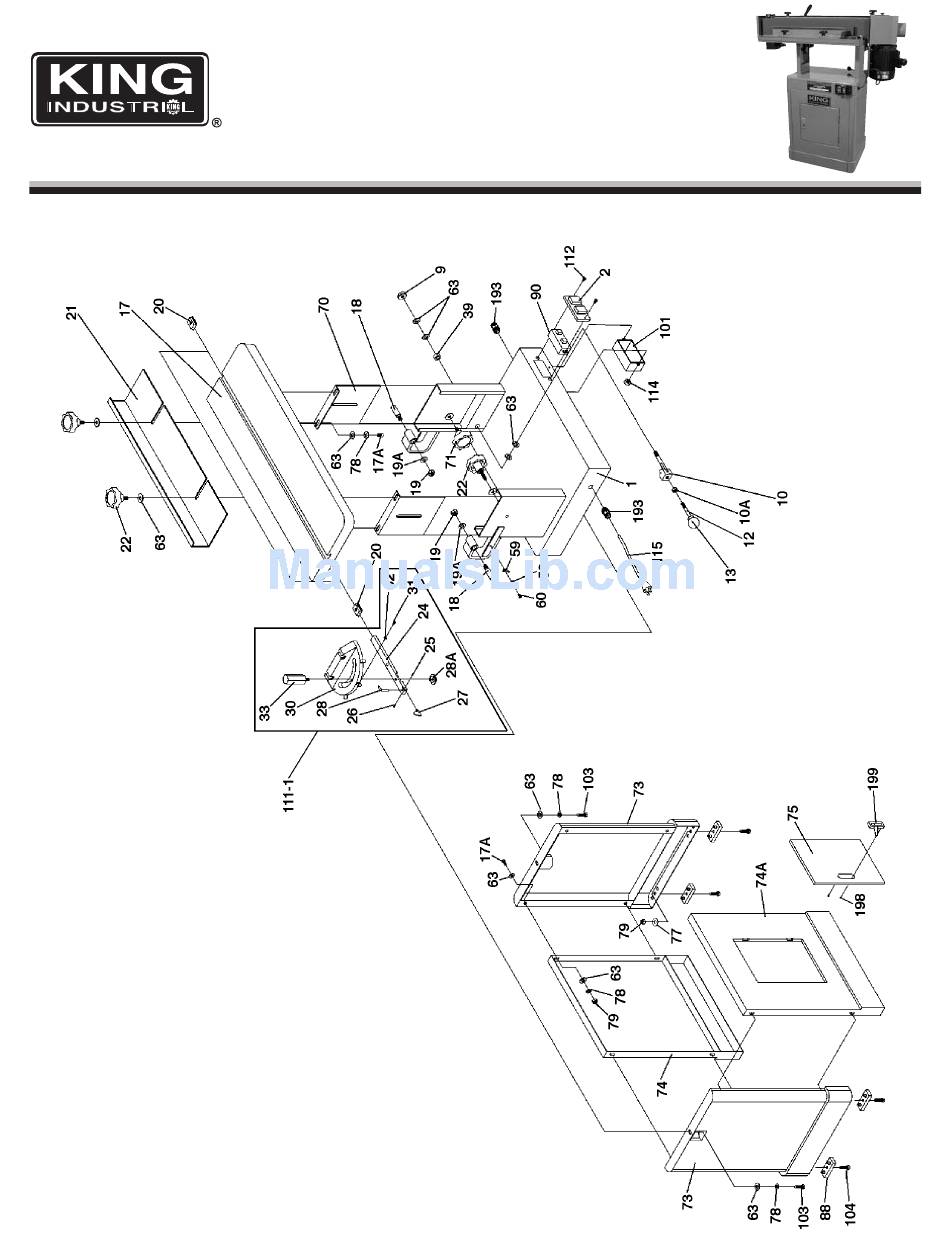

Base Diagram / Diagramme de la Base
KC-689-OSC-7
