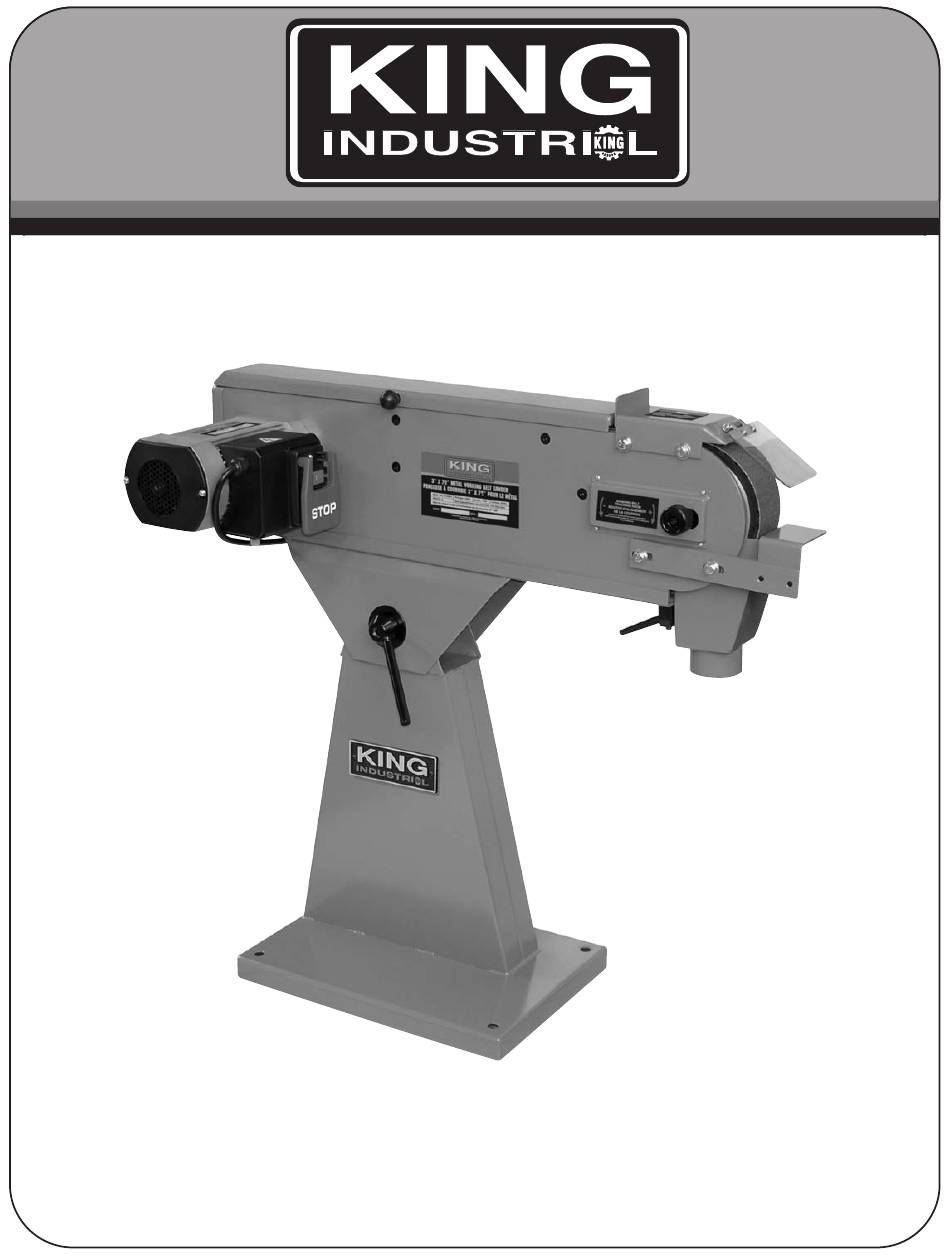

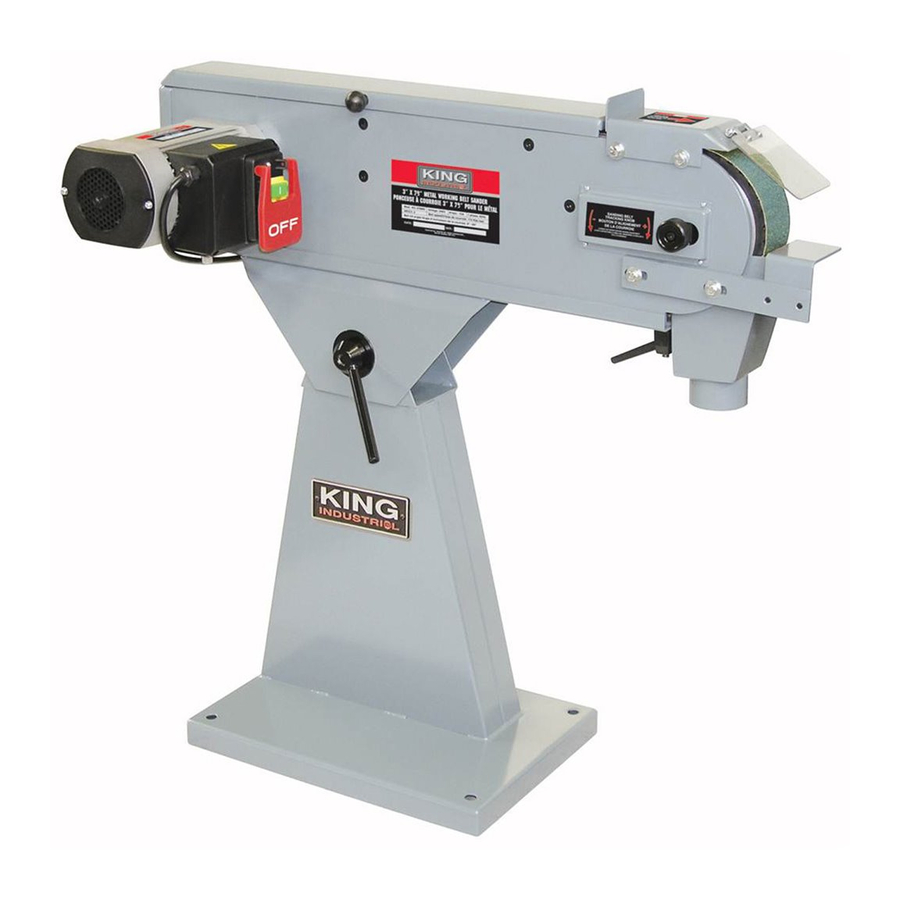

- Page 1 03/2013 3” X 79” METAL BELT SANDER MODEL: KC-379MS INSTRUCTION MANUAL COPYRIGHT © 2012 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR COMMERCIAL USE. FOR THIS METAL BELT SANDER PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards.
- Page 3 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday the tool. Learn its application and limitations as well as its eyeglasses only have impact resistant lenses, thet are NOT specific potential hazards.
-
Page 4: Electrical Information
ELECTRICAL INFORMATION WARNING! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE METAL BELT SANDER DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! GENERAL INFORMATION- 220V single phase operation PROPERLY GROUNDED OUTLET This metal belt sander comes with a 2 HP 220V single phase motor. WARNING: YOUR METAL BELT SANDER MUST BE CONNECTED CURRENT CARRYING PRONGS TO A 220V-240V, 1 PHASE ELECTRICAL SUPPLY. -
Page 5: Specifications
11. Tracking knob locking cap screw 12. Angle adjustment lock lever 13. Off button 14. On button 15. Sanding belt tension lever 16. Rear cover SPECIFICATIONS MODEL ....................................KC-379MS HORSEPOWER ....................................2 HP VOLTAGE ......................................240V AMPERAGE ......................................9 A R.P.M ......................................3,400 Hz ........................................60 PHASE ........................................1 BELT ....................................3”... - Page 6 ASSEMBLY Installing work support and front dust port 1. Install the work support assembly (A) Fig.4 to the frame (B) of the machine, first place 2 washers between the frame and the work support arm (C). 2. Then secure the work support assembly to the frame using 2 hex. bolts, lock washers and washers (D).
- Page 7 ADJUSTMENTS & OPERATION Sanding belt angle adjustment The angle of the metal belt sander can be adjusted from 0 - 60 various sanding operations. 1. Loosen the angle adjustment lever (A) Fig.7. 2. Position the belt sander head (B) in the desired angle and retighten the angle adjustment lever.
- Page 8 MAINTENANCE & TROUBLESHOOTING Sanding belt replacement The sanding belt must be checked for usage and damage on a regular basis. To replace the sanding belt: 1. Make sure the switch is Off. 2. Remove the two rear cover lock knobs (A) Fig.10. 3.
