ML Switch User Guide

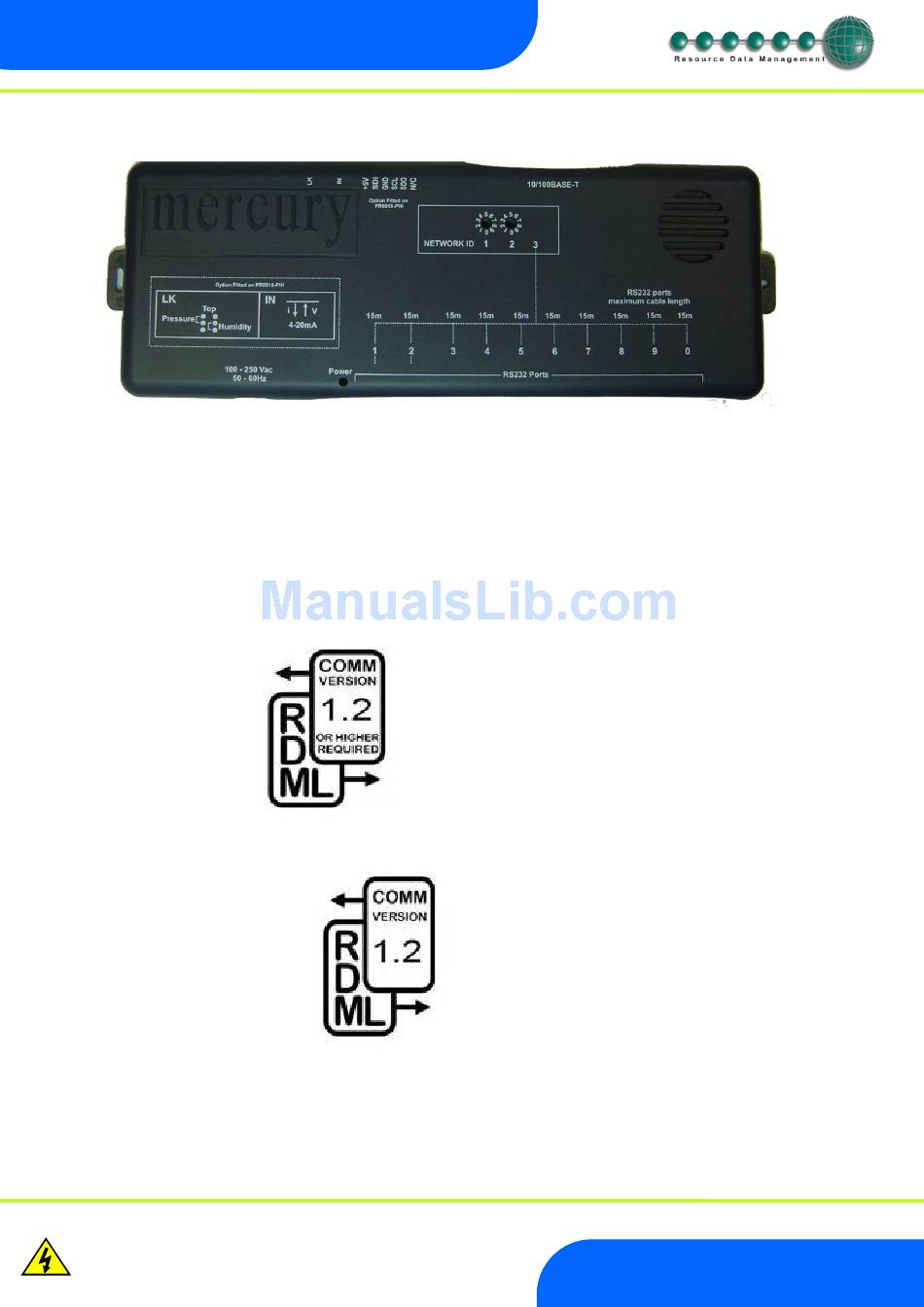

Top View

Connection to ML Controllers:

Network Configuration

Network Compatibility

New ML Switch and IP Modules will be labeled identifying software version.
New ML Controllers will not log on to network using pre 1.2 versions of ML Switch and IP Modules.
Controllers with the following label will only log on to network using ML Switch or ML IP Module with software version 1.2 or higher.
ML Switch or ML IP Module with software version 1.2 will have the following label.
All versions of ML controllers will log on with ML Switch and IP Module with software version 1.2 or higher.
Using a standard CAT5 patch lead, connect the serial output of the RDM Controller to one of the RS232 ports of the ML Switch.
Warning
Ensure that all power is
switched off before
installing or maintaining
this product
Revision 1.2D Page 4 of 17
