ML Switch User Guide
Setup Mode

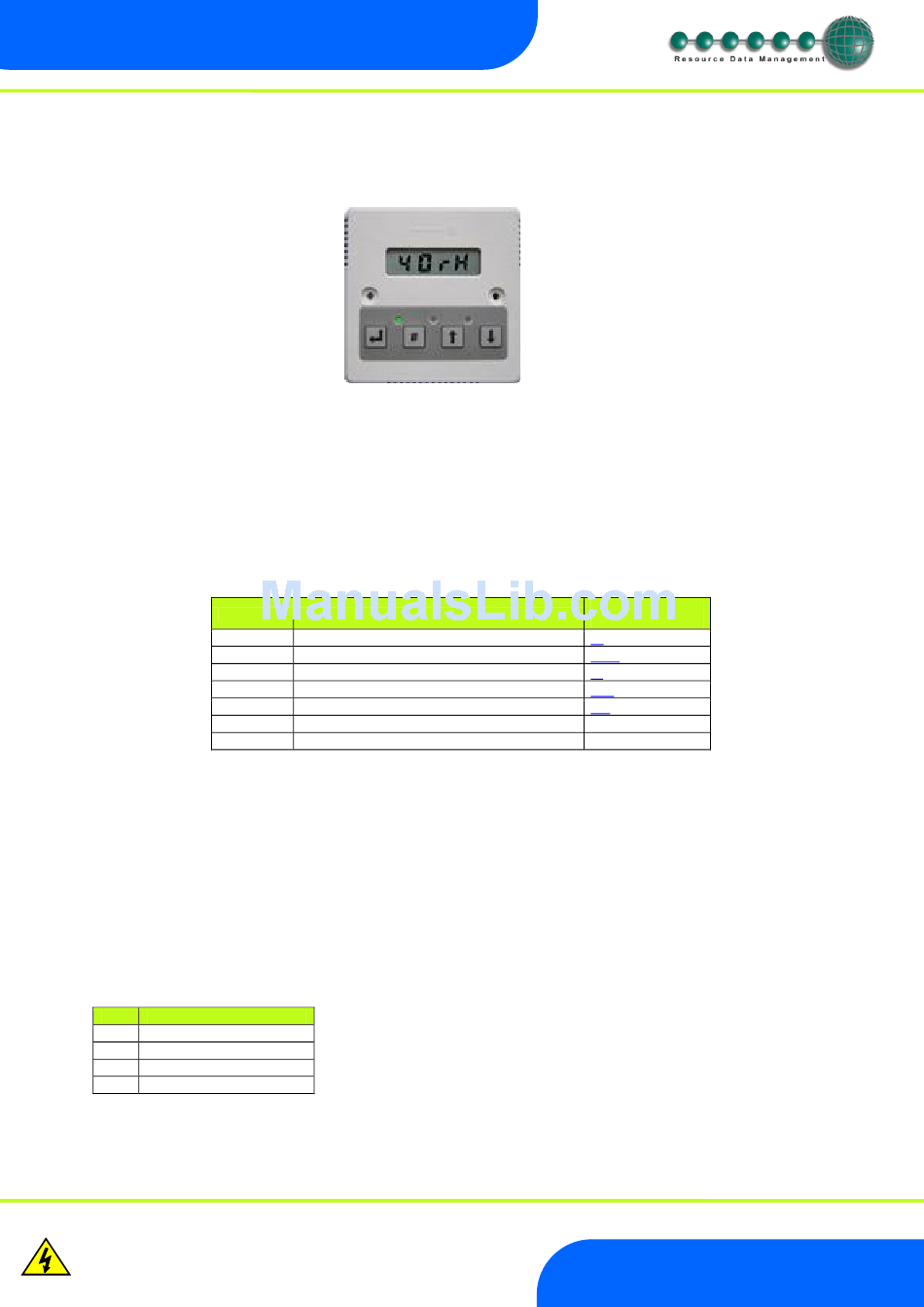

Setup through front buttons
To enter the software menu for setup mode, hold the Enter and Down buttons together for approximately 3 seconds until the message
"Ent" appears on the display. Release both buttons and now press the Enter button again to enter the software menu. IO is the first item
to be displayed. Scroll up or down to go through the menu items which are highlighted below.
Setup Function Menu

Recommended set-up method

Firstly configure the ML Switch Type. The Type can be set from the display or by viewing the webpage's directly via its IP address; The
Type cannot be set from the Data Manager. The next stage is to network the ML Switch. Once complete configure the desired
Parameters for the ML Switch.

Set/View Type

a. From the function menu scroll to select type and press enter
b. The current type is shown. Use the up/down buttons to scroll through the configuration types.
c. Select the desired number and press enter.
There are 4 types: -
Type Description
1 Degree C/ Bar
2 Degree C/ PSI
3 Degree F/ Bar
4 Degree F/ PSI
Warning
Ensure that all power is
switched off before
installing or maintaining
this product
Display Option
IO View Input and Output States
PArA View or change Parameters
ID View or change ID
tyPE View or change Controller Type
nEt View or change the Network Settings
SoFt View the Software version
ESC Escape the menu
IO
PArA
ID
type
Net
Revision 1.2D
Explained in
Paragraph
Page 14 of 17
