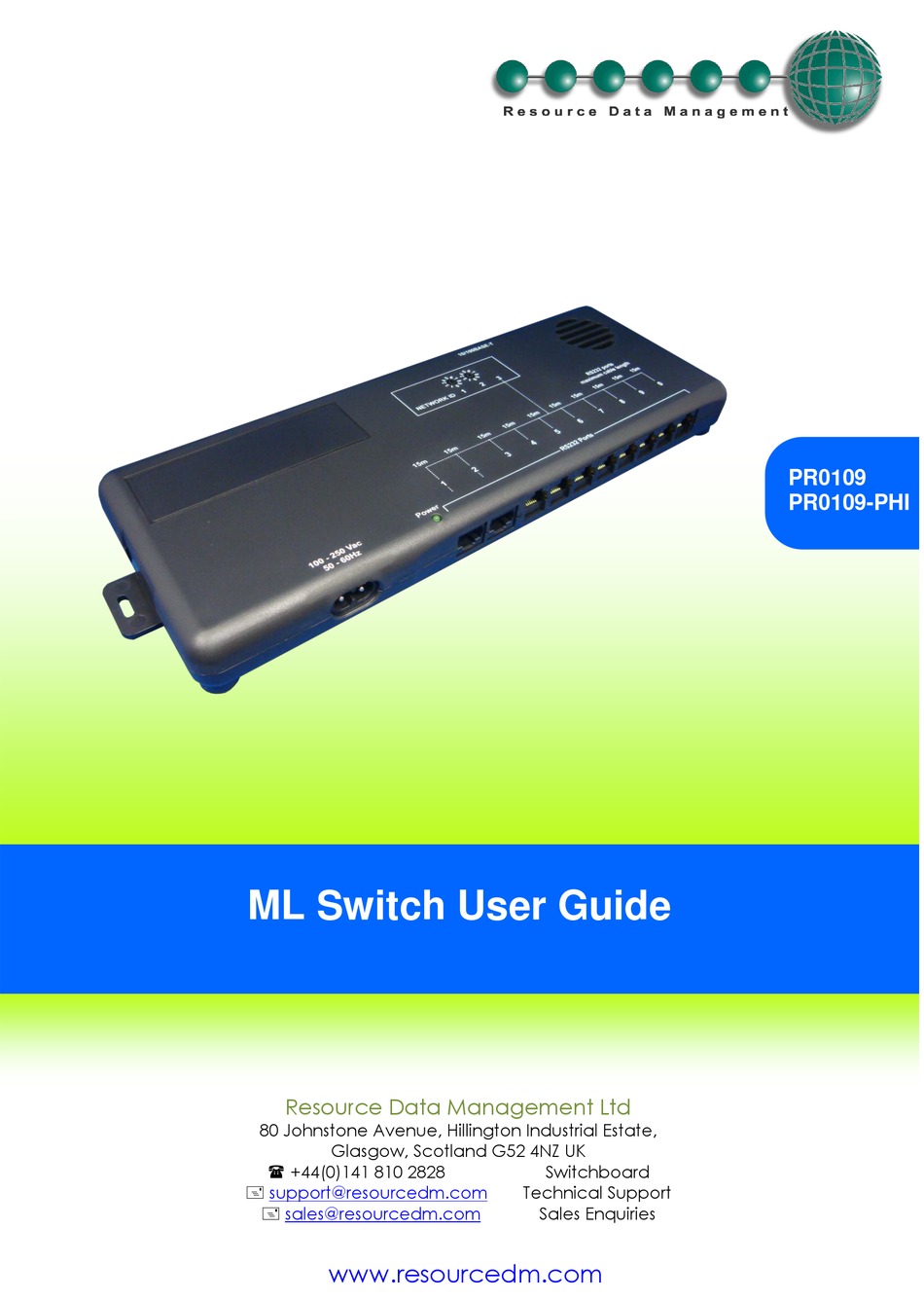

  • Page 1 PR0109 PR0109-PHI ML Switch User Guide Resource Data Management Ltd 80 Johnstone Avenue, Hillington Industrial Estate, Glasgow, Scotland G52 4NZ UK  +44(0)141 810 2828 Switchboard support@resourcedm.com Technical Support  sales@resourcedm.com Sales Enquiries  www.resourcedm.com...
  • Page 2: Table Of Contents

    Connection to another ML Hub/Switch or Other Ethernet Hub/switch ............5 Connection to a Data Manager/Director ......................5 10/100 Base T connectors ..........................5 Network ID ................................5 PR0109-PHI USER GUIDE ..........................6 ML Switch Type ..............................6 Parameters ................................. 8 Parameters Description: ..........................9 Input/Output table............................
  • Page 3: Ml Switch

    Description The ML Switch (PR0109) is a device that allows up to 10 RDM ML controllers to be connected to an IP network, without the need for individual IP ML modules. There are 10 RS232 connections for linking to 10 ML controllers. There are 3 standard Ethernet Switch (10/100baseT) connections for other network devices.
  • Page 4: Top View

    ML Switch User Guide Top View Connection to ML Controllers: Network Configuration Network Compatibility New ML Switch and IP Modules will be labeled identifying software version. New ML Controllers will not log on to network using pre 1.2 versions of ML Switch and IP Modules. Controllers with the following label will only log on to network using ML Switch or ML IP Module with software version 1.2 or higher.
  • Page 5: Rs232 Lead Lengths

    ML Switch User Guide RS232 Lead Lengths RS232 patch lead maximum length must not exceed 15 metres. (Ports 1 - 10) The 3-character address that will be seen on the system front end is determined by the position of the two Network ID rotary switches and the port the controller has been connected to, unless the connected controller has its own network ID rotary switches, in which case the controller ID will override the switch settings.
  • Page 6: Pr0109-Phi User Guide

    PR0109-PHI user guide The PR0109-PHI hardware version of the ML Switch allows for EEV control on an island by island basis. It also allows for the use of the energy feature trim control which pulses the trim relay of a ML case controller based on the actual shop floor humidity therefore minimising energy usage.
  • Page 7 ML Switch User Guide Click on “Configure” to set the type: - Then click “Type” Use the drop-down selection to select the type required and then click “Set Type” Parameters can be configured using the connection as illustrated above or through the ML Display, if fitted, or via the normal Data Manager change parameter routes.
  • Page 8: Parameters

    ML Switch User Guide Parameters Number Parameter Range Bar (psi) Step Units Default Bar (psi) P-01 Refrigerant None None R13b1 R114 R134a R142B R227 R401 R401A R401B R402 R402A R402B R404A R407A R407B R407C R500 R502 R503 R507 R717 R290 (Propane) R744 P-02 Span...
  • Page 9: Parameters Description

    ML Switch User Guide Parameters Description: Number Parameter Description P-01 Refrigerant Select the gas type used within the refrigeration system. P-02 Span Total range of transducer* P-03 Offset Value below zero* P-04 Glide Glide characteristic (Offset to Evap Temperature) P-05 Pressure Type Select between Absolute or Gauge pressure P-11...
  • Page 10: Input/Output Table

    ML Switch User Guide Input/Output table Number Range Units Bar (psi) / I-01 Evap Press -3.4 to 50 (-49.3 to 725.0) Bar (psi) I-02 Evap 1 Press -3.4 to 50 (-49.3 to 725.0) Bar (psi) I-03 Evap 2 Press -3.4 to 50 (-49.3 to 725.0) Bar (psi) I-04...
  • Page 11: Eev Control Operation

    ML Switch User Guide EEV Control Operation Ensure the transducer is correctly connected and the jumper is in the Pressure position. Once the Switch has been correctly setup, it will pass values to each of the controllers connected to ports 1 through 10. In an EEV application the evaporator in temperature probe reading for a case controller can be obtained from the ML Switch on which the controller is connected.
  • Page 12: Humidity Control Operation

    ML Switch User Guide Humidity Control Operation To utilise this feature a Humidity/Temperature Display is required (PR0445). Connect the Humidity/temperature display to the display port on the ML Switch. The control algorithm will use the humidity reading from the display in calculating the percentage at which the trim relays are to be pulsed.
  • Page 13: Front Panel Features (Pr0445)

    ML Switch User Guide Front Panel Features (PR0445) 4 Character LCD Down Button Enter Button # Button Up Button Display: The display fits a standard UK single socket pattress. Enter Button: Button used to enter/confirm values after a change. Up Button: When in the software menu, the up button is used to scroll up through the menu items.
  • Page 14: Recommended Set-Up Method

    ML Switch User Guide Setup Mode Setup through front buttons To enter the software menu for setup mode, hold the Enter and Down buttons together for approximately 3 seconds until the message “Ent” appears on the display. Release both buttons and now press the Enter button again to enter the software menu. IO is the first item to be displayed.
  • Page 15: Set/View Parameters (This Can Be Achieved At The Network Front End)

    ML Switch User Guide Set/View Parameters (This can be achieved at the network front end) From the function menu scroll to select PArA Pressing Enter while PArA is displayed will enter the parameter menu. The first parameter option will be displayed as P- 01.
  • Page 16: Ip-R (Ip Address Issued By The Dhcp Server)

    ML Switch User Guide IP-r (IP Address issued by the DHCP server) To configure the ML Switch for IP-r, set the two rotary switches to give the ML Switch unique identifier. The ML Switch should then be connected to the network. nEt.
  • Page 17: Specification

    ML Switch User Guide Specification Power requirements: Supply Voltage Range: 100 - 240 Vac ±10% (Mains version) Supply Frequency: 50 - 60 Hz (Mains version) Typical supply current: <500 mAmps Maximum supply current 650mA Operating temperature range: C to +50 Operating Humidity: 80% maximum Storage temperature range:...
