Mercury Switch User Guide
Description
The Mercury Switch (PR0018) is a device that allows up to 10 RDM Mercury controllers to be connected to an IP network, without the
need for individual IP Futura modules. There are 10 RS232 connections for linking to 10 Mercury controllers. There are 3 standard
Ethernet Switch (10/100baseT) connections for other network devices. The Ethernet ports are self configuring for uplinks and standard
10/100 Base T device connections.
As well as the Switch function there is the option for Island EEV control. This control can be achieved by using a transducer connected to
the Mercury Switch 4-20mA input or from a remote Suction pressure reading sent across an IP network from a Mercury Plant Pack
controller. Island trim heater control can also be achieved through the display port using a humidity temperature display (PR0445). To
utilise either of these features then the PR0018-PHI build option would be required.

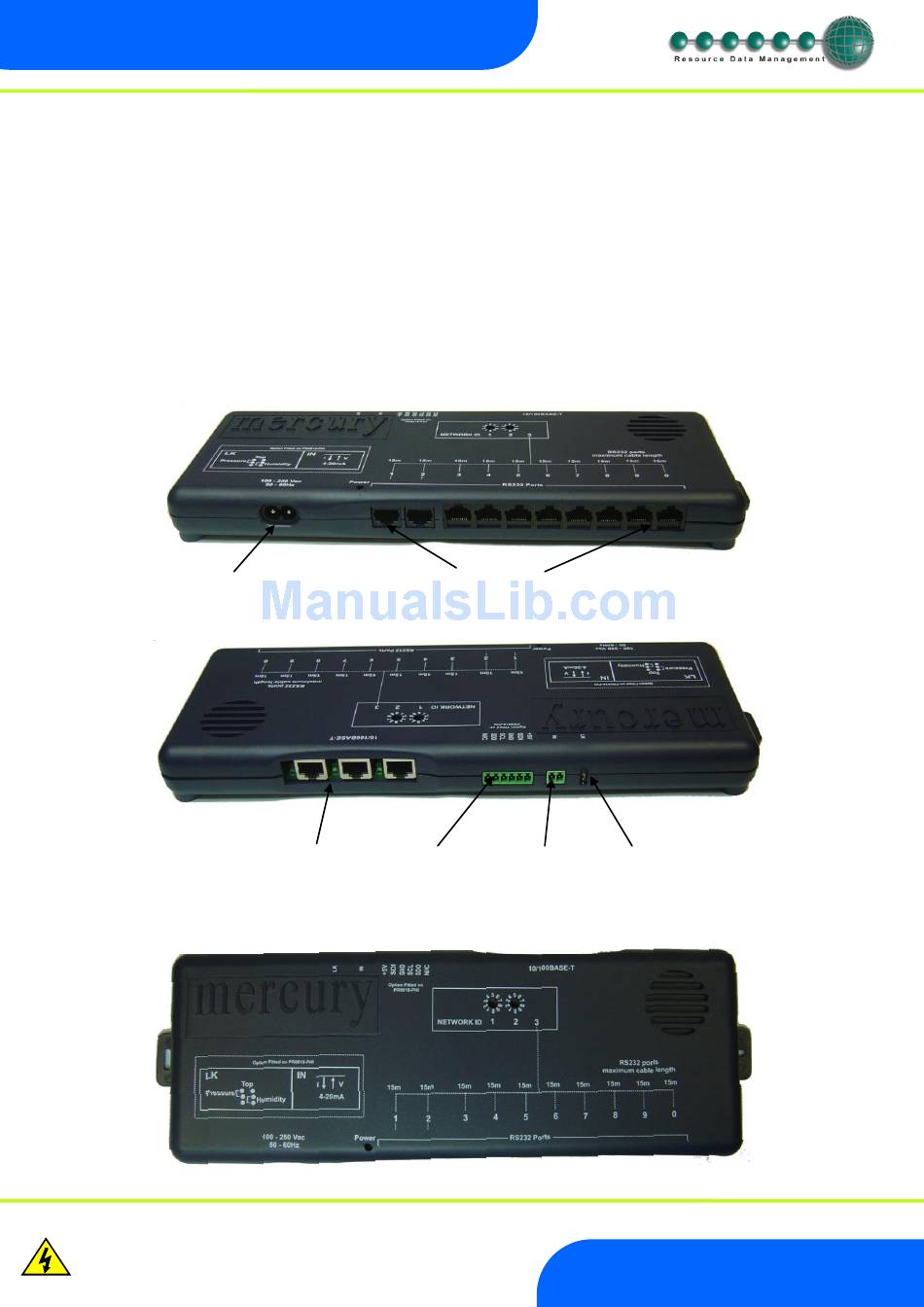

Front View
Mains connector
Rear View
Note:- The display port, mA input and mA input selector are fitted on the PR0018-PHI only.The mA input is available for Pressure
applications only, for Humidity please use a PR0445 connected to the display por
Top View
Warning
Ensure that all power is
switched off before
installing or maintaining
this product
The Mercury Switch
From Resource Data Management
10 x RS232 Ports for direct connection to RDM controllers
3 x IP ports
Display port
Revision 2.1D
mA Input
mA input selector
www.resourcedm.com
