ML Switch User Guide

Front Panel Features (PR0445)

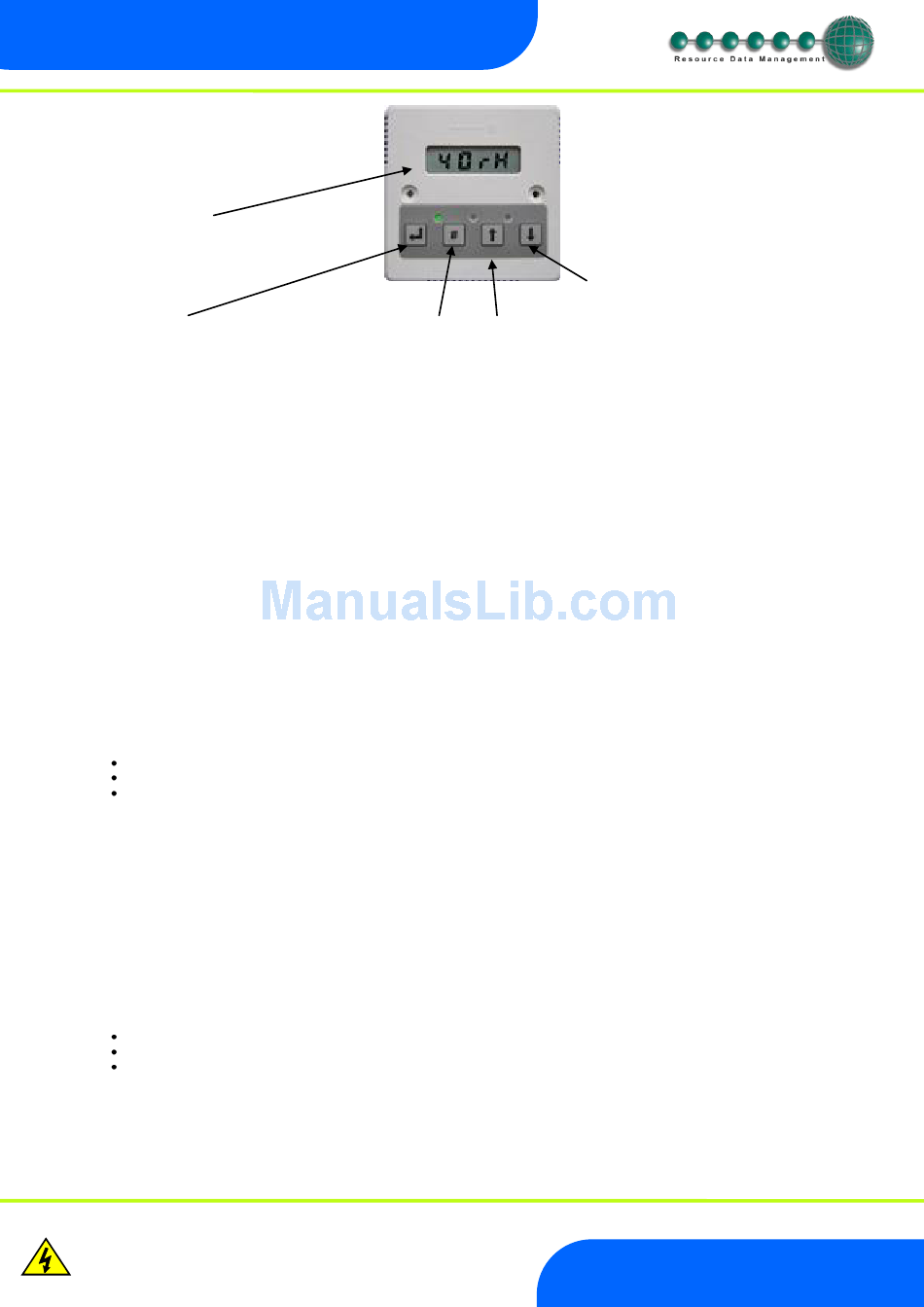

4 Character LCD
Enter Button
Display:
The display fits a standard UK single socket pattress.
Enter Button:
Button used to enter/confirm values after a change.
Up Button:
When in the software menu, the up button is used to scroll up through the menu items.
Down Button:
When in the software menu, the down button is used to scroll down through the menu items
# Button:
No function
Network LED:
Green LED used to indicate network Status:
Off
Flashing Attempting to Log on to network
Steady
Amber LED:
No function
Alarm LED:
Red LED used to indicate an alarm status.

Setting up the ML Switch via the Display

Access to configure the ML Switch can be achieved by 3 ways.
Through the front mounted buttons on the display
Through the RDM Data Manager
Across an IP network
Warning
Ensure that all power is
switched off before
installing or maintaining
this product
# Button
No network attached
On-line
Revision 1.2D
Down Button
Up Button
www.resourcedm.com
Page 13 of 17
