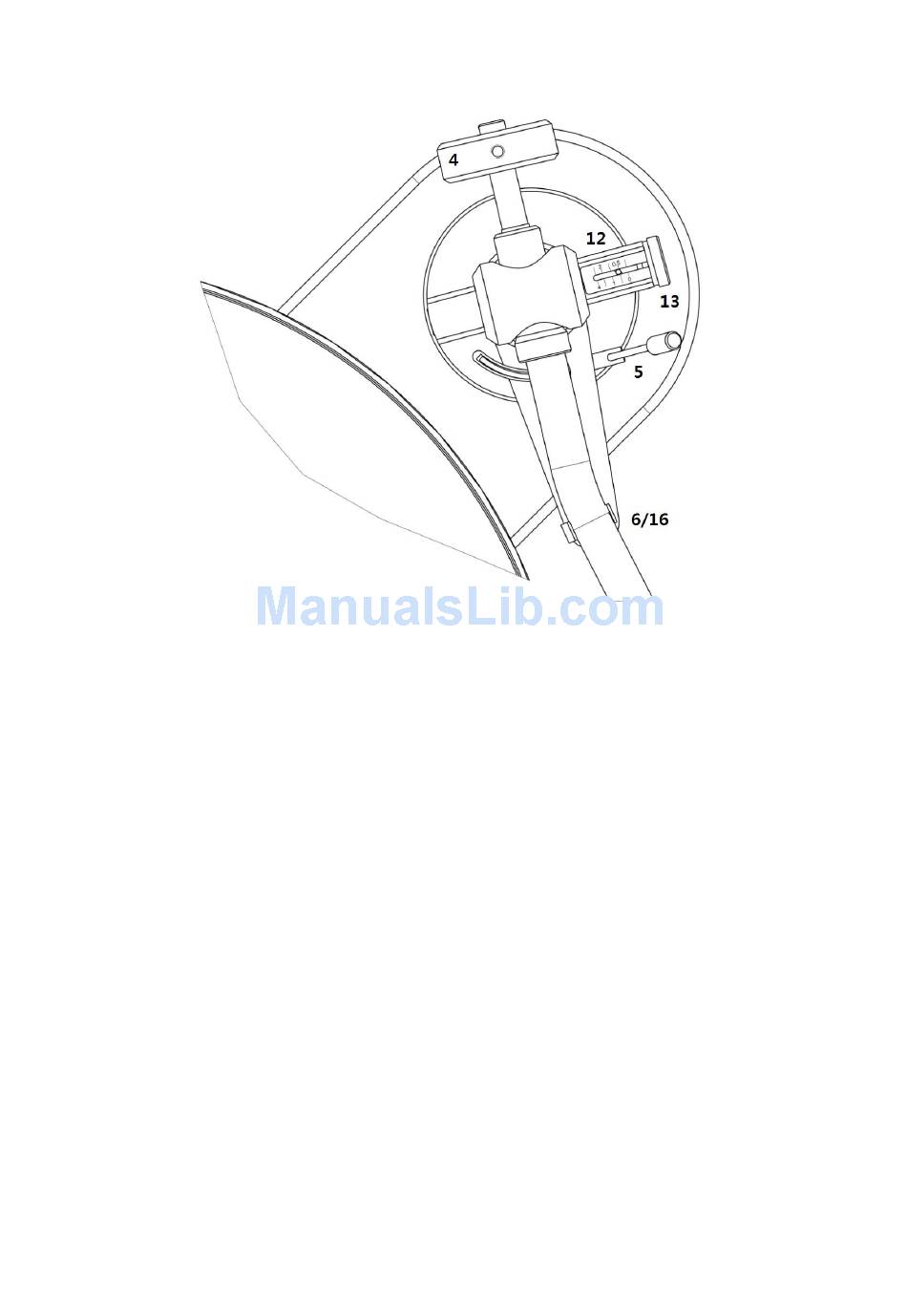

Controls, features and connections

1/11 Power switch, motor unit with stepped drive pulley
2 Drive belt *
3 Platter
4 Tonearm counterweight *
5 Tonearm lift lever
6/16 Tonearm rest and removable transport lock
7 Tonearm tube
8 Power supply socket
9 Phono output sockets and earth connection
10 Magnetic anti-skating mechanism
12 Magnetic anti-skating scale
13 Magnetic anti-skating adjustment mechanism
14 Headshell with finger lift
Connection cable (not shown)*
Power supply (not shown) *
Stylus pressure gauge - white plastic instrument with mN scale (not shown) *
Hexagonal key (not shown) *
