Summary of Contents for Partner CD-70

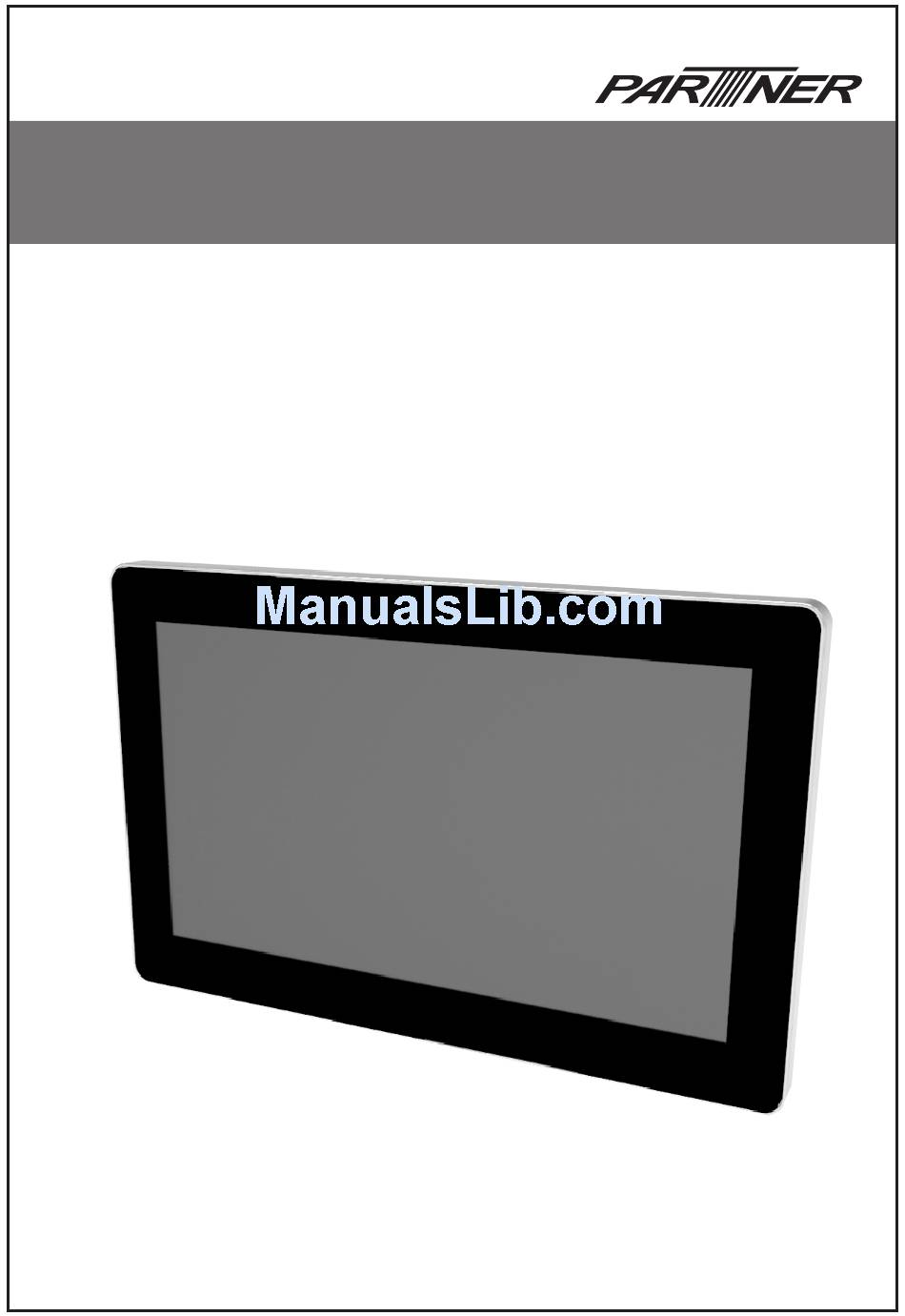

- Page 1 CD-70 USB Display User Manual...
-
Page 2: Table Of Contents
CONTENTS CHAPTER 1 SAFETY �������������������������������������������������������������������3 CHAPTER 2 INTRODUCTION �������������������������������������������������������5 CHAPTER 3 INSTALLATION ���������������������������������������������������������7 CHAPTER 4 MOUNTING ������������������������������������������������������������10 CHAPTER 5 OPERATION ���������������������������������������������������������� 11 CHAPTER 6 TECHNICAL SUPPORT ������������������������������������������16... -
Page 3: Chapter 1 Safety
CHAPTER 1 SAFETY PRECAUTIONS Follow all warnings, precautions and maintenance as recommended in this user manual to maximize the life of your unit and prevent risks to user safety. See the Safety & Maintenance chapter for more information. This manual contains information that is important for the proper setup and maintenance of the unit. Before setting up and powering on your new USB display, read through this manual, especially the Installation, Mounting, and Operation chapters. - Page 4 LEGISLATION AND WEEE SYMBOL 2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components. The crossed-out wheeled bin symbol on the device means that it should not be disposed of with other waste at the end of its working life.
-
Page 5: Chapter 2 Introduction
CHAPTER 2 INTRODUCTION Product Description Project Name Spec Description 7” Resolution: 800x480 Brightness: 350nits LED Panel Contrast Ratio: 500:1(typ) Response Time:25 ms (typ) Lifetime: 20,000hours DL115 Single core Controller (Display Link) Max Resolution: 1024x600 SDAM on board Memory 256Mb(16Mx16) USB transfer board Input USB 2.0 Output... -
Page 6: Mechanical Specification
Mechanical Specification Item Min� Typ� Max� Unit Horizontal (H) 204.5 205.5 USB Display Size Vertical (V) 134.7 135.5 Depth (D) 22.9 23.1 23.3 Weight Mechanical Dimension... -
Page 7: Chapter 3 Installation
CHAPTER 3 INSTALLATION Unpacking the USB Display Open the carton and verify that the following items are present: 1 USB display with USB or JST cable. 4 M4x8mm screws Minimum Computer Hardware Requirements For 1-2 USB displays, business usage, productivity target. This may not provide full frame rate DVD playback at full screen. - Page 8 Installing the DisplayLink Software Drivers The DisplayLink technology enables video-over-USB. It allows your USB display to use one USB cable for power, video. 1. This USB Display can not function as Primary display during boot- up. An additional display must be used to install the DisplayLink driver.
- Page 9 4. Click I Accept. The following screen appears during install The screen may flash or go black during the install. No message will be shown at the end of the install. NOTE 5. No message will be shown at the end of the install. Reboot your computer after the install is complete. After the USB display is plugged in via USB cable, the USB display shape icon will appear in the system tray and the following message will be displayed:...
-
Page 10: Chapter 4 Mounting
CHAPTER 4 MOUNTING Rear VESA Mount A four-hole 75x75mm mounting pattern for M4 screws is provided on the rear of the USB display... -
Page 11: Chapter 5 Operation
CHAPTER 5 OPERATION Power To turn the USB display on or off, press the USB display power button on the back of the USB display once. The system consumes low power when in SLEEP and OFF modes. Video 1. Display options can be selected by pressing the USB display shape icon in the system tray. - Page 12 2. In Extend Mode (default), the USB display acts as an extension of the primary display desktop. The reso- lutions of the USB display and the primary display are maintained. 3. In Mirror mode, the same video resolution, color depth and refresh rate are sent to both displays. The video resolution that is sent depends on the primary display’s native resolution.
- Page 13 Setting the USB display mode: 1. Click the DisplayLink icon on the taskbar. The menu appears as shown below.
- Page 14 2. Select an option from the menu, using the following table for the options available. Menu Option Sub-menu option Description Screen Resolution Displays a list of available resolutions. Normal No rotation is applied to the USB display Rotated Left Rotates the extended or mirrored display by 270 degrees. Screen Rotation Rotated Right Rotates the extended or mirrored display by 90 degrees.
- Page 15 1. Find the USB display icon on the tool bar, and press that right button of the mouse. 2. Select the “USB Display” first, and then select the “Screen Rotation”. 3. Select the direction you want, ”Normal, Rotated Left, Rotated Right or Upside-Down” Partner Tech Utility can’t support “Rotated Left” and “Rotated Right”. NOTE...
-
Page 16: Chapter 6 Technical Support
CHAPTER 6 TECHNICAL SUPPORT If you are experiencing trouble with your USB display, refer to the following suggestions. If the problem persists, please contact your local dealer. Solutions to Common Problems Problem Suggested Troubleshooting Check that the USB cable is correctly attached to the USB display and The USB display does not the computer.
