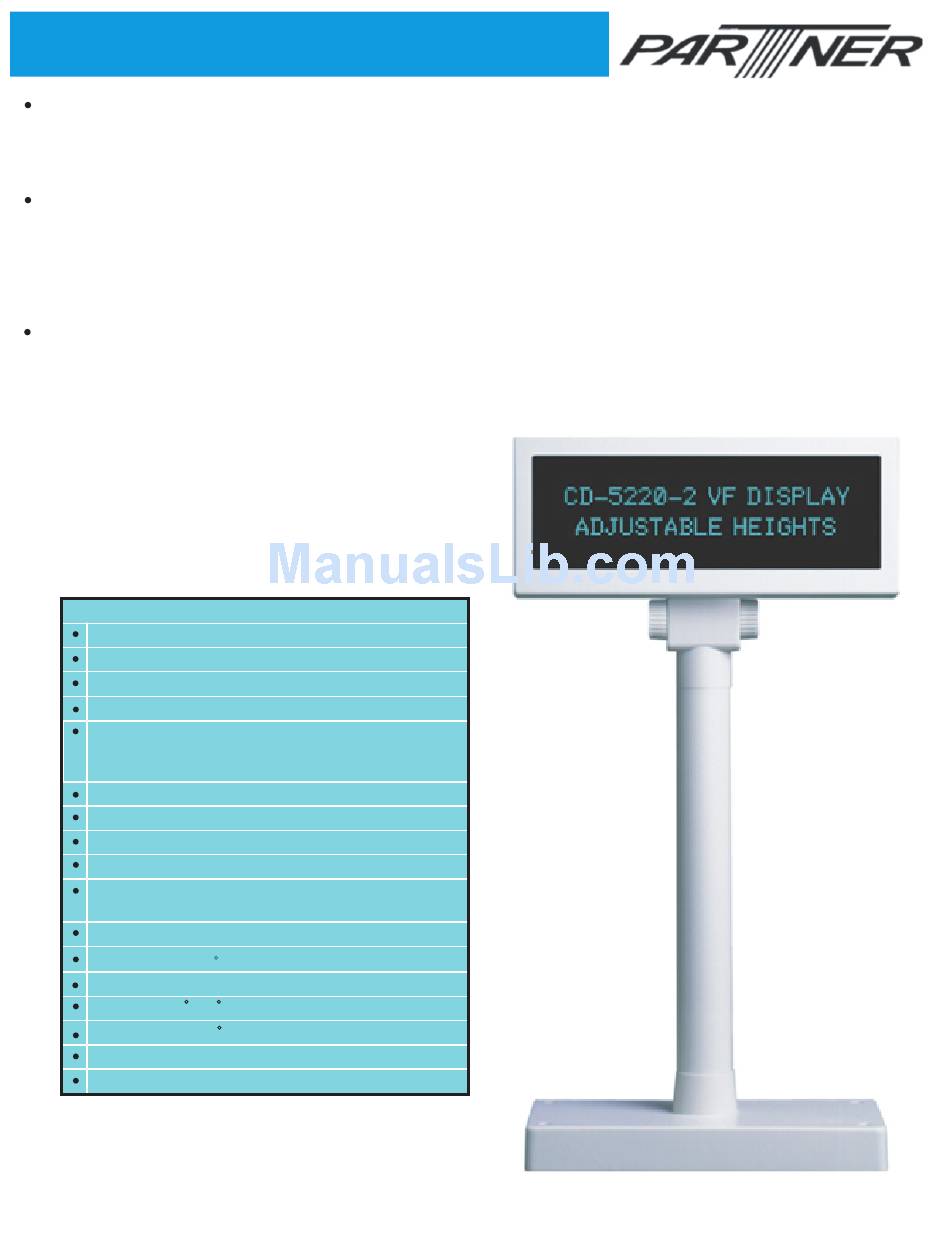

CD - 5220C Customer Display

Large and easy to read characters

The CD-5220 customer pole display uses a vacuum fluorescent display (VFD) tube presenting bright and easy to
read characters. Because of the VFD technology, the display is viewable from a wide angle. Customers will
appreciate not having to remain in a fixed viewing position to see the display.

Universal character font table, 4 user selectable height

The CD-5220 customer pole display has two pole sections giving you the choice of four different display heights.
The display can be rotated up to 270 degrees. The head of the display can tilt up to 35 degrees maximum. The
combination of these features gives you the flexibility to tailor the display position to your unique application. With
two lines of twenty characters, the CD-5220 can display 96 alphanumeric messages with 13 international
characters.

User-friendly connections

The CD-5220 customer pole display uses an easy to connect RS-232C serial port connection with available
communication speeds of 4800 or 9600 bps. The CD-5220 pass-through function allows you to connect another
serial device by sharing one single serial port on the host system. The CD-5220 also offers a variety of
emulation modes including Epson, Aedex, Emax, and Ultimate.

VFD CUSTOMER DISPLAY

Display method : Vacuum fluorescent display
Number of characters : 40 characters (20 columns X 2 lines)
Display color : blue green
Brightness : 700 cd / m
13 international character sets including US, French,
Germany, Spanish, etc. One set downloadable set-up
parameters and character fonts (option)
Character type : 96 alphanumeric
Character font : 5 X 7 dot matrix
Character size : 9.0 mm 5.25 mm
Character pitch : 8.3 mm
Power supply voltage :
12VDC + / -5% (optional 5V or 24V)
Interface : Serial pass through
Power consumption : 5W
MTBF : 25,000 hours
View angle : 8 ~ 35
Rotation angle : 270 maximum
4 user selectable heights
FCC, CE, EMC Approved
