Partner CD-8220 User Manual

Lcd 2 x 20 display
Hide thumbs

Advertisement

Quick Links

Download this manual
CD 8220

User Manual

LCD 2 x 20 Display

Advertisement

loading
Need help?

Need help?

Do you have a question about the CD-8220 and is the answer not in the manual?

Questions and answers

Related Manuals for Partner CD-8220

Summary of Contents for Partner CD-8220

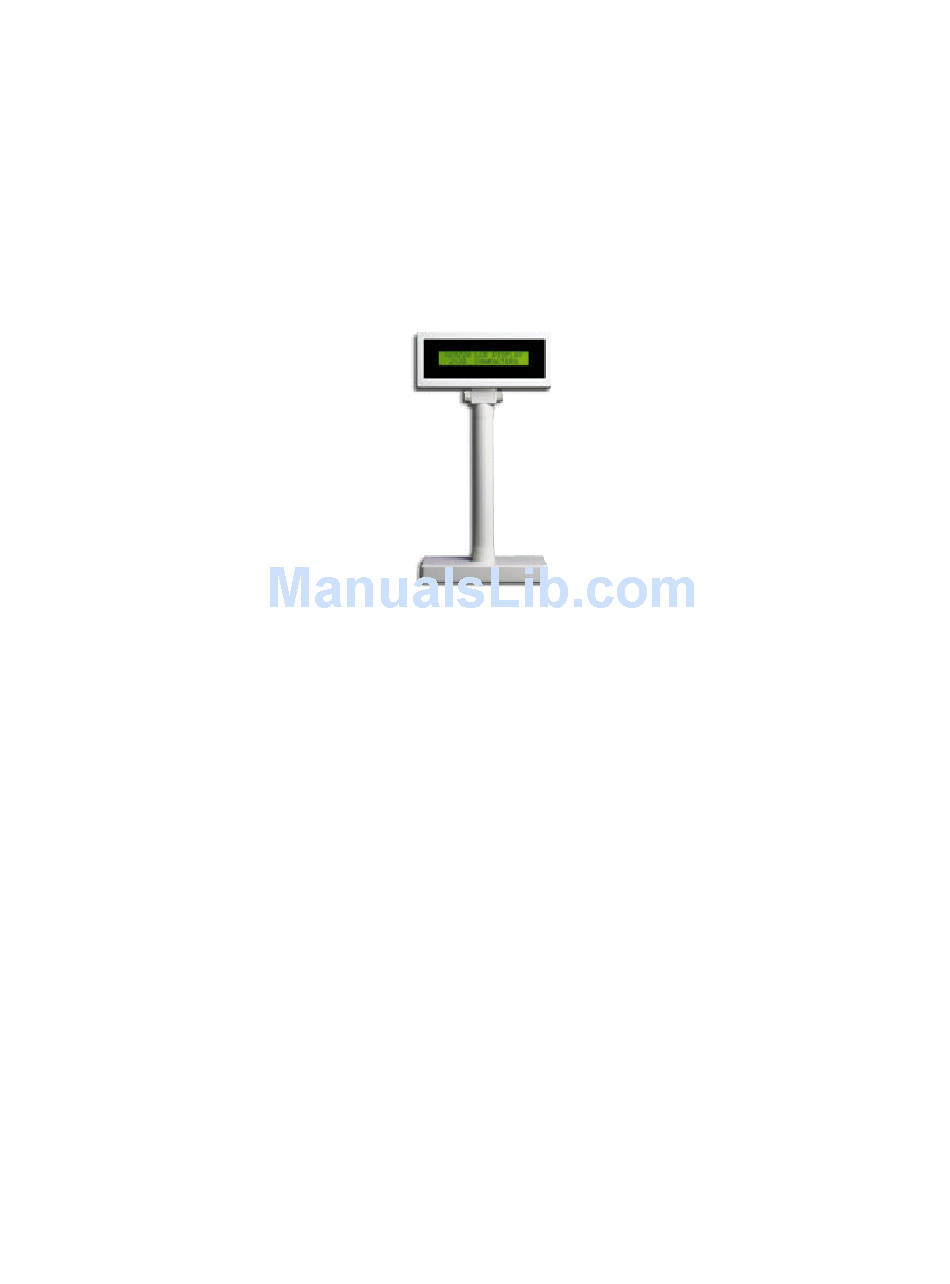

  • Page 1: User Manual

    CD 8220 User Manual LCD 2 x 20 Display...
  • Page 2 CD8220 CUSTOMER DISPLAY INDEX FEATURES ............... . . 3 ORDER INFORMATION .

  • Page 3: Features

    CD8220 CUSTOMER DISPLAY 1. FEATURES 20 columns x 2 lines. Display panel is adjustable both by tilting vertically and rotating horizontally. Uses external dipswitches to configure baud rate and emulation mode. Command emulation modes include: PTC, Epson, ADM787, ADM788, Aedex, Emax, DSP 800 and Ultimate. Display windowing commands are available using PTC or Epson command sets.

  • Page 4: Order Information

    CD8220 CUSTOMER DISPLAY 2. ORDER INFORMATION CD8220 T 12 110 PT Model No. Base T: PTC rectangular base C: space-saving round base (with metal plate) Pass through function PT: with pass through cable <Blank>: without pass through cable Power Adapte r N: without power adapter 110: 110V AC power adapter EU: 230V AC power adapter...

  • Page 5: General Specifications

    CD8220 CUSTOMER DISPLAY 3. GENERAL SPECIFICATIONS ITEM Display method Display color Number of characters Character type Character size Power supply Power consumption MTBF (power on time) Dimensions Viewing angle Rotation angle Weight Operating Environmental Condition Storage Safety CD8220 Liquid Crystal Display Yellow Green 40 characters (20 columns x 2 lines) 96 alphanumeric...

  • Page 6: Interface Specifications

    CD8220 CUSTOMER DISPLAY 4. INTERFACE SPECIFICATIONS 4.1 Serial port (RS232C) 4.1.1 Serial port (RS232C) communication A. This interface specification is based on EIA RS232C baud rate 4800 or 9600 BPS, 8 data bits, none parity, 1 or more stop bits. B.
  • Page 7 CD8220 CUSTOMER DISPLAY (c) RS232C to PC/HOST connector: D-sub 25 pin female pin assignment Pin No. Signal (d) RS232C to printer connector: D-sub 9 pin male pin assignment Pin No. Signal Direction From printer to PC/Host Input Output From PC/HOST to printer Host From PC/HOST to printer Input Output...
  • Page 8 CD8220 CUSTOMER DISPLAY 4.1.3 Serial port interface to the space-saving base portion (a) Power cable connector: DC jack (5.5/2.1) (b) RS232C interface pass through cable connector: D-sub 25 pin female pin assignment Pin No. Signal (c) RS232C interface to PC/HOST cable, PC/HOST side connector pin assignment Connector type: D-sub 9 pin (Male) Pin No.

  • Page 9: System Command Details

    CD8220 CUSTOMER DISPLAY SYSTEM COMMAND DETAILS 5.1 Baud rate STX 05 B n ETX /Set baud rate and keep it with EEPROM/ ASCII Format STX 05 B n ETX Dec. Format [02][05][66] n [03] Hex. Format [02h][05h] [42h] n [03h] 30h<n<37h Description Change the display communication baud rate.
  • Page 10 CD8220 CUSTOMER DISPLAY 5.4 Reset EEPROM STX 05 07 n ETX Reset EEPROM ASCII Format STX 05 07 n ETX Dec. Format [02][05][07][n][03] Hex. Format [02h][05h][07h][n][03h] Description This command will reset the content of EEPROM (eg. demo scroll data, user-define character, baud rate setting.) n=31h clear all EEPROM contents n=32h clear upper line data message...

  • Page 11: Command Modes

    CD8220 CUSTOMER DISPLAY 6. COMMAND MODES 6.1.1 PTC Emulation Mode Command Code description (hex) ESC DC1 1B 11 ESC DC2 1B 12 ESC DC3 1B 13 ESC Q A ...CR 1B 51 41 [n ]x20 0D ESC Q B ...CR 1B 51 42 [n ]x20 0D ESC Q D ...CR 1B 51 44 [n ]x20 0D...
  • Page 12 CD8220 CUSTOMER DISPLAY Set international font for CD8220 (Table 6-2) International font set International font set American German Italian Japanese British French Spanish 6.1.2 ADM787/788 Emulation Mode Command Code description (hex) SLE1 SLE2 10 n 11 n 12 n 6.1.3 UTC-Standard Emulation Mode Command ESC d 6.1.4 UTC-Enhanced Emulation Mode...
  • Page 13 CD8220 CUSTOMER DISPLAY 6.1.5 AEDEX Emulation Mode Command Code description (hex) ! # 1 ...CR 21 23 31 [data x 40] ! # 2 ...CR 21 23 32 [data x 40] ! # 4 ...CR 21 23 34 [data x 40] ! # 5 ...CR 21 23 35 hh ‘:’...
  • Page 14 CD8220 CUSTOMER DISPLAY 6.1.7 EPSON ESC/POS Emulation Mode Command Code description(hex) US LF 1F 0A US CR 1F 0D US B 1F 42 US $ x y 1F 24 x y 1<x<20,y=1,2 US X n 1F 58 n 1<n<4 US E n 1F 45 n 0<n<255 ESC @...
  • Page 15 Set international font for ESC/POS (Table 6-11) International font set International font set American Spanish French Japanese German Norwegian British Danish II Danish I Slavonic Swedish Russian Italian Reserved Table 6-10 Select code for ESC/POS (Table 6-12) n International font set (80H-FFH) Page 0,(PC437:U.S.A.,standard Europe) Page 1,(Katakana for Japan ) Page 2,(PC850:multilingual)
  • Page 16 CD8220 CUSTOMER DISPLAY 6.2 CD8220 standard command details ESC DC1 /Overwrite mode/ ASCII Format ESC DC1 Dec. Format [027][017] Hex. Format [1Bh][11h] Description Change the display mode to the overwrite mode. In this mode, the cursor will move rightward and begin from the upper left-end position.
  • Page 17 CD8220 CUSTOMER DISPLAY ESC [ D /Move cursor left/ /Move cursor left/ ASCII Format ESC [ D Dec. Format [027][091][068] Hex. Format [1Bh][5Bh][44h] ASCII Format Dec. Format [008] Hex. Format [08h] Description When the current cursor is at the left-end position, this command operates differently depends on the display mode.
  • Page 18 ESC [ B /Move cursor down/ /Move cursor down/ ASCII Format ESC [ B Dec. Format [027][091][066] Hex. Format [1Bh][5Bh][42h] ASCII Format Dec. Format [010] Hex. Format [0Ah] Description Move the cursor down one line. When the cursor reached the lower line, this command operates differently depending on the display mode.
  • Page 19 ESC @ /Initialize display/ ASCII Format ESC @ Dec. Format [027][064] Hex. Format [1Bh][40h] Description The data in the input buffer will be cleared and reset from default. ESC W s x1x2 y /Reset the window/ ASCII Format ESC W s x1 x2 y Dec.
  • Page 20 ESC f n /Select international font/ ASCII Format ESC f n Dec. Format [027][102] n Hex. Format [1Bh][66h][n] Description Set international font ESC c n /Select fonts / ASCII Format ESC c n Dec. Format [027][099] n Hex. Format [1Bh][63h][n] Description Select fonts ESC = n...
  • Page 21 ESC % n /Reset user defined character set/ ASCII Format ESC % n Dec. Format [027][037] n Hex. Format [1Bh][25h][n] Description When n=1, user-defined characters are selected. When the user-defined characters are not defined by the ESC & command, the internal character set will be displayed. When n=0, user-defined characters are cancelled and the international character set is selected.

  • Page 22: Character Set

    CD8220 CUSTOMER DISPLAY CHARACTER SET 1. Control code set 2 U.S.A. font set CODE NULL BS,MD8 SLE1 RS,SLE2 CODE US,SF2...
  • Page 23 CD8220 CUSTOMER DISPLAY 3. International character selection (Indicate character selection by dip switch or command) International FRANCE GERMANY U.K. DENMARK I SWEDEN ITALY SPAIN JAPAN NORWAY DENMARK II SLAVONIC RUSSIA ASCII CODE 23 24 40 5B 5C 5D 5E 60 7B 7C 7D 7E...
  • Page 24 CD8220 CUSTOMER DISPLAY 4. PC-437 Standard European international font set 5. PC-850 (multi-lingual international font set)
  • Page 25 CD8220 CUSTOMER DISPLAY 6. PC-860 Portuguese international font set 7. PC-863 Canadian French international font set...
  • Page 26 CD8220 CUSTOMER DISPLAY 8. PC-865 Nordic international font set 9. SLAVONIC font set...
  • Page 27 CD8220 CUSTOMER DISPLAY 10. RUSSIA font set 11. KATAKANA font set...
  • Page 28 CD8220 CUSTOMER DISPLAY...
